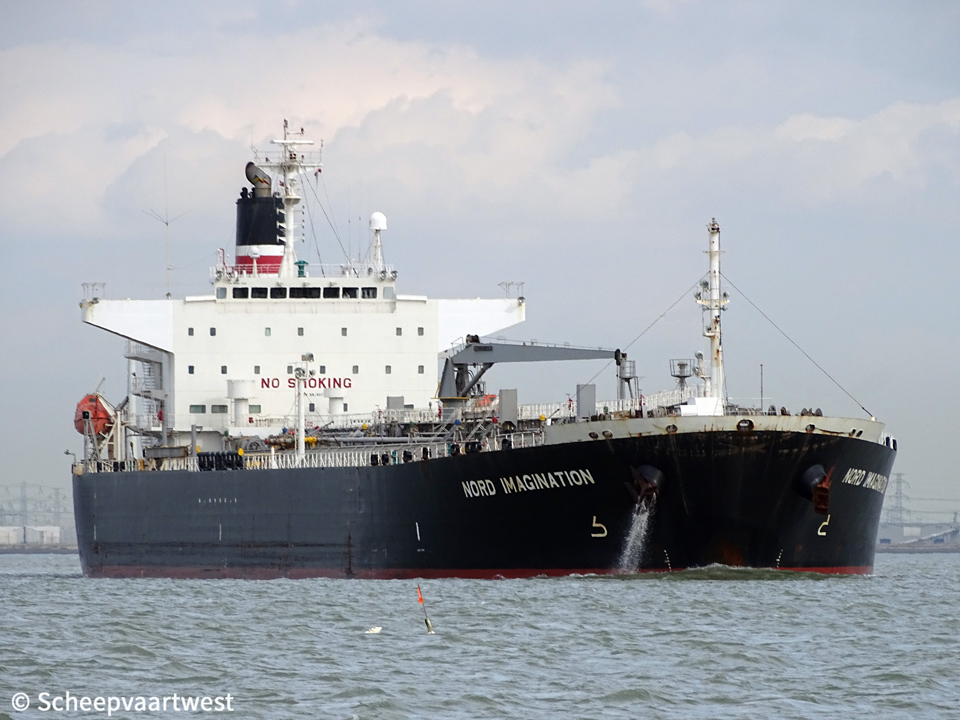

Nord Imagination 01

Westerschelde 29 March 2017

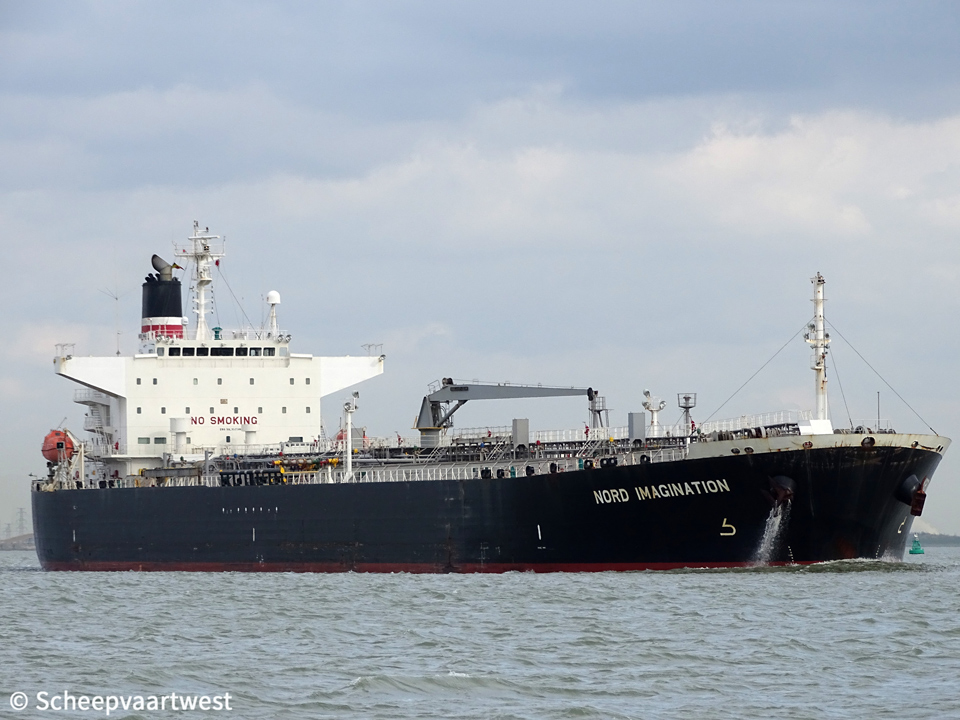

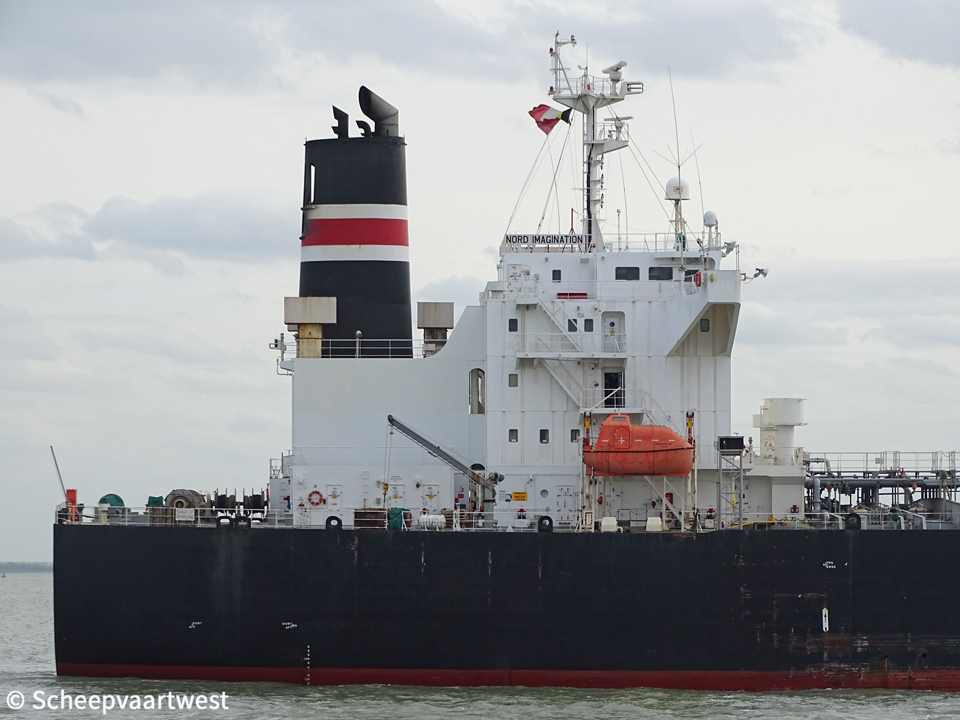

Nord Imagination 02   Nord Imagination 03
Westerschelde 29/03/17   Westerschelde 29/03/17













Name

NORD IMAGINATION

Type

Oil product tanker

IMO-number

9547506

Call sign

3FIA8

Flag

Republic of Panama

Port of registry

Panama City

GT

28.777 t registered

Suez: 30.240,45 t

DWT

Summer: 48.006 t

Winter: 46.644 t

NT

12.680 t registered

Suez: 27.515,1 t

Panama: 23.899,59 t

Displacement

Summer: 58.000 t

Winter: 56.638 t

Length

179,99 m overall

172,00 m between perpendiculars

Breadth

32,20 m extreme

Draught

Summer: 12,62 m

Winter: 12,35 m

Keel to masthead

44,99 m

Air draft

Summer deadweight: 32,37 m

Normal ballast: 37,80 m

Lightship: 42,50 m

Freeboard

Summer: 6.462 mm

Winter: 6.730 mm

Depth

19,05 m moulded

Speed

Ballast: Max: 15,3 knots - Eco: 12,5 knots

Laden: Max: 14,3 knots - Eco: 12,0 knots

Built

2009

Keel laid

19/12/2008

Launch date

25/06/2009

Delivery date

30/10/2009

Builder

Iwagi Zosen Co Ltd.
Kamijima
Japan

Yard number

S-Z270

Hull material

High strength steel

Hull type

Double hull

Bulkheads

Water tight : 8

Oil tight: 8

Main engine

1x Mitsui/MAN B&W 6S50MC-C (Mark-VII) - 6 cylinder combustion engine 9.480 kW at 127,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co.,Ltd. Tamano Works

Propellers

1x Fixed propeller

Manufacturer: Nakashima Propeller Co.,Ltd.

Boilers

1x Natural circulation vertical water tube boiler - 8,0 bar

1x Exhaust gas economizer - 12,0 bar

Manufacturer: Miura Co.,Ltd.

Generators

3x Daihatsu 6DK-20 main diesel generatorsets each 720 kW

Manufacturer: Nishishiba Electric Co.,Ltd.

Number of cargo tanks

18

Cargo tank capacity

98% 52.691,13 m³

100%: 54.892,043 m³

Natural segregation with double valve 98%

Seg#1: 12.354,02 m³ (1 (P & S) / 5 (P & S) / Slop (s))
Seg#2: 13.670,19 m³ (2 (P & S) / 6 (P & S))
Seg#3: 14.628,14 m³ (3 (P & S) / 7 (P & S) / Slop (p))
Seg#4: 13.141,84 m³ (4 (P & S) / 8 (P & S))

Number of slop tanks

2

Slop tank capacity

1.103,64 m³

Pumps

1x Centrifugal ballast pump 1.500 m³/h

4x Centrifugal cargo pumps 1.100 m³/h each

Manifolds

Distance bridge front to centre of manifold: 54,92 m

Bow to centre manifold: 92,38 m

Stern to centre manifold: 87,62 m

Distance between cargo manifold centres: 2.000 mm

Distance ships rail to manifold: 4.600 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 700 mm

Distance main deck to centre of manifold: 2.100 mm

Spill tank grating to centre of manifold: 900 mm

Number of tanks

Ballast: 14

Fuel oil: 4

Fresh water: 4

Sludge: 3

Chain: 2

Diesel oil: 2

Lubricating oil: 2

Waste water: 1

Slop: 1

Tank capacities 100%

Diesel oil: 144,33 m³

Freshwater: 546,9 m³

Fuel oil: 2.221,36 m³

Lube oil: 21,78 m³

Tank ballast: 20.831,19 m³

Lifting equipment

1x Hose handling crane - SWL 10,0 t

Manufacture: Kyoritsu Kikai Co.,Ltd.

1x Provision crane - SWL 0,9 t

1x Provision crane - SWL 2,0 t

Manufacture: Sekigahara Seisakusyo Ltd.

Manager

Norient Product Pool Aps

Technical operator

Thome Ship Management Pte Ltd.
6 Raffles Place, Hong Leong Building, #43-01
Singapore 048581
Republic of Singapore

Commerical operator

Dampskibsselskabet Norden A/S
Norient Product Pool ApS
Strandvejen 52
DK-2900 Hellerup

Denmark

Disponent owner

Dampskibsselskabet Norden A/S
Strandvejen 52
DK-2900 Hellerup
Denmark

Registered owner

La Darien Navegacion SA
53rd E. Street Urbanizacion Marbella MMG Tower 16th Floor
Panama City
Republic of Panama

Latest data adjustment

16 August 2019
