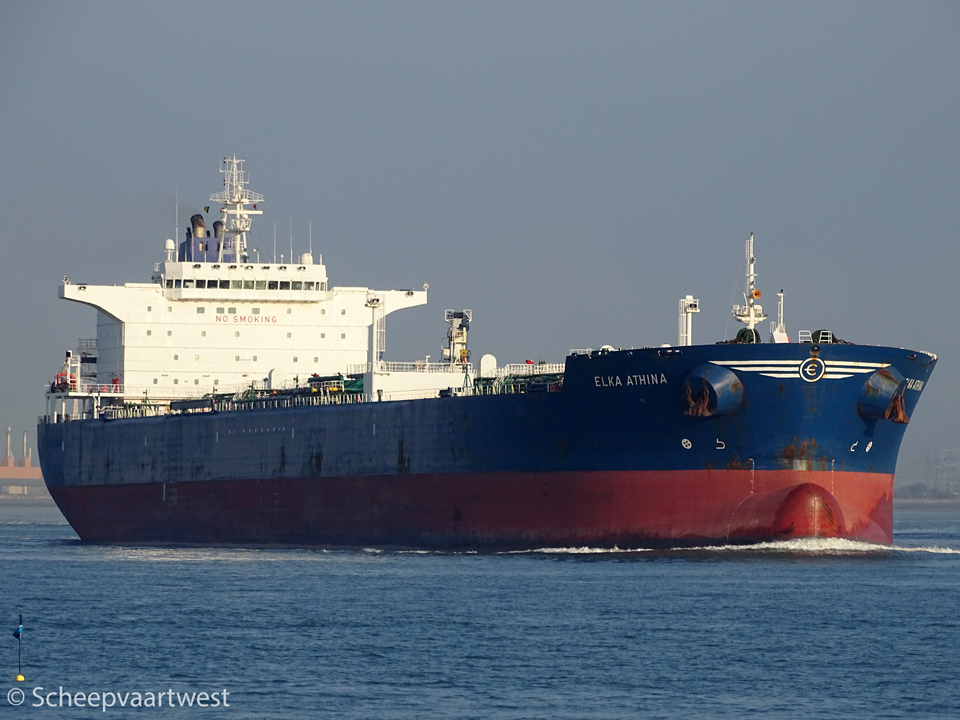

Elka Athina 01

Westerschelde 14 October 2017



Name

ELKA ATHINA

Type

Oil and chemical carrier

IMO-number

9249116

Call sign

SXHU

Flag

Greece (Hellenic Republic)

Port of registry

Piraeus

GT

59.486 t registered

Suez: 59.277 t

DWT

Summer: 101.970 t

NT

30.344 t registered

Suez: 53.272 t

Length

243,6 m overall

235,00 m between perpendiculars

Breadth

42,00 m

Draught

Max: 13,86 m

Freeboard

7.192 mm

Depth

21,00 m moulded

Speed

Max: 15,8 knots

Built

2005

Keel laid

18/12/2003

Launch date

06/06/2004

Date of completion

12/01/2005

Builder

Brodosplit Brodogadiliste Split
Croatia

Yard number

437

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Water tight 5

Oil tight: 10

Non tight: 4

Main engine

1x B&W 6S60MC-C - 6 cylinder combustion engine 13.630 kW at 105,0 rpm

Manufacturer: Brodosplit Tvornica Dizel Motora

Propellers

1x Fixed propeller

Manufacturer: Abbalstom Power Ltd. Elblag - Poland

Boilers

1x Composite boiler - 7,0 bar

1x Auxiliary oil fired boiler - 7,0 bar

Manufacturer: TPK Nova D.O.O.

Generators

4x Main diesel generatorsets each 1.040 kW

Manufacturer: Uljanik Tesu D.D.

Number of cargo tanks

14

Cargo hold capacity 100%

12.6037 m³

Number of slop tanks

1

Number of tanks

Ballast: 14

Fuel oil: 7

Lubricating oil: 6

Fresh water: 3

Hydraulic oil: 2

Sludge: 2

Diesel oil: 2

Chain: 1

Organic compound: 1

Waste water: 1

Tank capacities 100%

Diesel oil: 209;7 m³

Freshwater:913,4 m³

Fuel oil: 2.587,6 m³

Hydraulic oil: 16,2 m³

Lube oil: 148,1 m³

Tank ballast: 40.535,5 m³

Lifting equipment

1x Cargo hose handling crane - SWL 20,0 t

Manufacture: Brodosplit - BSO D.O.O.

1x Engine room crane - SWL 4,0 t

Manufacture: Concrane SRL

1x Monorail provision crane - SWL 4,0 t

Manufacture: Radez D.O.O.

Manager

European Product Carriers Ltd.
Artemisiou 2
Glifada 166 75
Greece

Registered owner

Farewell Investment Inc.
Broad Street 80
Monrovia
Liberia

Latest data adjustment

09 December 2018
