Emerald Shiner - IMO 9289776

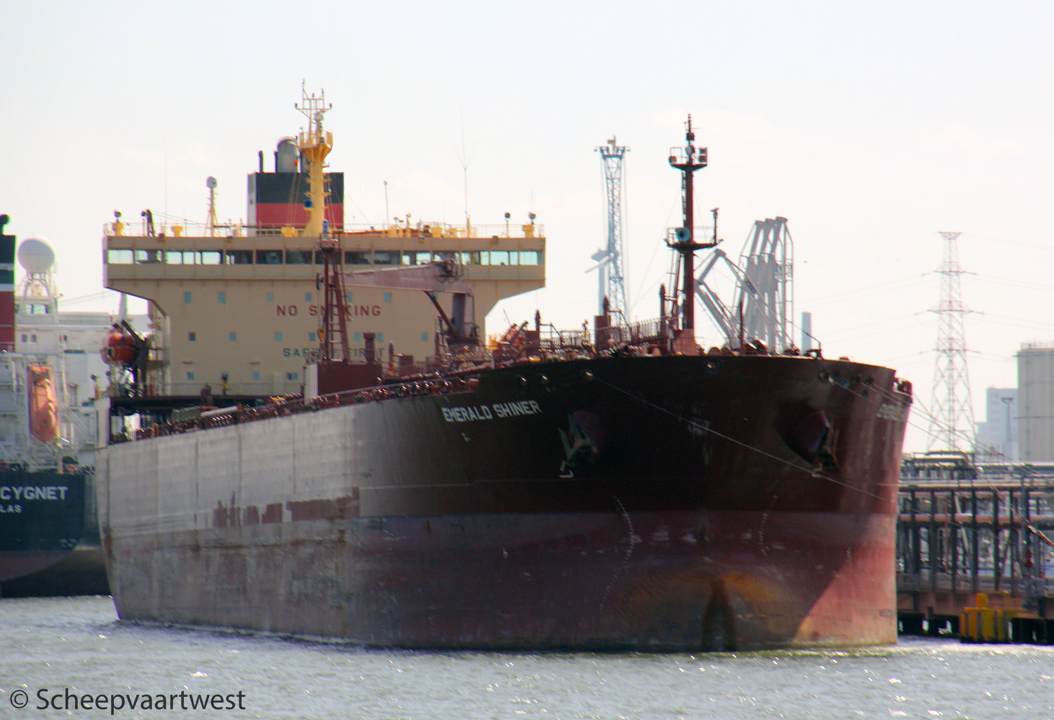

Westerschelde 12 August 2016

Name

EMERALD SHINER

Previous names

2005 - 01/2014 Affinity

Type

Oil product tanker

IMO-number

9289776

Call sign

V7DR4

Flag

Marshall Islands

Port of registry

Majuro

Previous flags

2005 - 2014 Republic of Singapore, Singapore City - Call sign: 9VDT5

GT

42.661 t

DWT

Summer: 73.788 t

NT

21.910 t

Length

228,00 m overall

219,00 m between perpendiculars

Breadth

32,29 m extreme

32,24 m moulded

Draught

14,27 m

Keel to mast end

48,11 m

Depth

20,60 m

Speed

14,9 knots

Built

2005

Keel laid

15/12/2004

Launch date

27/04/2005

Date of completion

05/07/2005

Builder

STX Shipbuilding Co., Ltd.

Jinhae

South Korea

Yard number

1154

Hull material

Steel

Hull type

Double hull

Bulkheads

Transverse: 10

Longitudinal: 3

Main engine

MAN-B&W 7S60MC-C – 2 stroke 7 cylinder 600 x 2.400 mm combustion engine 15.820 kW / 21.509 hp at 105,0 rpm

Propellers

1x Fixed pitch mono-block propeller

Manufacturer: Nakashima Propeller Co., Ltd.

Boilers

1x Auxiliary boiler, exhaust gas heated (Oil Fired)

1x Auxiliary boiler, oil/gas fired (Exhaust)

Manufacturer: KangRim Industries. Co., Ltd.

Generators

3x Cummins KTA19-M3 main diesel generatorsets

Emergency generator

1x Cummins NT855 diesel generatorset

Cargo tank capacity

Liquid: 81.193 m³

Number of cargo pumps

12 + 2 slop tanks

Number of pumps

12x Cargo pumps each 400 m³/h

Tank capacities

Ballast: 30.415,7 m³

Anchor equipment

Length: 660,00 m

Diameter: 78 mm

ISM & commercial manager

Prime Tanker Management Inc.

4, Possidonos Avenue

Kallithea GR 17674

Greece

Registered owner

Emerald Shiner Inc. - Marshall Islands

Care of Prime Tanker Management Inc.

4, Poseidonos Avenue

Kallithea, 176 74 Athens

Greece

Renamed

02/2003 Galatia

Saint Kitts and Nevis, Basseterre - Call sign: V4ZU4

Owner: Hong Shipping & Marine Inc.

Manager: Gatik Ship Management

Latest data adjustment

12 March 2023
