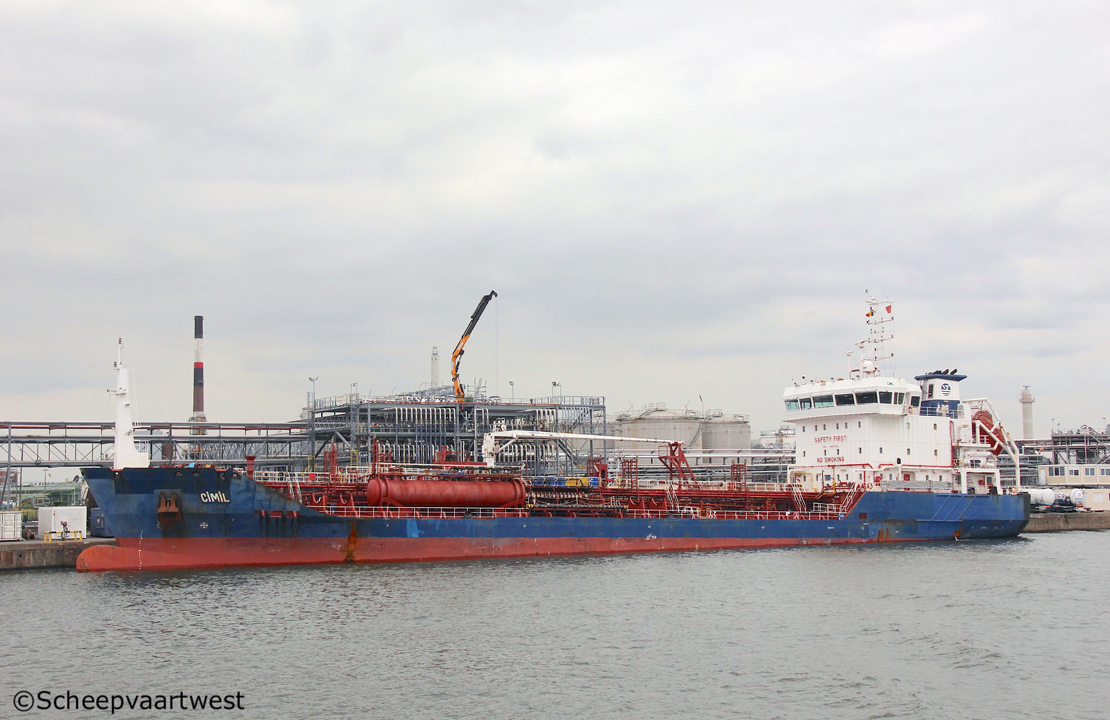

Antwerpen 28 August 2018 |
 |
 |
 |
||

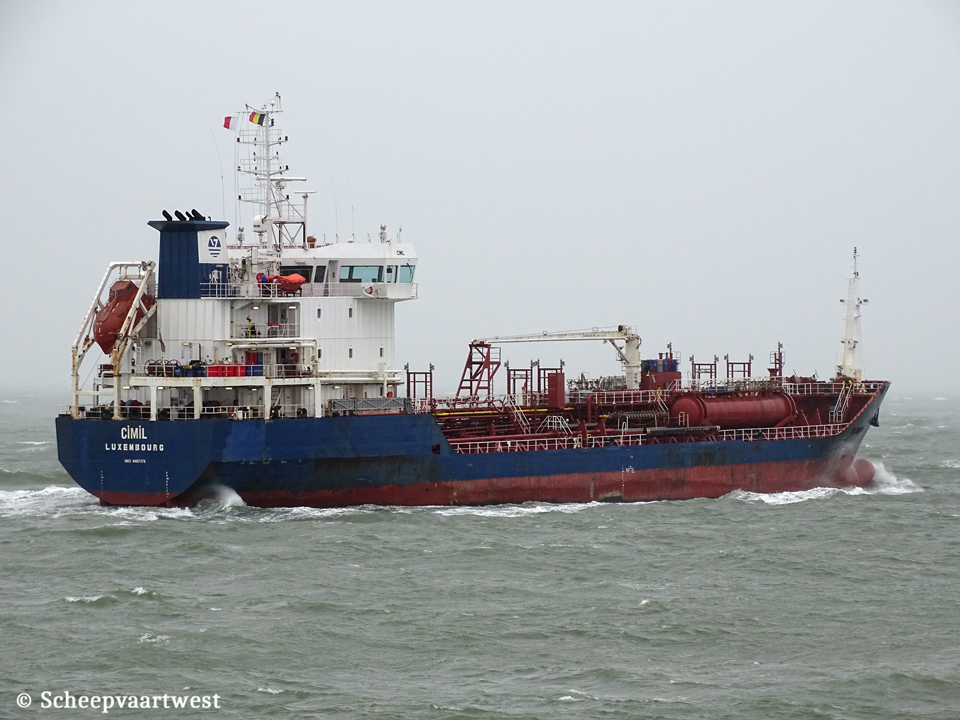

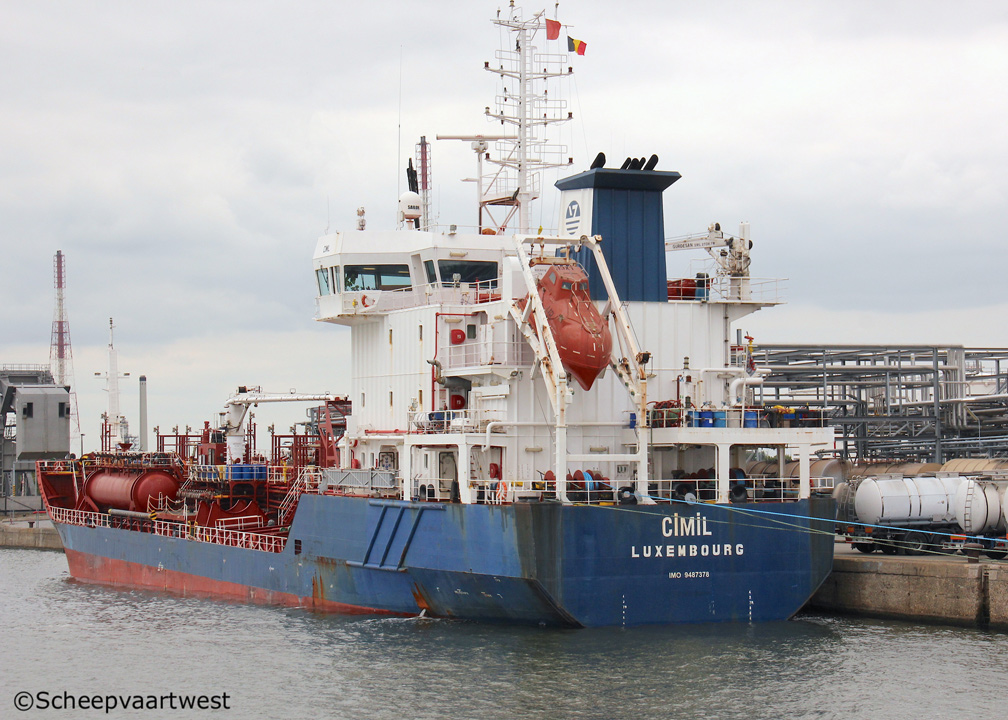

| Westerschelde 04/1019 | Antwerpen 28/08/18 | Antwerpen 28/08/18 | ||
|
Name |
CIMIL |
|
Previous names |
2010 Cimil 2016 Transnav Holly |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9487378 |
|
Call sign |
9HA2290 |
|
Flag |
Valletta |
|
Port of registry |
Malta |
|
Previous flags |
2010 - 2010 Turkey - Call sign: TCW09 2010 - 2016 Liberia, Monrovia - Call sign: D5KY4 2016 - 2021 G. D. Luxembourg, Luxembourg City - Call sign: LXCI |
|
GT |
3.308 t |
|
DWT |
Summer: 4.999,4 t Winter: 4.829,5 t |
|
NT |
1.503 t |
|
Displacement |
Summer: 7.110,5 t Winter: 6.940,0 t |
|
Length |
99,84 m overall 94,76 m between perpendiculars |
|
Breadth |
15,60 m moulded |
|
Draught |
Summer: 6,11 m Winter: 5,98 m |
|
Keel to masthead |
33,50 m |
|
Air draft |
Summer; 27,40 m Winter: 27,51 m |
|
Freeboard |
Summer: 1.511 mm Winter: 1.638 mm |
|
Depth |
7,60 m moulded |
|
Speed |
12,5 knots laden Eco: 10,5 knots |
|
Built |
2010 |
|
Keel laid |
12/2007 |
|
Date of completion |
08/04/2010 |
|
Builder |
Turkter Tersane ve Deniz Isletmeciligi A.S. Tuzla, Istanbul Turkey |
|
Yard number |
76 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
10 |
|
Continuous decks |
1 |
|
Main engine |
2x Wärtsilä 6L20 - 4 stroke 6 cylinder 200 x 280 mm combustion engines total 2.160 kW / 2.934 hp at 1.000 rpm |
|
Propellers |
2x Screw propeller controllable pitch aft at 209 rpm Diameter: 2.600 mm |
|
Boilers |
2x CHR Garioni Naval 67,00 m² / 10,0 bar 2x CHO Garioni Naval 45,00 m² / 10,0 bar |
|
Shaft generator |
2x 838 kVA - 670 kW each |
|
Generators |
1x Scania DI 1262M diesel generatorset 313 kVA - 250 kW - 353 hp at 1.800 rpm |
|
Emergency generator |
1x Sisu 634DSBIG diesel generatorset 188 kVA - 150 kW - 204 hp at 1.800 rpm |
|
Compressed air receivers |
2x Atlas Copco LT5-30 KE - 19,8 m³/h - 30,0 bars @ 1.800 rpm |
|
Bow thruster |
1x Controllable pitch propeller controlled from bridge - 250 kW |
|
Number of tanks |
10 |
|
Cargo tank capacity |
Tank 1 P/S: 364 m³ / 362,5 m³ Tank 2 P/S: 557 m³ / 556,5 m³ Tank 3 P/S: 575,5 m³ / 574 m³ Tank 4 P/S: 575,5 m³ / 575 m Tank 5 P/S: 550 m³ / 548 m³ Total: 5.338,00 m³ |
|
Number of slop tanks |
2 |
|
Number of segregations |
12 |
|
Pumps |
10x Framo cargo pumps each 200 m³/h 2x Framo cargo pumps each 100 m³/h 1x Framo cargo pump 70 m³/h 2x Framo ballast pumps each 250 m³/h |
|
Cargo system particulars |
Max rate loading: 1.200 m³/h Max rate discharging: 800 m³/h Max allow pressure cargo line: 12,8 Bar |
|
Tank capacities 98% |
Fuel oil: 247,98 m³ Diesel oil: 54,42 m³ Fresh water: 209,55 m³ Lub oil: 32,18 m³ Ballast: 1.750 m³ (100%) |
|
ISM & commercial manager |
Besiktas Likid Tasimacilik Kat 15, Blok A, Piyale Pasa Bulvari Memorial Centre, Okmeydani, Sisli 34385 Istanbul Turkey |
|
Registered owner |
Bonn Shipping Ltd. Care of Besiktas Likid Tasimacilik Denizcilik Ticaret AS, Kat 15, Blok A, Piyale Pasa Bulvari Memorial Centre, Okmeydani, Sisli 34385 Istanbul Turkey |
|
Latest data adjustment |
26 October 2022 |
