Topaz 01

Vlissingen 15 November 2017



Name

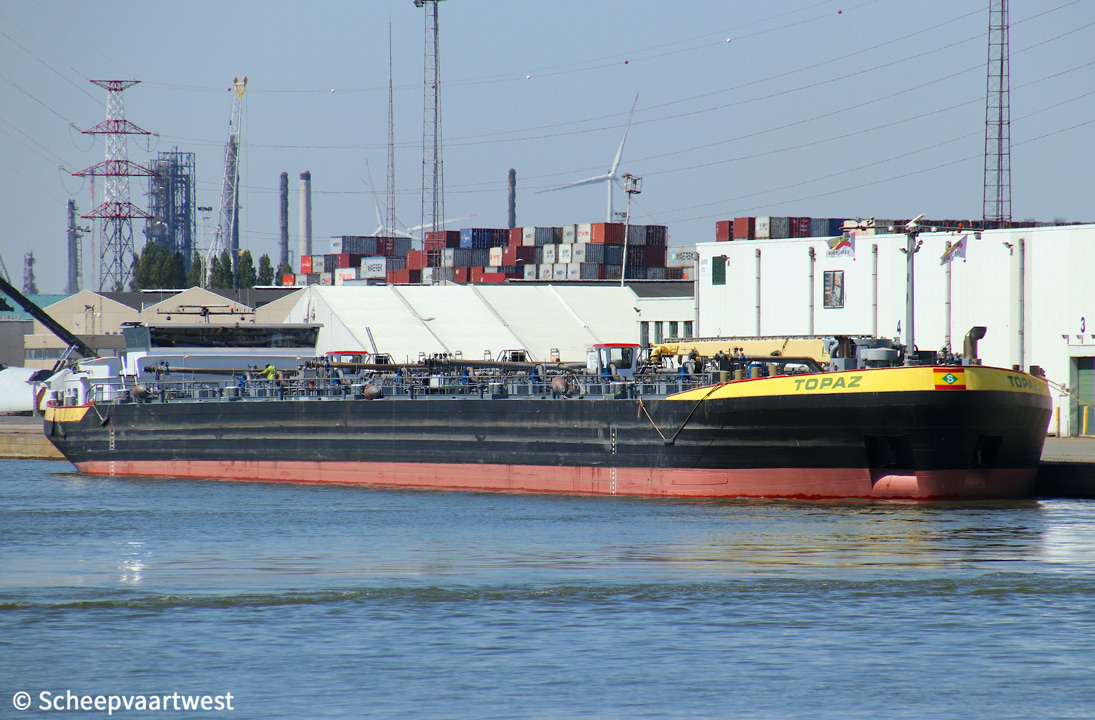

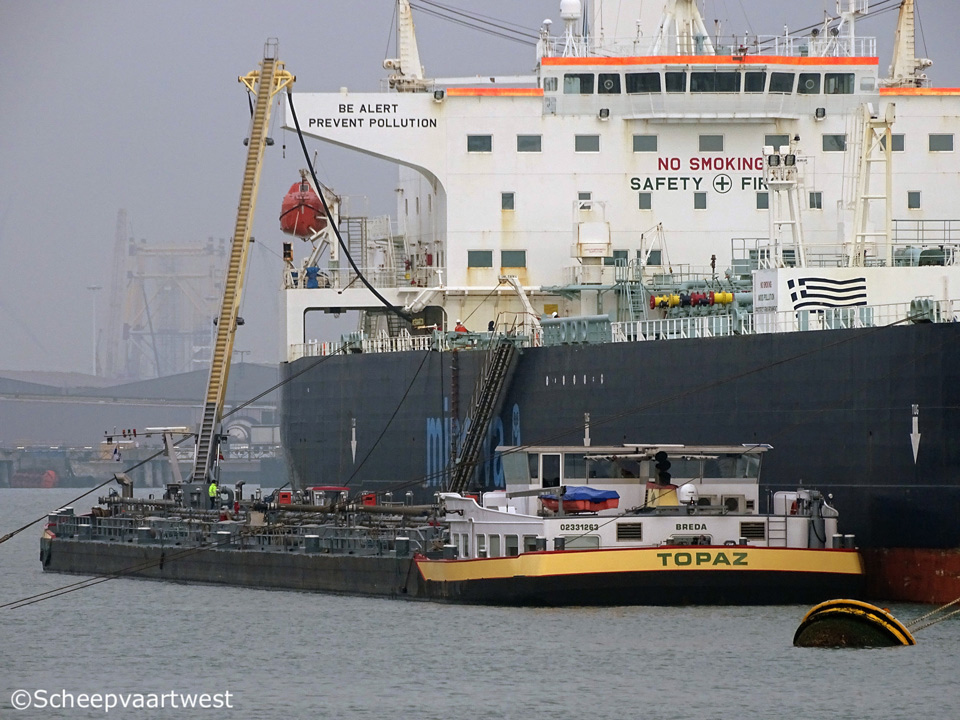

TOPAZ

Type

Inland tanker

ENI-number

02331263

Call sign

PH4260

Flag

The Netherlands

Port of registry

Breda

GT

3.172 t

Tonnage

6.330 t

Length

135,00 m overall

130,76 m between perpendiculars

Breadth

15,00 m

Draught

4,31 m

Depth

5,39 m

Built

2009

Date of completion

08/04/2009

Builder casco

JSC Arkhangelsk Shipbuilding
Arkhangelsk
Russia

Builder completion

TeamCo Shipyard
Heusden
The Netherlands

Yard number

131

Hull material

Steel

Hull type

Double hull

Main engine

2x ABC 6 MDZC C-1000-166-A - 4 stroke 6 cylinder combustion engines each 1.240 kW / 1.800 hp at 1.000 rpm

Built: 2008

Propellers

2x Screw Propeller Solid - aft at 337 rpm

Generators

2x Scania engines coupled with Stamford generators each 540 kVA - 432 kW - 727 hp

2x Scania engines coupled with Stamford generators each 120 kVA - 96 kW - 158 hp

Bow thruster

2x Scania - Verhaar Omega type VBS 1200 each 600 hp at 1.800 rpm

Number of cargo tanks

18

Cargo tank capacity

4.743 m³

Pumps

9x EPS 200 cargo pumps each 200 m³/h coupled with ABB electro motor each 86 kW

Owner

Nioc Trading
Baronielaan

4818 PD Breda

The Netherlands

Latest data adjustment

05 August 2018
