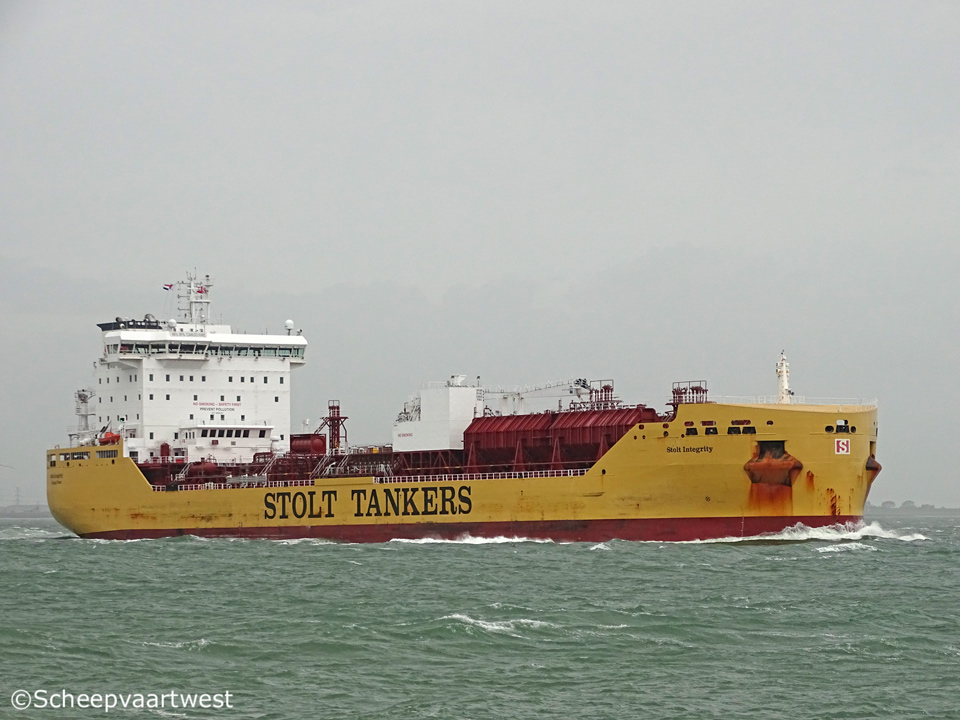

Stolt Integrity 01

Westerschelde 02 October 2017

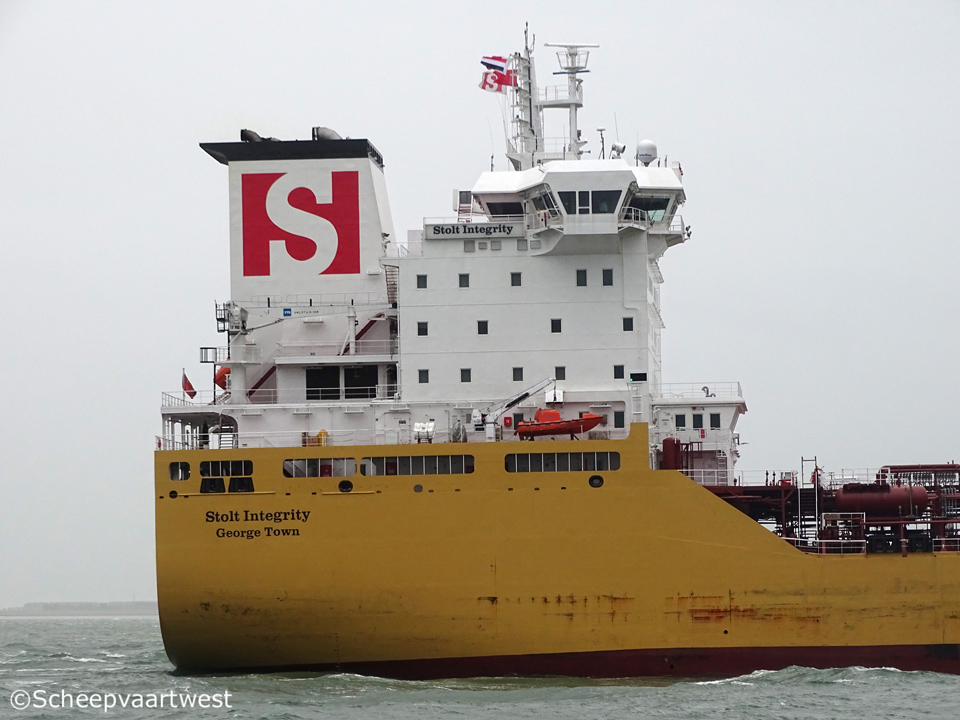

Stolt Integrity 03   Stolt Integrity 02
Westerschelde 02/10/17   Westerschelde 02/10/17



Name

STOLT INTEGRITY

Type

Tanker for chemicals & oil products

IMO-number

9680097

Call sign

ZGEY2

Flag

Cayman Islands

Port of registry

George Town

GT

29.903 t

DWT

38.853,4 t

NT

11.605 t

Length

185,05 m overall

181,74 m between perpendiculars

Breadth

32,24 m extreme

Draught

10,35 m

Depth

14,96 m

Speed

15,0 knots

Built

2017

Keel laid

19/08/2015

Launch date

10/04/2016

Date of completion

24/02/2017

Builder

Hudong-Zhonghua Shipbuilding (Group) Co., Ltd.
Shanghai
China

Yard number

H1709A

Hull material

Steel

Hull type

Double hull

Main engine

1x 6RT-flex50 - 6 cylinder combustion engine

Propellers

1x Controllable pitch propeller

Boilers

3x Auxiliary boiler, exhaust gas heated Aalborg XS-TC7A

2x Auxiliary boiler, oil/gas fired Aalborg OL

1x Auxiliary boiler, composite AQ10/16W

1x Thermal oil heater, steam heated

Generators

3x Yanmar 6EY22ALW main diesel generatorsets

Emergency generator

1x MAN D2876 diesel generatorset

Tank capacities

Ballast: 17.565,4 m³

Anchor equipment

Length: 660,00 m

Diameter: 78 mm

Manager

Stolt Tankers B.V.
Rotterdam
The Netherlands

Registered owner

Stolt Integrity B.V.

Latest data adjustment

09 July 2018
