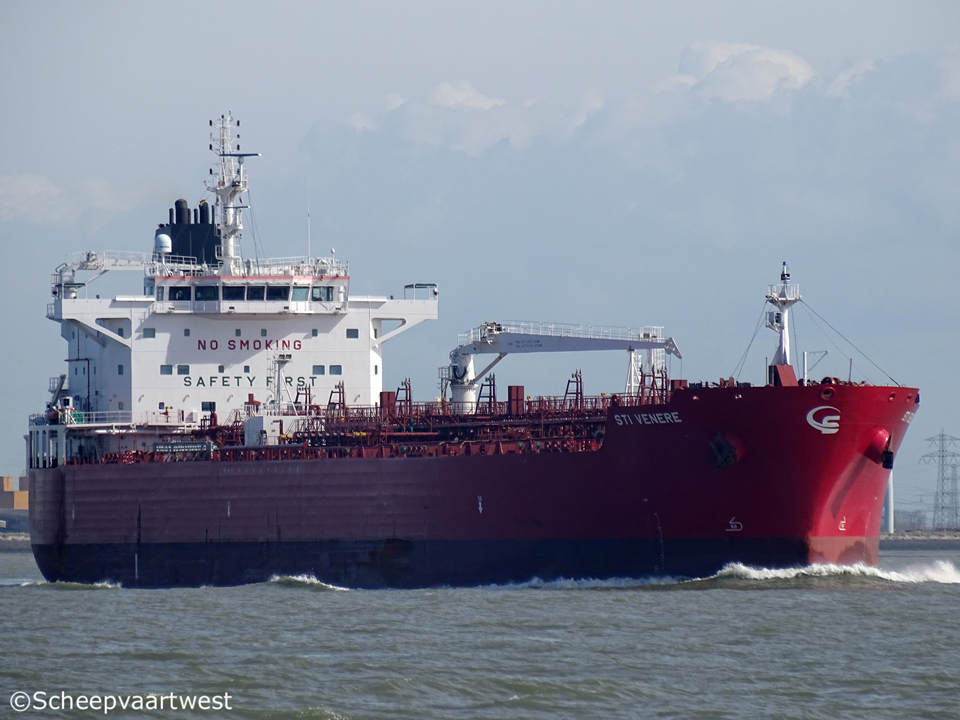

STI Venere 01

Westerschelde 30 March 2016



Name

STI VENERE

Type

Chemical tanker

IMO-number

9681390

Call sign

V7RM4

Flag

Marshall Islands

Port of registry

Majuro

GT

29.785 t registered

Suez: 31.623,45 t

DWT

Summer: 49.990 t

NT

13.224 t registered

Panama: 24.724 t

Suez: 27.515,13 t

Length

183,12 m overall

174,00 m between perpendiculars

Breadth

32,20 m moulded

Draught

13,33 m

Freeboard

6.095 mm

Depth

19,40 m

Speed

14,5 knots

Built

2014

Keel laid

26/11/2013

Launch date

18/03/2014

Date of completion

30/06/2014

Builder

Hyundai Mipo Dockyard Co. Ltd.
Ulsan

South Korea

Yard number

2391

Hull material

Ordinary strength steel

High strength steel

Hull type

Double hull

Bulkheads

Water tight: 4

Oil tight: 8

Main engine

1x MAN-B&W-HHI 6G50ME-B9.3 - 2 stroke 6 cylinder 500 x 2.500 mm combustion engine 8.090 kW at 90,7 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1x Fixed pitch propeller
Manufacturer: HHI Engine & Machinery Div.

Boilers

1x Composite boiler - 9,0 bar

1x Auxiliary boiler - 9,0 bar

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

3x Main diesel generatorsets each 800 kW

Manufacturer: HHI Electro Electric System

Number of cargo tanks

12

Cargo tank capacity 100%

54.646,5 m³

Number of slop tanks

2

Pumps

12x Framo SD 200 cargo pumps

2x Framo SD 150 cargo pumps

Number of tanks

Ballast: 14

Fuel oil: 9

Lubricating oil: 8

Waste water: 4

Diesel oil: 3

Fresh water: 2

Chain: 2

Sludge: 2

Hydraulic oil: 1

Gasoline: 1

Fixed ballast liquid: 1

Tank capacities 100%

Diesel Oil: 239 m³ / 215,1 t

Freshwater: 276,4 m³

Fuel Oil: 1.458,7 m³ / 1.444,11t

Hydraulic Oil: 17,9 m³ / 16,11 t

Lube Oil: 131,1 m³ / 117,99 t

Tank Ballast: 22.443,6 m³ / 23.004,69 t

Lifting equipment

1x Engine room crane - SWL 4,0 t

1x Hose handling crane - SWL 10,0 t

1x Provision crane port - SWL 2,0 t

1x Provision crane Stbd - SWL 4,0 t

Manufacture: Dongnam Marine Crane Co., Ltd.

Manager

Zenith Gemi Isletmeciligi A.S.
Istanbul
Turkey

Operator

STI Venere Shipping Company Limited
C/O Scorpio Shipmanagement Sam Le Millennium
9 Boulevard Charles III
Monaco, 9800
Monaco

Registered owner

STI Venere Shipping Company Limited

Latest data adjustment

18 June 2018
