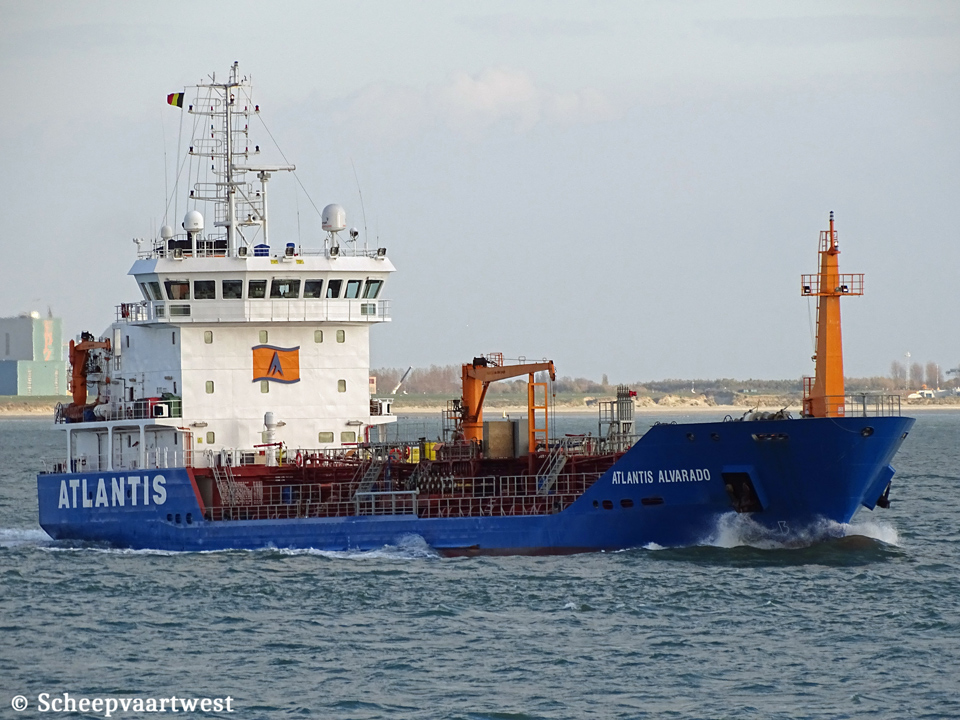

Atlantis Alvarado IMO 9268174 03

Westerschelde 06 November 2019

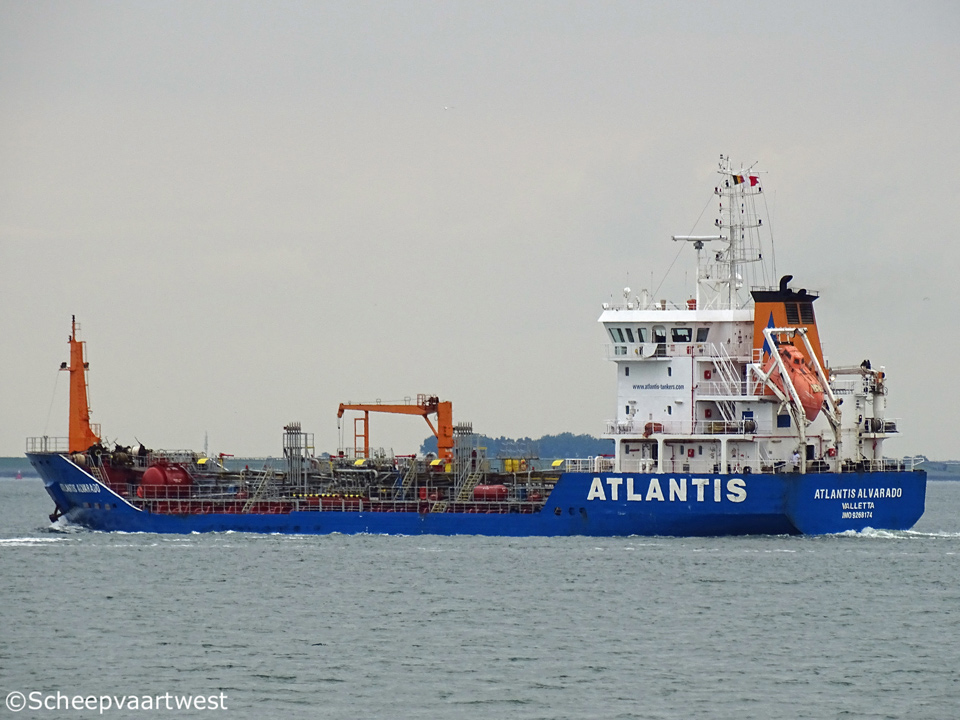

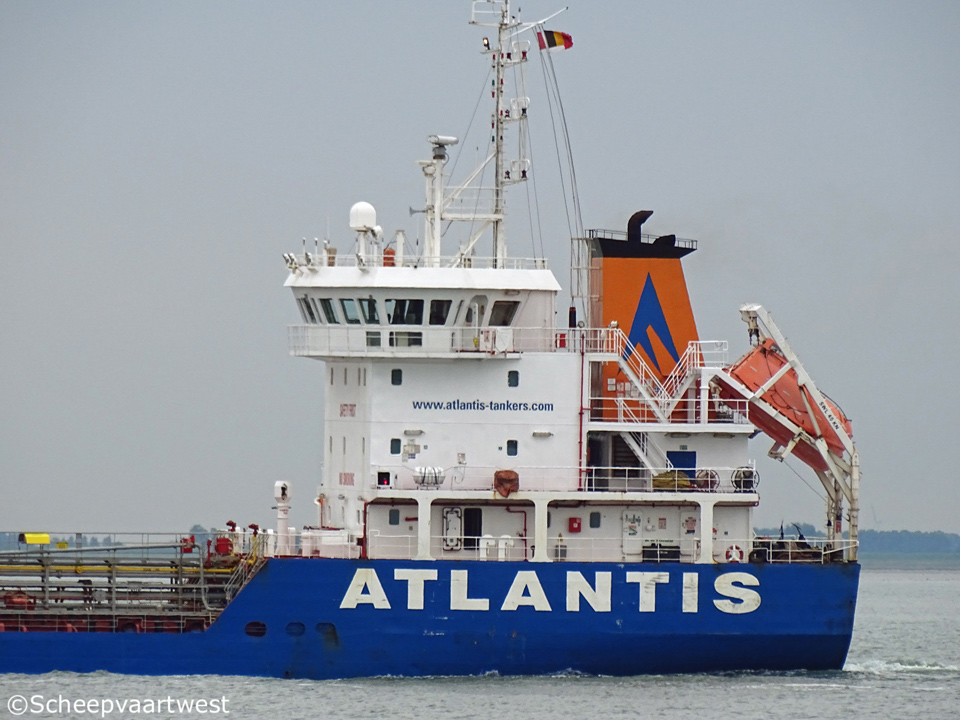

Atlantis Alvarado 02   Atlantis Alvarado 01
Westerschelde 31/05/16 Westerschelde 31/05/16


Name

ATLANTIS ALVARADO

Type

Oil/Chemical tanker

IMO-number

9268174

Call sign

9HA2203

Flag

Malta

Port of registry

Valletta

Previous flags

Until 2009 United Kingdom

GT

2.603 t

DWT

Summer: 3.502,4 t

NT

1.140 t

Length

92,86 m overall

86,65 m between perpendiculars

Breadth

14,10 m

Draught

5,70 m

Freeboard

1.511 mm

Depth

7,20 m

Speed

13,5 knots

Built

2004

Date of completion

27/12/2004

Builder

Gelibolu Gemi Insa San. VE TIC. A.S. (Gelibolu Shipyard)
Gelibolu

Turkey

Yard number

24

Hull material

Steel

Hull type

Double hull

Watertight compartments

12

Continuous decks

1

Main engine

1x MaK 6M25 - 4 stroke 6 cylinder 255 x 400 mm combustion engine 1.850 kW / 2.514 hp at 750 rpm

Built: 2003

Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1x Screw propeller controllable pitch

Boilers

2x CHO 50,00 m² - 10,0 bar

1x CHR 51,00 m² - 10,0 bar

Electric installations

Power voltage: 450 V

Lighting voltage: 220 V

Frequency: 60 Hz

Shaft generator

1x 850 kVA - 680 kW

Generators

3x Main diesel generatorsets each 275 kVA - 220 kW - 426 hp

Emergency generator

1x Diesel generatorset 138 kVA - 110 kW - 135 hp

Bow thruster

1x 350 kW

Number of tanks

10+1 cargo and slop tanks

Total capacity of tanks

4.170,5 m³

Segregation

11

Cargo handling

11x Cargo pumps each 150 m³/h

Tank capacities

Fuel oil: 205,04 m³

Crew size

14

Commercial manager

Atlantis Tankers

Muallim Naci Caddesi No: 47

TR-34347 Ortaköy

Beşiktaş / Istanbul

Turkey

Technical manager

Armona Denizcilik A.S.

Muallim Naci Caddesi No: 47

TR-34347 Ortaköy

Beşiktaş / Istanbul

Turkey

Registered owner

Alvarado Shipping Limited

c/o Armona Denizcilik A.S.

Latest data adjustment

27 April 2021
