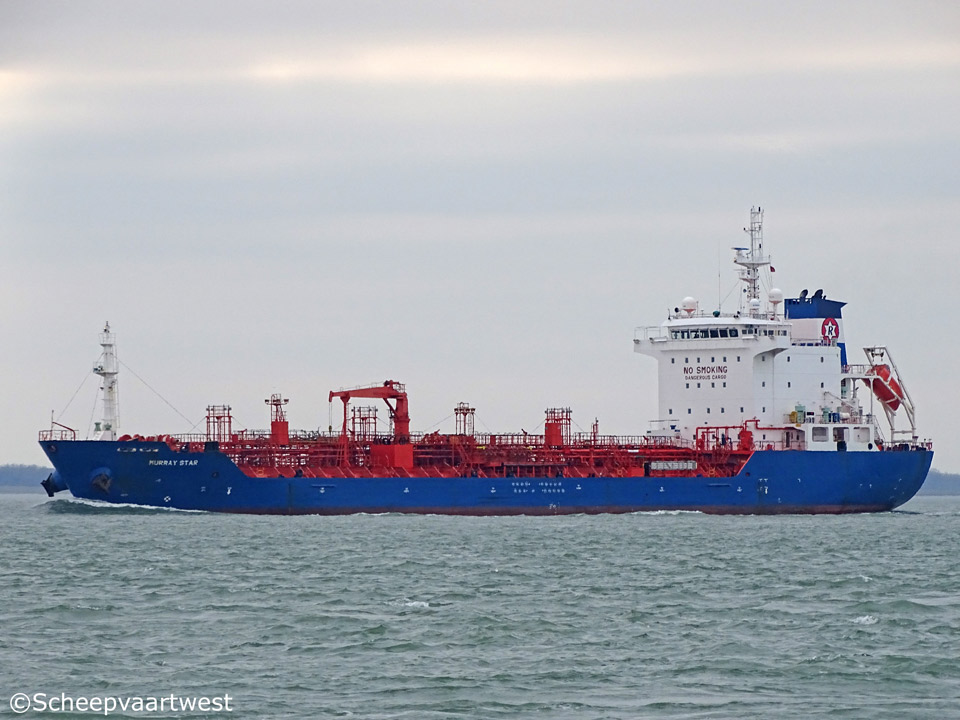

Westerschelde 28 January 2017 |
|
Name |
MURRAY STAR |
|
Type |
Oil & Chemical tanker |
|
IMO-number |
9527635 |
|
Call sign |
9HA2667 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
8.581 t Suez: 8.986,73 t |
|
DWT |
Summer: 13.006,42 t |
|
NT |
4.117 t Panama: 7.216 t Suez: 6.845 t |
|
Length |
128,60 m overall 120,40 m between perpendiculars |
|
Breadth |
20,40 m moulded |
|
Draught |
8,70 m |
|
Keel to top of mast |
40,80 m |
|
Freeboard |
2.812 mm |
|
Depth |
11,50 m moulded |
|
Speed |
Service: 13,4 knots |
|
Built |
2011 |
|
Keel laid |
17.09.2009 |
|
Launch date |
10.01.2011 |
|
Date of completion |
18.04.2011 |
|
Builder |
21st Century Shipbuilding Co., Ltd. |
|
Yard number |
CSN274 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 10 Oil tight: 8 |
|
Main engine |
1x MAN B&W 6S35 MCC - 2 stroke 6 cylinder 350 x 1.400 mm diesel engine 4.440 kW / 6.037 bhp at 173 rpm Manufacturer:STX Engine Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller Manufacturer:Wärtsilä Cme Zhenjiang Propeller Co., Ltd. |
|
Boilers |
1x Auxiliary boiler 1x Exhaust gas economizer Manufacturer: Aalborg Industries Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 600 kVA Manufacturer:Taiyo Electric Co., Ltd. |
|
Bow thruster |
1x 450 kW |
|
Total cargo capacity 98% |
Tank 1 port: 948 m³ Tank 1 Stb: 948 m³ Tank 2 port: 1.123 m³ Tank 2 Stb: 1.124 m³ Tank 3 port: 1.232 m³ Tank 3 Stb: 1.232 m³ Tank 4 port: 1.233 m³ Tank 4 Stb: 1.233 m³ Tank 5 port: 1.232 m³ Tank 5 Stb: 1.233 m³ Tank 6 port: 1.070 m³ Tank 6 Stbt: 1.070 m³ Slop port: 352 m³ Slop Stb: 351 m³ 13.916 m³ incl. slop tanks - 87.527 bbls |
|
Number of segregations |
12+1 |
|
Cargo pumps |
12x Framo Deepwell pumps 300 m³/h each 2x Framo Deepwell pumps of 100 m³/h each |
|
Pumping capacity |
abt. 1.800 m³/h (theoretical) |
|
Tank coating |
Phenolic epoxy |
|
Heating capacity |
Max.: 70°C |
|
Manifolds |
Bow to centre of manifold: 61,20 m |
|
Number of tanks |
Ballast: 15 Lubricating oil: 9 Fuel oil: 9 Fresh water: 5 Diesel oil: 4 Waste water: 3 Sludge: 2 Chemical: 2 Chain: 2 Hydraulic oil: 1 |
|
Tank capacities 100% |
Diesel Oil: 76,82 m³ / 66,06 t Freshwater: 429,90 m³ Fuel Oil: 645,13 m³ / 632,23 t Hydraulic Oil: 5,78 m³ / 5,21 t Lube Oil: 88,37 m³ / 79,53 t Tank Ballast: 5.457,84 m³ / 5.594,29 t |
|
Lifting equipment |
1x Hose crane - SWL 10,0 t Manufacture: A Rim Machinery & Engineering Co. 1x Engine room handling crane - SWL 3,0 t |
|
Crew size |
21 |
|
Manager |
Rigel Schiffahrts Gmbh & Co. KG Germany |
|
Owner |
Valloeby Murray Star Ltd. St. Julians |
|
Sister ships |
02.2010 Amur Star - IMO9480368 - Call sign: 9HA2141 04.2010 Colorado Star - IMO 9527609 - Call sign: 9HA2189 04.2010 Ganges Star - IMO 9496692 - Call sign: 9HA2339 07.2010 Kongo Star - IMO 9508823 - Call sign: 9HA2367 07.2010 Shannon Star - IMO 9503926 - Call sign: 9HA2409 08.2010 Mississippi Star - IMO 9527623 - Call sign: 9HA2441 12.2011 Pechora Star - IMO 9488322 - Call sign: 9HA2788 |
|
Latest data adjustment |
01 July 2017 |
