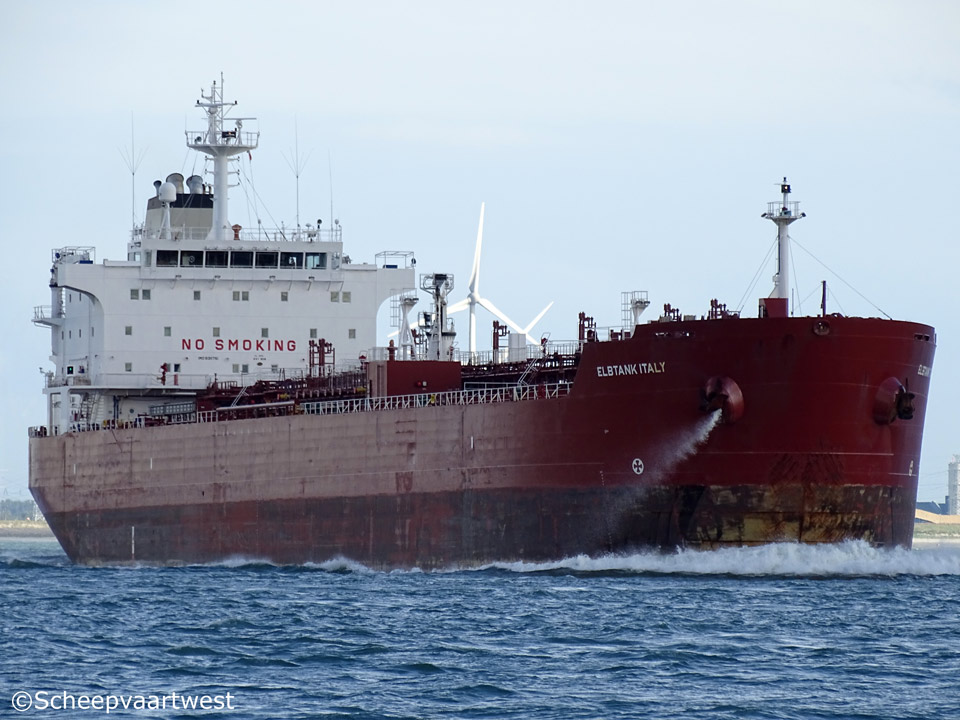

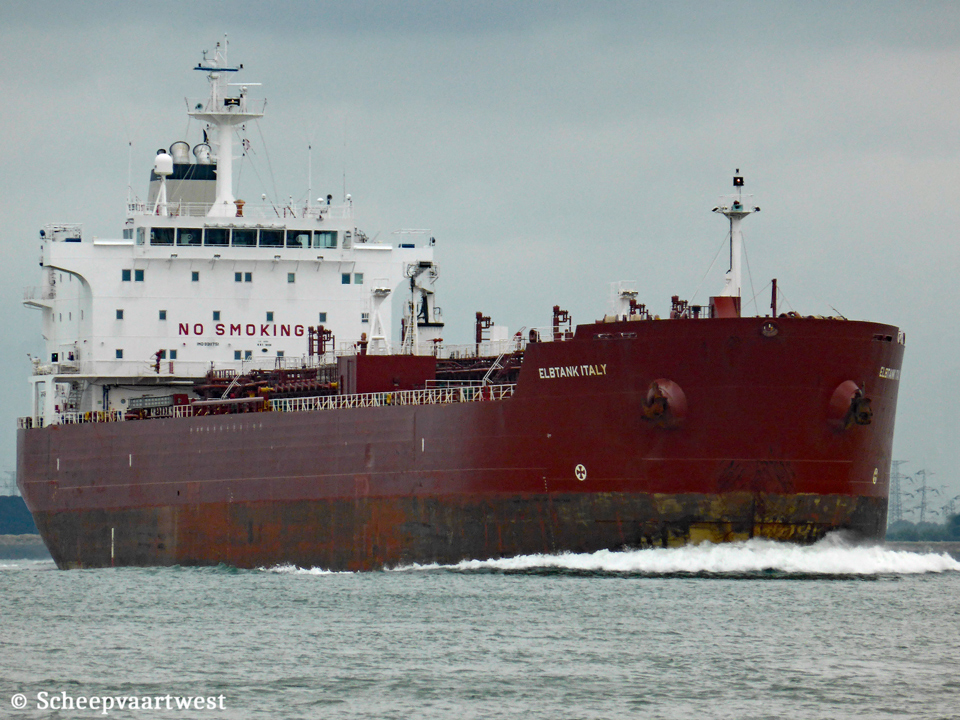

Westerschelde 08 October 2015 |
 |
|
| Westerschelde 23/06/15 | |
|
Name |
ELBTANK ITALY |
|
Previous names |
2006 - 08/2007 Rhine 08/2007 - 10/2008 Ravi Spirit 10/2008 - 11/2015 Elbtank Italy |
|
Type |
Oil product tanker |
|
IMO-number |
9311751 |
|
Call sign |
A8PR7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
23.246 t registered |
|
DWT |
Summer: 36.993 t |
|
NT |
10.126 t registered |
|
Length |
183,30 m overall 175,00 m between perpendiculars |
|
Breadth |
27,34 m moulded |
|
Draught |
Max.: 12,90 m |
|
Freeboard |
5.514 mm |
|
Depth |
16,70 m moulded |
|
Speed |
Service: 12,4 knots Max.: 15,7 knots |
|
Built |
2006 |
|
Keel laid |
24/10/2005 |
|
Delivery date |
22/02/2006 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
0392 |
|
Hull material |
High strength steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
11 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 50-MC-C MK7 - 2 stroke 7 cylinder 500 x 1.900 mm combustion engine 11.060 kW / 15.037 hp Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propellers |
1x Mono -block solid fixed pitch propeller |
|
Boilers |
1x Steam boiler, oil fired Max. allow. working pressure: 9,0 bar Heating surface 110,0 m² Manufacturer: Aalborg Boilers A/S 1x Steam boiler, exhaust gas heated Max. allow. working pressure: 12,0 bar Heating surface: 418,0 m² Manufacturer:Kang Rim Heavy Ind. Co., Ltd. Pohang Factory |
|
Generators |
3x MAN-B&W/Hyundai 6L23/30 main diesel generatorsets each 925 kVA |
|
Emergency generator |
1x Cummins LTA-10-G1 diesel generatorset 180 kVA |
|
Bow thruster |
1x Wärtsilä type FT 200-H - 900 kW |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity 100% |
42.186,6 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity |
941 m³ |
|
Cargo pumps |
10x Cargo pumps each 450 m³/h 2x cargo pumps each 300 m³/h 2x cargo pumps each 150 m³/ h |
|
Number of tanks |
Ballast: 15 Lubricating oil: 8 Fresh water: 7 Fuel oil: 6 Diesel oil: 5 Chain: 2 Sludge: 2 Waste water: 1 Hydraulic oil: 1 |
|
Tank capacities 100% |
Diesel oil: 183,6 m³ Freshwater: 513,1 m³ Fuel oil: 1.257,7 m³ Hydraulic oil: 15,7 m³ Lube oil: 100,4 m³ Tank ballast: 18.982,6 m³ |
|
Anchor equipment |
3x Anchors weight each 7.350 kg Anchor Chain: 605,00 m |
|
Lifting equipment |
1x Hose handling crane - SWL 10,0 t 1x Provision crane - SWL 2,0 t 1x Provision, Rescue boat & Life raft combined crane - SWL 2,0 t Manufacture: Dongnam Marine Crane Co. Ltd. |
|
Crew size |
25 |
|
Manager |
TB Marine Shipmanagemant Hamburg Germany |
|
Registered owner |
MT "Elbtank Italy" Schiffahrtsgesellschaft Mbh & Co. |
|
Renamed |
11/2015 - 2022 Maersk Arctic Republic of Singapore - Call sign: 9V3782 Owner: Maersk Tankers Singapore Pte Ltd. Operator: Maersk Tankers A/S 2022 Esen Ka Turkey - Call sign: TCA7035 Owner: White Tankers Gemi Islet, Istanbul - Turkey |
|
Latest data adjustment |
23 September 2023 |
