Westerschelde 04 October 2017 |
 |
 |
 |
 |
|||
| Westerschelde 05/05/15 | Vlissingen 07/10/16 | Vlissingen 07/10/16 | Vlissingen 07/10/16 | |||
|
Name |

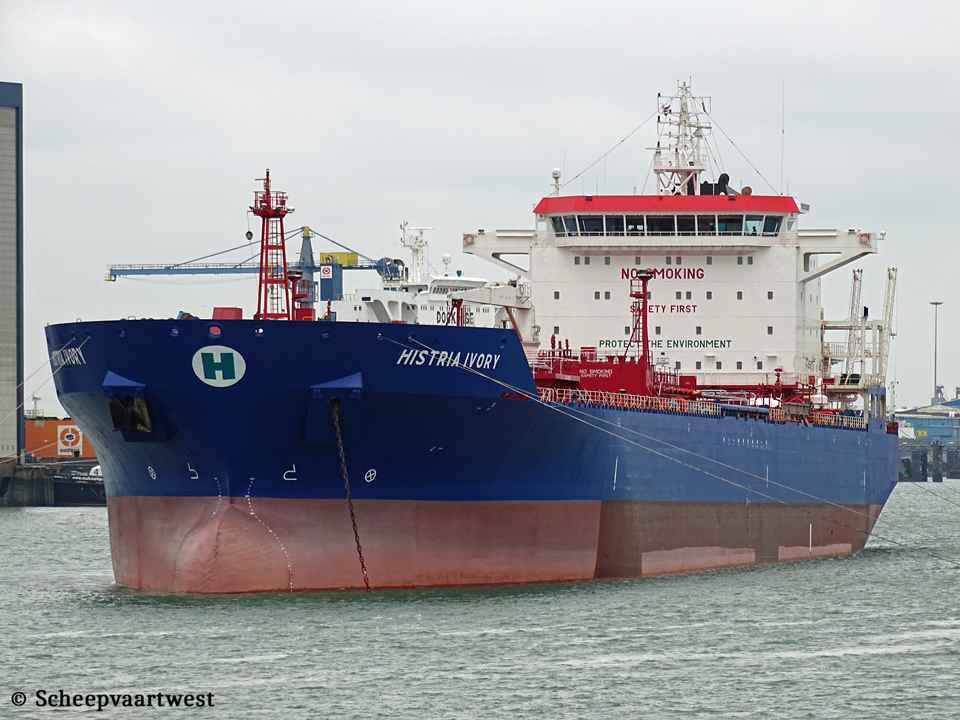

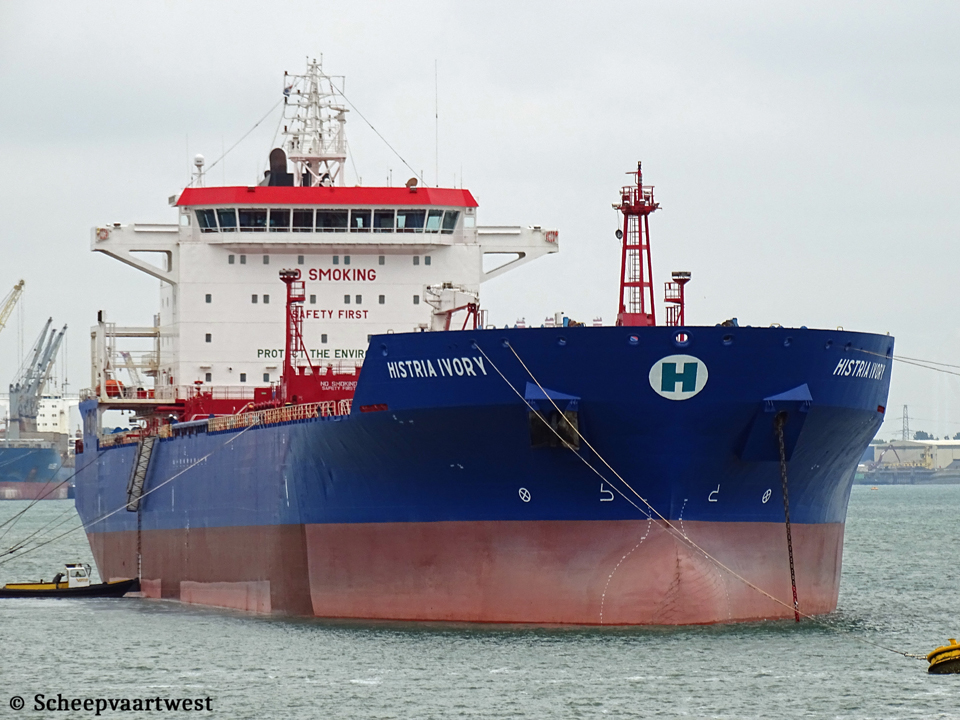

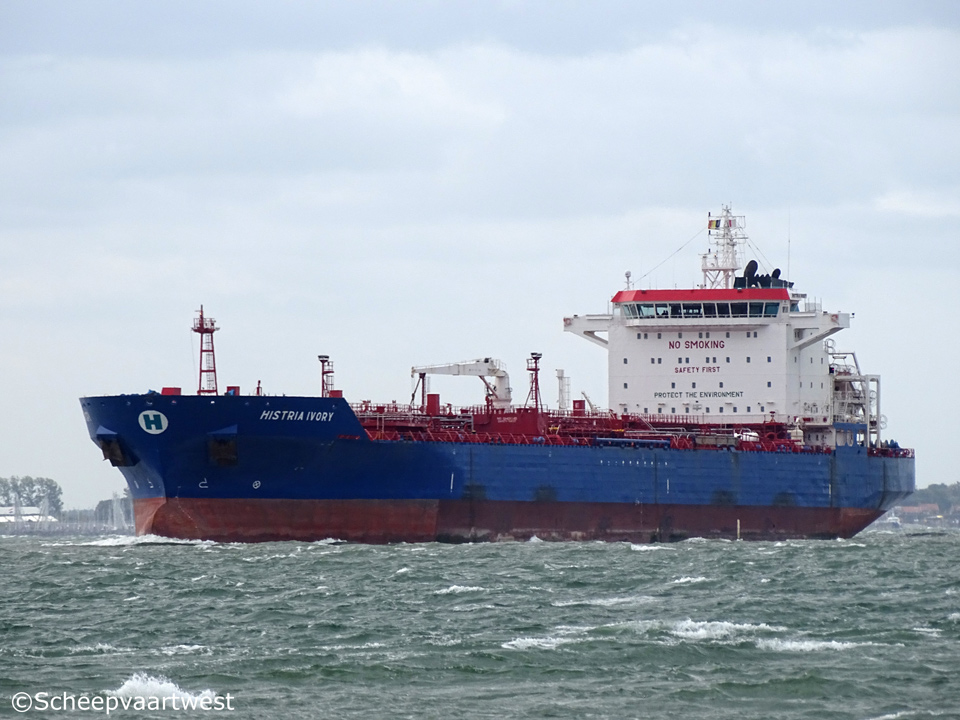

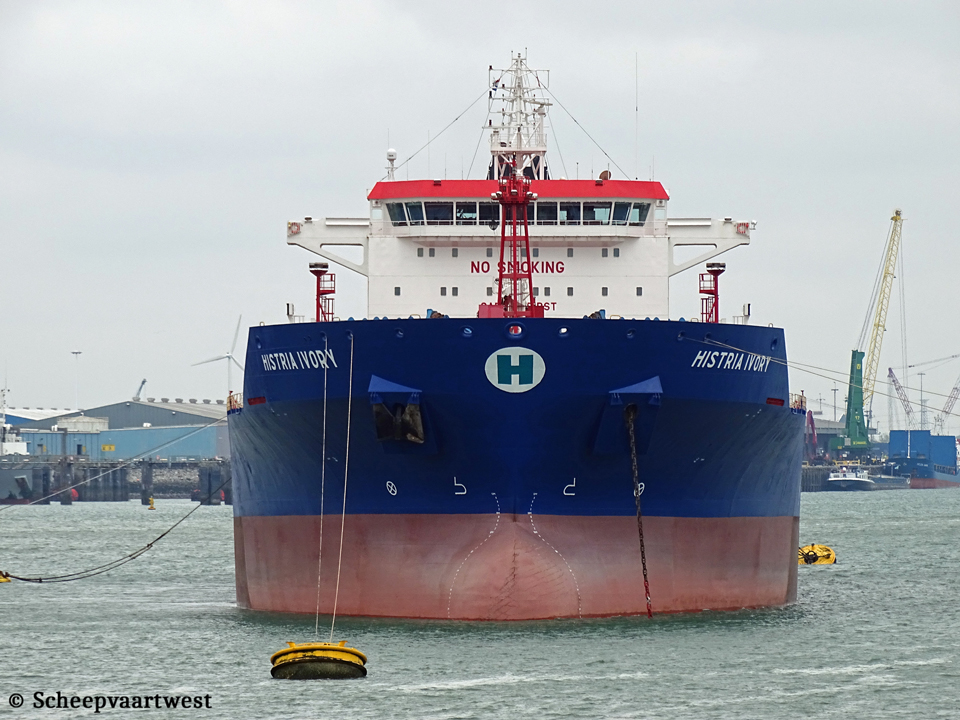

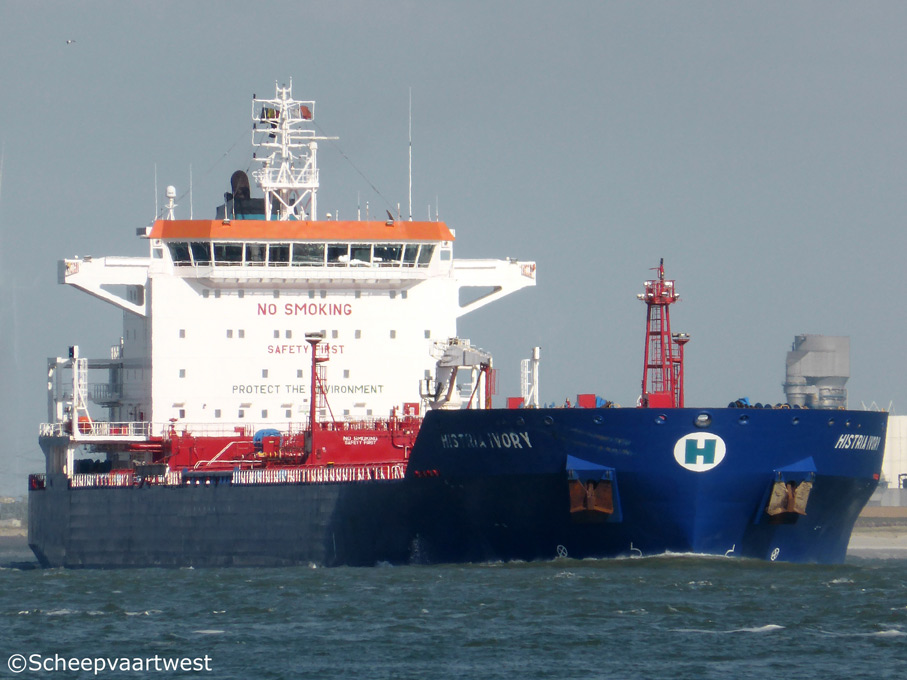

HISTRIA IVORY |
|
Type |
Oil / Chemical tanker |
|
IMO-number |
9356244 |
|
Call sign |
9HQK8 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
25.804 t Suez: 26.357,4 t |
|
DWT |
Summer: 40.449,8 t Winter: 39.182,3 t |
|
NT |
11.369 t Suez: 25.314,09 t Panama: 21.526 t |
|
Displacement |
Summer: 50.085 t Winter: 48.851,4 t |
|
Length |
179,96 m overall 172,00 m between perpendiculars |
|
Breadth |
32,23 m extreme |
|
Draught |
Summer: 11,00 m Winter: 10,77 m |
|
Keel to mast end |
44,00 m |
|
Air draft |
Summer deadweight: 33,00 m Normal ballast: 36,80 m Lightship: 41,40 m |
|
Freeboard |
Summer: 5.514 mm Winter: 5.743 mm |
|
Depth |
16,50 m moulded |
|
Speed |
Ballast: 15,0 knots / Economical: 15,5 knots Laden: 14,0 knots - Economical: 1,20 knots |
|
Built |
2006 |
|
Keel laid |
30/08/2005 |
|
Launch date |
08/08/2006 |
|
Date of completion |
16/10/2006 |
|
Builder |
Santierul Naval Constanta S.A. Romania |
|
Yard number |
571 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6S50MC-C - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW / 12.889 hp at 127,0 rpm Builder: STX Engine Co., Ltd. (B&W), Changwon - Sputh Korea |
|
Propellers |
1x Fixed propeller- 4 blades Builder: Wärtsilä Propulsion Netherlands |
|
Boilers |
1x Auxiliary boiler, composite 1x Auxiliary boiler, oil/gas fired |
|
Generators |
3x MAN B&W 6 L23/30H diesel generatorsets each 880 kW |
|
Emergency generator |
1x Scania D-9 95M diesel generatorset 200 kW |
|
Bow thruster |
1x 850 kW / 1.155 bhp |
|
Number of cargo tanks |
10 + 2 slop tanks |
|
Cargo tank capacity 98% |
46.820,6 m³ |
|
Capacity each natural segregation with 98% |
Seg#1: 7.106,6 m³ Seg#2: 9.866 m³ Seg#3: 10.110,8 m³ Seg#4: 10.109,8 m³ Seg#5: 9.627,2 m³ |
|
Slop tank capacity 98% |
Cargo tank 6P = 395,9 m³ Cargo tank 6S = 585,7 m³ |
|
Pumps |
10x Framo centrifugal type capacity each 500 m³/h 2x Framo centrifugal pump each 200 m³/h 1x Framo centrifugal Pump 150 m³/h 1x Framo centrifugal pump 80 m³/h 1x Framo reciprocating pumps (stripping) 30 m³/h 2x Framo centrifugal ballast pumps capacity 800 m³/h |
|
Manifolds |
Bow to centre manifold: 89,94 m Stern to centre manifold: 90,02 m Distance between cargo manifold centres: 2.000 mm Distance ships rail to manifold: 4.600 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 800 mm Distance main deck to centre of manifold: 1.900 mm Spill tank grating to centre of manifold: 900 mm |
|
Tank capacities |
Ballast: 18.653,5 m³ Fuel oil: 1.079,8 m³ Gas oil: 424,0 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 73 mm |
|
Lifting equipment |
1x Derrick - SWL 10,0 t |
|
Commercial manager |
CSSSA Chartering And Shipping Services S.A World Trade Center 1 1215 Geneva Switzerland |
|
ISM manager |
Histria Shipmanagement S.R.L. 24 Oborului Street Constanta Romania |
|
Registered owner |
Whitby Maritime S.A. 80 Broad Street Monrovia Liberia |
|
Disponent owner |
CSSSA Chartering And Shipping Services S.A World Trade Center 1 1215 Geneva Switzerland |
|
Latest data adjustment |
24 October 2023 |
