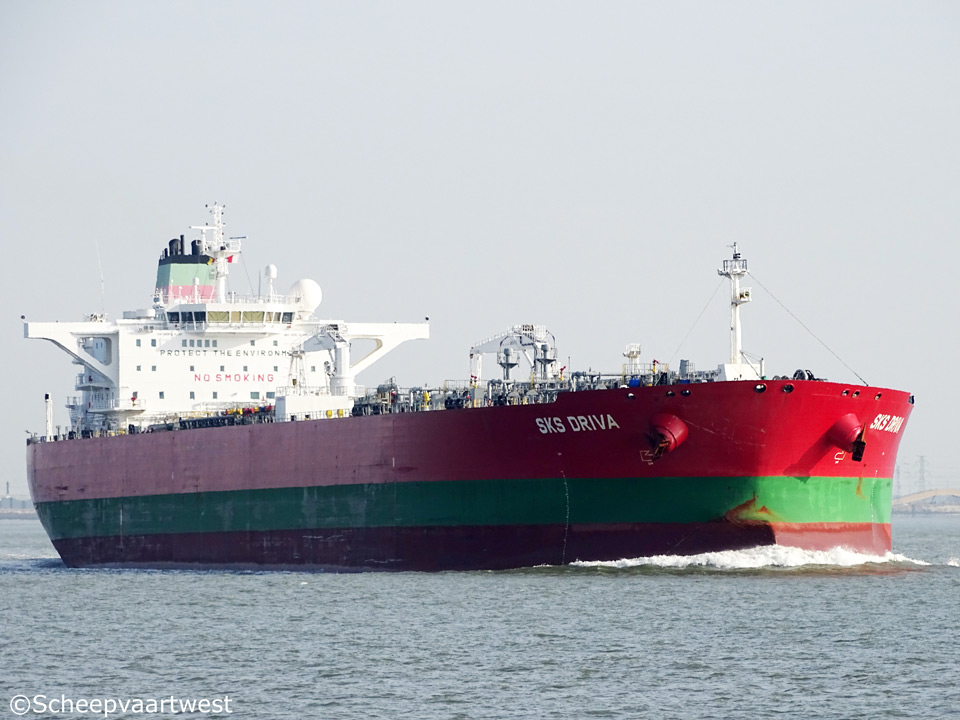

SKS Driva 04

Westerschelde02 February 2017

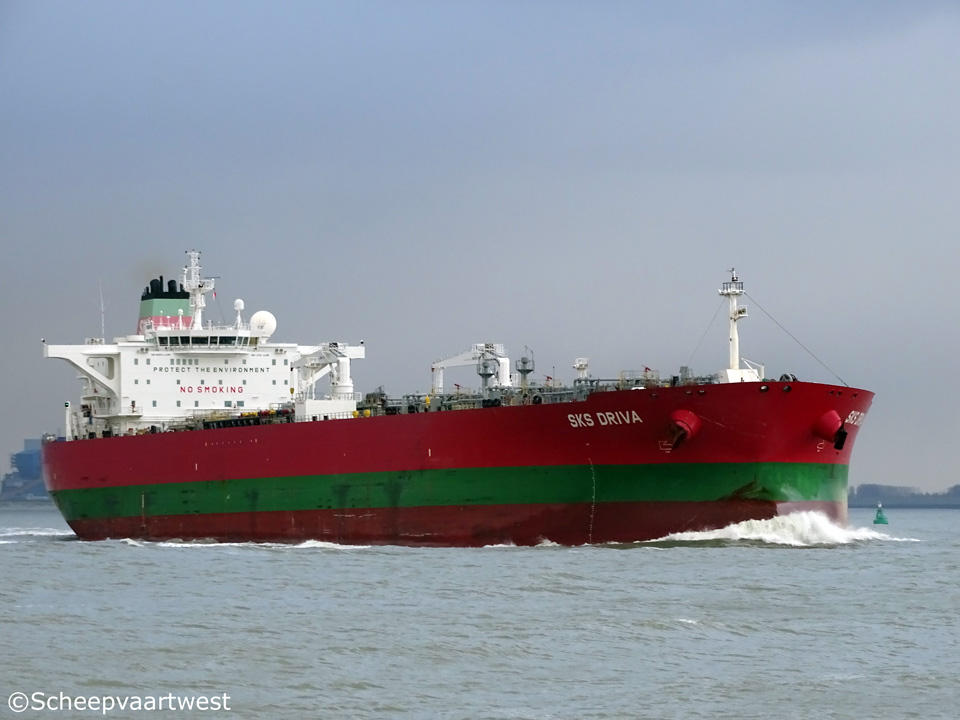

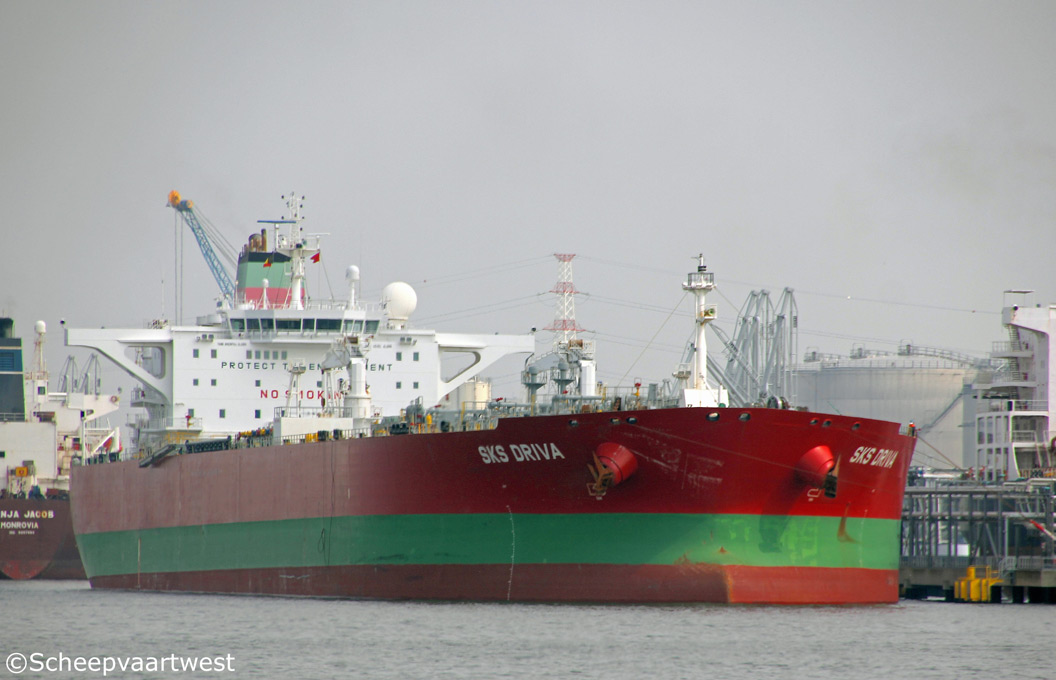

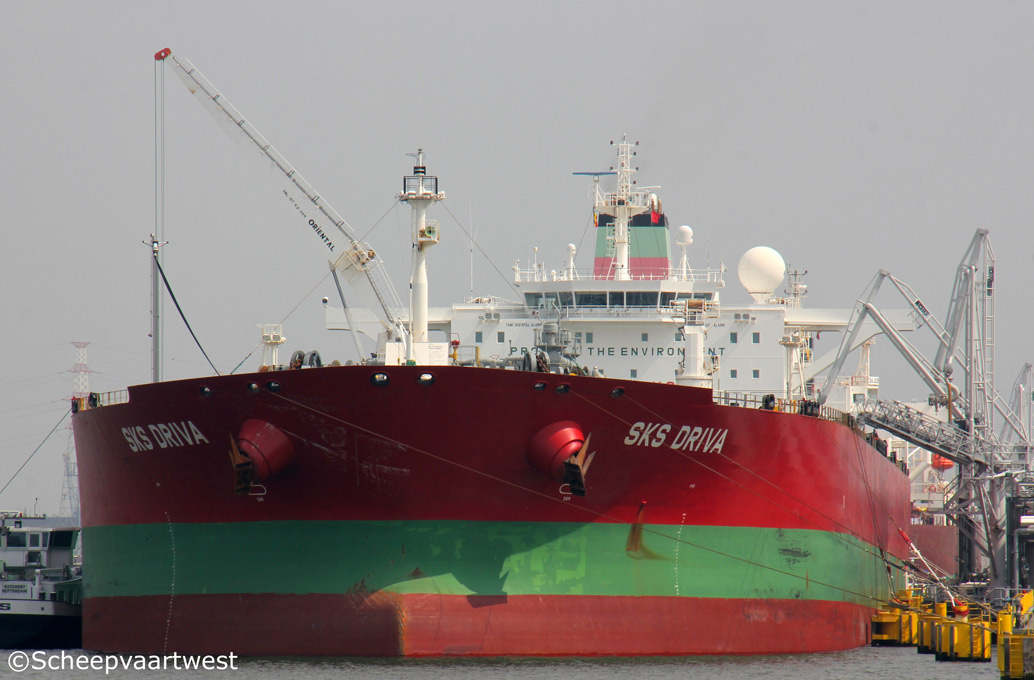

SKS Driva 03   SKS Driva 02   SKS Driva 01
Westerschelde 14/01/17   Antwerpen 26/05/16 Antwerpen 26/05/16



Name

SKS DRIVA

Type

Oil products tanker

IMO-number

9428970

Call sign

LAIV7

Flag

Norway

Port of registry

Bergen

GT

65.830 t

DWT

Summer: 119.456 t

NT

37.162 t

Length

249,99 m overall

239,00 m between perpendiculars

Breadth

45,04 m extreme

Draught

Summer: 15,22 m

Keel to mast end

49,00 m

Depth

21,50 m moulded

Speed

15,2 knots

Built

2010

Keel laid

26.10.2009

Launch date

17.12.2009

Date of completion

30.03.2010

Builder

Hyundai Samho Heavy Ind. Co., Ltd.(MOK)
Samho

South Korea

Yard number

S381

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN-B&W-HHI 6S70ME-C - 2 stroke 6 cylinder diesel engine 16.350 kW

Propellers

1x Mono-block propeller

Builder: HHI, Engine & Machinery Division

Boilers

1x Auxiliary boiler, exhaust gas heated (Economizer)

Builder: Kangrim Heavy Industries

1x Auxiliary boiler, oil/gas fired

Builder: Aalborg

Generators

2x Doosan 5L28/32H diesel generatorsets

Builder: Doosan Engine Co., Ltd.

Emergency generator

1x Cummins NTA 855 D(M) diesel generatorset

Builder: Cummins India Limited

Number of tanks

12

Cargo tank capacity 98%

131.819,02 m³ excl. slops

Number of slop tanks

2

Slop tank capacity 98%

2.826,13 m³

Total tank capacity 98%

134.645,15 m³

Segregation

6

Tank coating

Pure Epoxy

Pumps

12x FRAMO Deepwell cargo pumps 1.500 m³/h each

Slop tank pumps

2x Framo Deepwell pumps 600 m³/h each

Manifolds

Distance between manifold centres: 2,50 m

Centre manifold - bow: 122,80 m

Centre manifold - stern: 127,20 m

Tank capacities

Ballast: 45.302,8 m³

Anchor equipment

Length: 715,00 m

Diameter: 95 mm

Lifting equipment

2x Cranes - SWL 15,0 t each

Technical manager

KGJ OBO & Tankers Fleet Management AS (Kristian Gerhard Jebsen Skiprederi)
Folke Bernadottes vei 38NO
5147 Fyllingsdalen

Norway

Operator

Kristian Gerhard Jebsen Skipsrederi AS

Folke Bernadottes vei 38

5147 Fyllingsdalen

Bergen

Norway

Registered owner

SKS Obo & Tankers AS

Latest data adjustment

30 June 2016
