He Chi - IMO 9611682

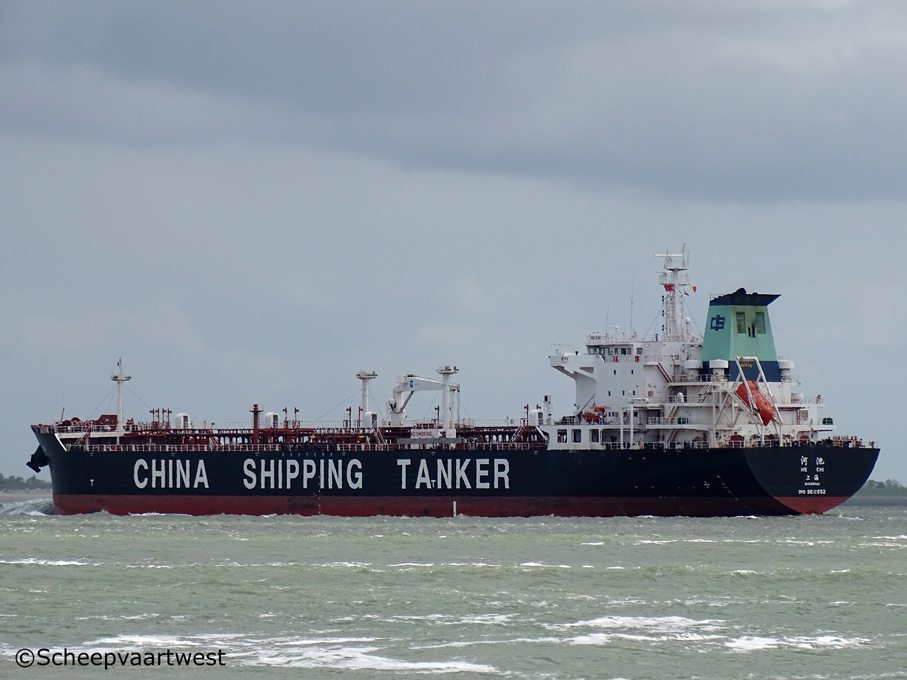

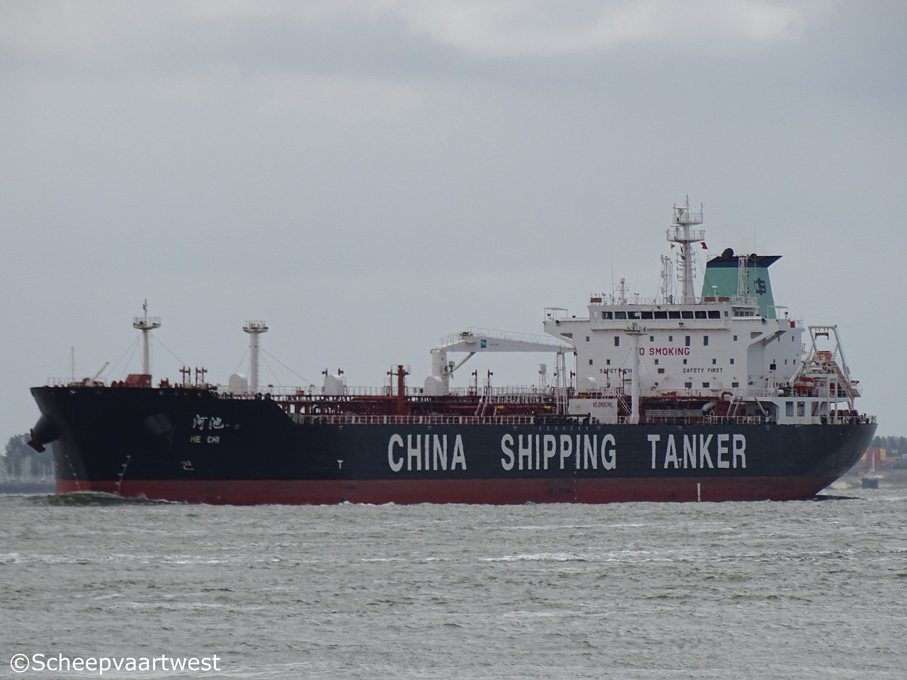

Westerschelde 14 May 2016

Name

HE CHI

Type

Crude oil tanker

IMO-number

9611682

Call sign

BPGI

Flag

China

Port of registry

Shanghai

GT

30.325 t

DWT

Summer: 48.698,3 t

NT

12.927 t

Length

184,88 m overall

176,00 m between perpendiculars

Breadth

32,23 m extreme

Draught

12,40 m

Deck house

8,80 m

Forecastle

15,60 m

Freeboard

6.913 mm

Depth

18,60 m moulded

Speed

14,6 knots

Built

2013

Date of completion

04.01.2013

Builder

Guangzhou Shipyard International Co., Ltd.
Guangzhou
China

Hull material

Steel

Hull type

Double hull

Number of bulkheads

9

Continuous decks

1

Main engine

1x MAN B&W 6S50MC-C MK8 - 6 cylinder 500 x 2.000 mm diesel engine 9.960 kw at 127,0 rpm

Built: 17.04.2012

Manufacturer: Dalian Marine Diesel Co., Ltd., Dalian - China

Propellers

1

Generators

3x Main diesel generatorsets each 750 kW - 450 Volt

Number of tanks

13

Cargo tank capacity

No.1 C.O.TK(P) - 3.207,6 m³
No.1 C.O.TK(S) - 3.190,9 m³
No.2 C.O.TK(P) - 4.801,3 m³
No.2 C.O.TK(S) - 4.809,6 m³
No.3 C.O.TK(P) - 4.853,1 m³
No.3 C.O.TK(S) - 4.861,5 m³
No.4 C.O.TK(P) - 4.853,1 m³
No.4 C.O.TK(S) - 4.861,5 m³
No.5 C.O.TK(P) - 4.853,1 m³
No.5 C.O.TK(S) - 4.861,5 m³
No.6 C.O.TK(P) - 3.842,8 m³
No.6 C.O.TK(S) - 3.859,5 m³

Total: 53.028,4 m³

Residual oil tank

172,90 m³

Tank capacities

Ballast: 20.048 m³

Lifting equipment

1x Crane - SWL 15,0 t

2x Crane - SWL 3,0 t

2x Crane - SWL 0,99 t

Manager

China Shipping Tanker Company Limited

118, Yuanshen Road, Pudong New District

Shanghai
China

Operator

China Shipping Tanker Company Limited

Group

China Shipping development Co. Ltd.

Latest data adjustment

24 June 2016
