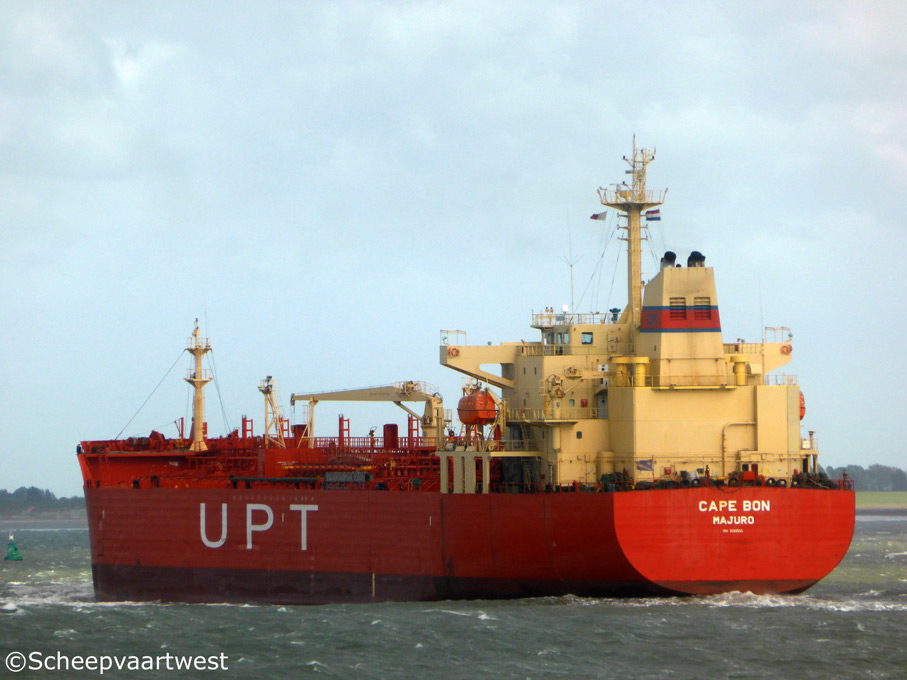

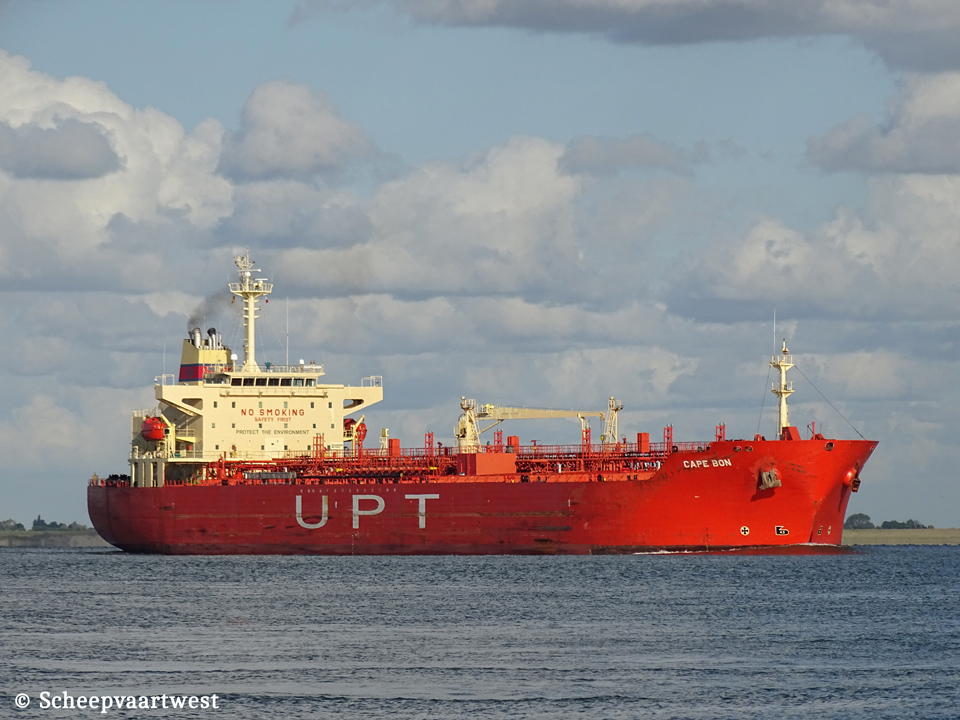

Westerschelde 10 August 2016 |
 |
|
| Westerschelde 10/05/14 | |
|
Name |
CAPE BON |
|
Previous names |
2003 - 01/2006 Cape Bond |
|
Type |
Chemical & Oil products tanker |
|
IMO-number |
9260055 |
|
Call sign |
V7EP3 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
25.108 t |
|
DWT |
39.999 t |
|
NT |
8.346 t Suez: 23.100 t Panama: 20.892 t |
|
Displacement |
43.777 t |
|
Length |
175,93 m overall 168,00 m between perpendiculars 169,63 m registered |
|
Breadth |
31,03 m extreme |
|
Draught |
Summer: 11,05 m |
|
Keel to mast end |
46,90 m |
|
Freeboard |
Summer: 6,76 m Winter: 7,17 m Light ship: 14,54 m |
|
Depth |
17,00 m moulded |
|
Speed |
Service: 14,0 knots |
|
Built |
2003 |
|
Keel laid |
05/02/2003 |
|
Launch date |
23/04/2003 |
|
Date of completion |
27/06/2003 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
0139 |
|
Hull material |
Shipbuilding Steel (Standard) |
|
Hull type |
Double hull Double bottom |
|
Bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W 6S50MC - 2 stroke 6 cylinder diesel engine 11.480 bhp / 8.561 kW at 127,0 rpm Builder: Hyundai Heavy Industries Co., Ltd. |
|
Propellers |
1x Fixed propeller (Keyless) |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated 1x Auxiliary boiler, oil/gas fired |
|
Generators |
3x MAN 6L23/30 diesel generatorsets each 1.046 bhp / 780 kW at 720 rpm |
|
Emergency generator |
1x Sisu diesel 634 DSBG diesel generatorset |
|
Cargo tanks |
42.697 m³ |
|
Slop tanks |
2.052 m³ |
|
Total tank capacity 98% |
44.749 m³ |
|
Segregations |
7 |
|
Tank coating |
Epoxy |
|
Pumps |
12x Cargo pumps 500 m³/h each 2x Cargo pumps 200 m³/h each |
|
Manifolds |
Bow to centre manifold: 89,93 m |
|
Tank capacities |
Ballast: 20.711 m³ Fuel: 1.472 m³ |
|
Anchor equipment |
Length: 632,50 m Diameter: 70 mm |
|
Lifting equipment |
1x Crane - SWL 10,0 t |
|
Manager |
Columbia Shipmanagement (Deutschland) GmbH 22767 Hamburg Germany |
|
Previous managers |
2003 - 2006 Columbia Shipmanagement Ltd. |
|
Operator |
UPT - United Product Tankers gmbH & Co. KG Rödingsmarkt 20 20459 Hamburg Germany |
|
Registered owner |
MT "CAPE BON" Tankschiffahrts GmbH & Co. KG Care of Columbia Shipmanagement (deutschland) Grosse Elbstrasse 275 22767 Hamburg Germany |
|
Latest data adjustment |
16 April 2016 |
