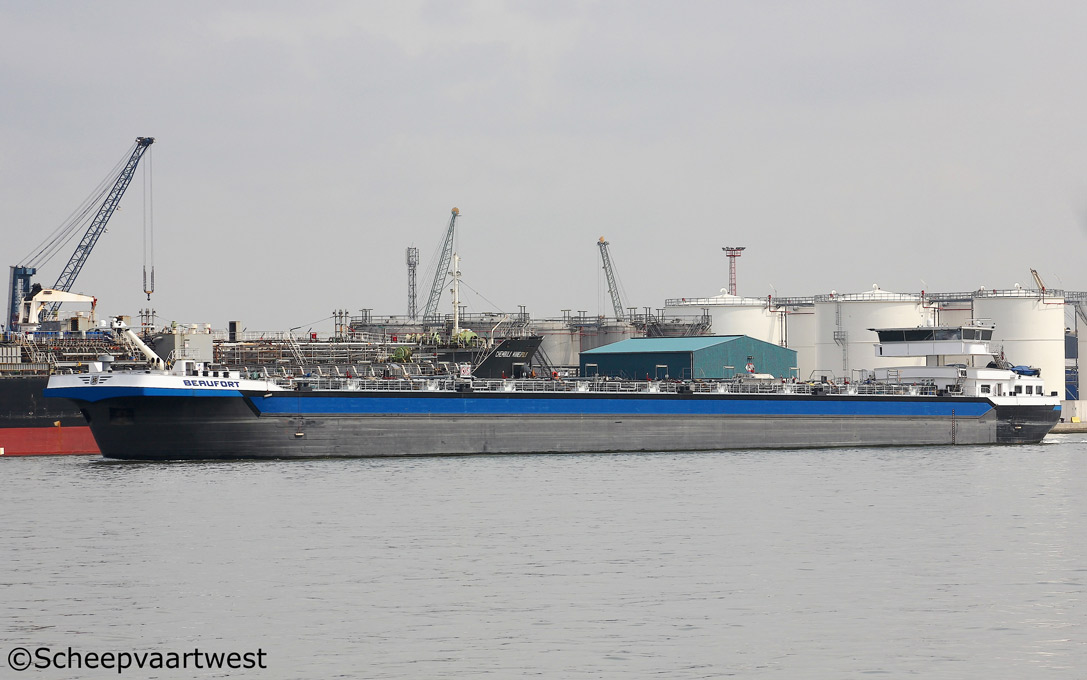

Beaufort 02

Antwerpen 11 November  2015

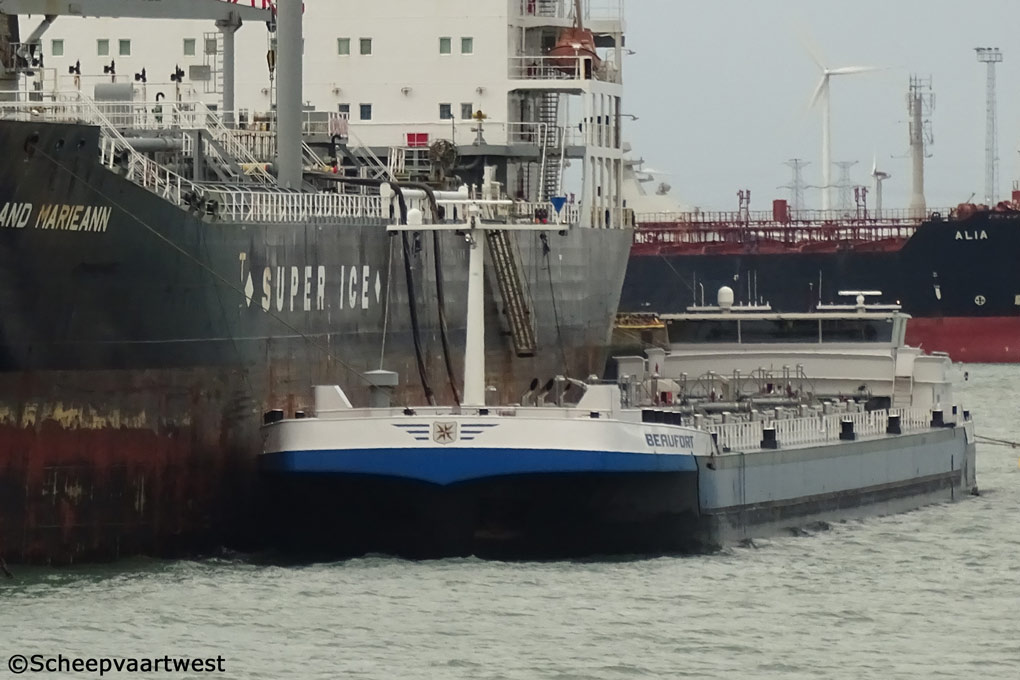

Beaufort 01
Vlissingen 07/11/15



Name

BEAUFORT

Type

Inland tanker

ENI-number

02333156

Call sign

HE7336

Flag

Switzerland

Port of registry

Basel

Tonnage

6.975 t

Length

135,00 m

Breadth

15,00 m

Draught

4,60 m

Built

2010

Date of completion

09.05.2010

Builder casco

Breko Marine Ltd.
Eregli
Turkey

Builder completion

Breko Scheepsbouw & Reparatie B.V.
Papendrecht
The Netherlands

Hull material

Steel

Hull type

Double hull

Main engine

2x ABC 6 MDZC - 6 cylinder diesel engines each 1.103 kW / 1.500 hp at 800 rpm

Builder: Anglo Belgian Corporation NV

Wiedauwkaai 43

9000 Gent
Belgium

Gearbox

2x Reintjes type WGF 763 - reduction: 3,007:1

Propellers

2x 5-Blades propellers - diameter 1.750 mm with nozzles Giessen Optima, diameter 1.816 mm

Generators

2x Cummins QSK19 M engines coupled with Marathon 573 RSL 4034 generator each 660 kVA

2x Cummins QSB5 G5 engines coupled with Marathon 363 CSL 1607 generator each 107 kVA

Bow thruster

2x Cummins 700 pk - Oudakker type OBS 1500-700E - 515 kW at 1.780 rpm

Diameter: 1.500 mm

Pumps

5x Bornemann type EPS400 capacity 400 m³/h each driven by electric motors each 125 kW

1x Bornemann type EPS10 capacity 10 m³/h driven by electric motor 7,5 kW

Cargo tank capacity 97%

7.045 m³

Operator

Unibarge B.V.

Maasboulevard 268
3331 ML Zwijndrecht

The Netherlands

Owner

Beaufort - Trans AG

Gellertstrasse 97
Basel
Switzerland

Latest data adjustment

23 November 2015
