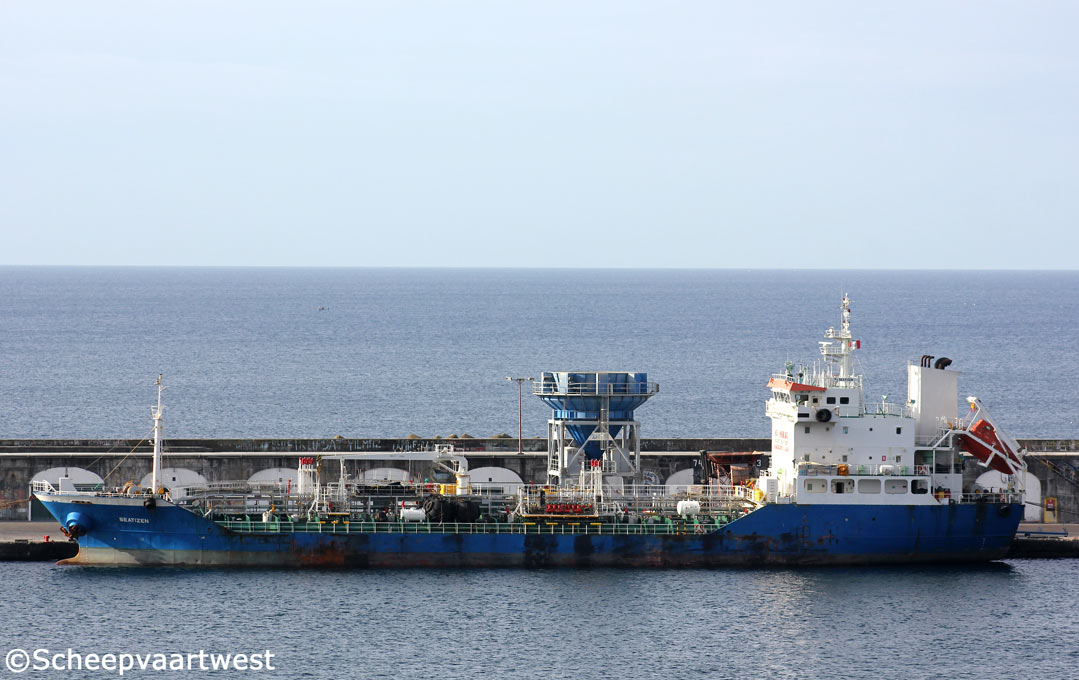

Ponta Delgada, Azores 12 June 2015 |
|
Name |
SEATIZEN |
|
Previous names |
2002 - 01.2006 Samho Triton |
|
Type |
Tanker for Chemicals & Oil Products |
|
IMO-number |
9253997 |
|
Call sign |
V7JL5 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
2.440 t |
|
DWT |
Summer: 3.447 t |
|
NT |
1.084 t |
|
Length |
87,31 m overall 79,80 m between perpendiculars 80,00 m registered |
|
Breadth |
14,00 m extreme |
|
Draught |
5,80 m |
|
Keel to masthead |
29,50 m |
|
Air draft |
Lightship: 27,44 m Normal ballast: 25,80 m At loaded summer deadweight: 23,69 m |
|
Freeboard |
Summer: 1.510 mm Winter: 1.631 mm Lightship: 5.259 mm Tropical: 1.289 mm |
|
Depth |
7,30 m moulded |
|
Speed |
12,3 knots |
|
Built |
2002 |
|
Keel laid |
18.06.2001 |
|
Launch date |
19.02.2002 |
|
Date of completion |
18.04.2002 |
|
Builder |
Samho Shipyard Co., Ltd. |
|
Yard number |
SH-1034 |
|
Hull material |
Steel |
|
Hull type |
Double hull Double bottom |
|
Watertight bulkheads |
10 |
|
Continuous decks |
1 |
|
|
1x 8L28/32A - 4 stroke 8 cylinder 280 x 320 mm diesel engine - 1.960 kW at 775 rpm Year of manufacture: 2001 Manufacturer: Ssangyong Heavy Industries Co., Ltd. |
|
Propellers |
1x Solid propeller - aft at 260 rpm |
|
Boilers |
1x Steam boiler, oil fired - 8,0 bar Heating surface: 53,6 m² 1x Steam boiler, exhaust gas heated - 10,5 bar Heating surface: 25,5 m² Year of manufacture: 2001 Manufacturer: Miura Co., Ltd. |
|
Electric installations |
3x Plants each 440 V - 327 kVA |
|
Generators |
3x Main diesel generatorsets each 327 kVA |
|
Compressed air receivers |
1x Receiver 2.000 litres - 30,0 bar 2x Receivers each 400 litres - 30,0 bar |
|
Bow thruster |
1x Bow thruster 200 kW / 268 bhp, forward |
|
Number of tanks |
10 |
|
Cargo tanks capacity 98% |
Group 1: 385,112 m³ Group 2: 832,348 m³ Group 3: 853,578 m³ Group 4: 852,99 m³ Group 5: 800,43 m³ Total: 3.724 m³ excluding slop tanks |
|
Slop tanks 98% |
128 m³ |
|
Tank coating |
Cargo tanks: Zinc coated Ballast tanks: Epoxy coated Slop tanks: Zinc coated |
|
Pumps |
10x Framo submerged cargo pumps each 200 m³/h 1x Framo ballast pump 200 m³/h |
|
Manifolds |
Bow to centre manifold: 46,06 m Stern to centre manifold: 41,00 m Distance bridge front to centre of manifold: 21,00 m Distance between cargo manifold centres: 4.130 mm Distance ships rail to manifold: 2.500 mm Distance manifold to ships side: 2.800 mm Top of rail to centre of manifold: 900 mm Distance main deck to centre of manifold: 2.000 mm |
|
Anchor equipment |
3x Anchors weight each 2.100 kg Chain length: 440,00 m |
|
Lifting equipment |
1x Crane - SWL 1,6 t midships at centreline Maximum outreach: 2,00 m |
|
Manager |
Coral Shipping Corp. |
|
Technical & Commercial operator |
Coral Shipping Corp. |
|
Owner |
Fortland Maritime Corp. |
|
Registered owner |
Fortland Maritime Corp. |
|
Latest data adjustment |
08 July 2015 |
