Antwerpen 30 July 2014 |
 |
 |
 |
||
| Antwerpen 30/07/14 | Antwerpen 14/07/16 | Antwerpen 06/02/17 | ||
|
Name |

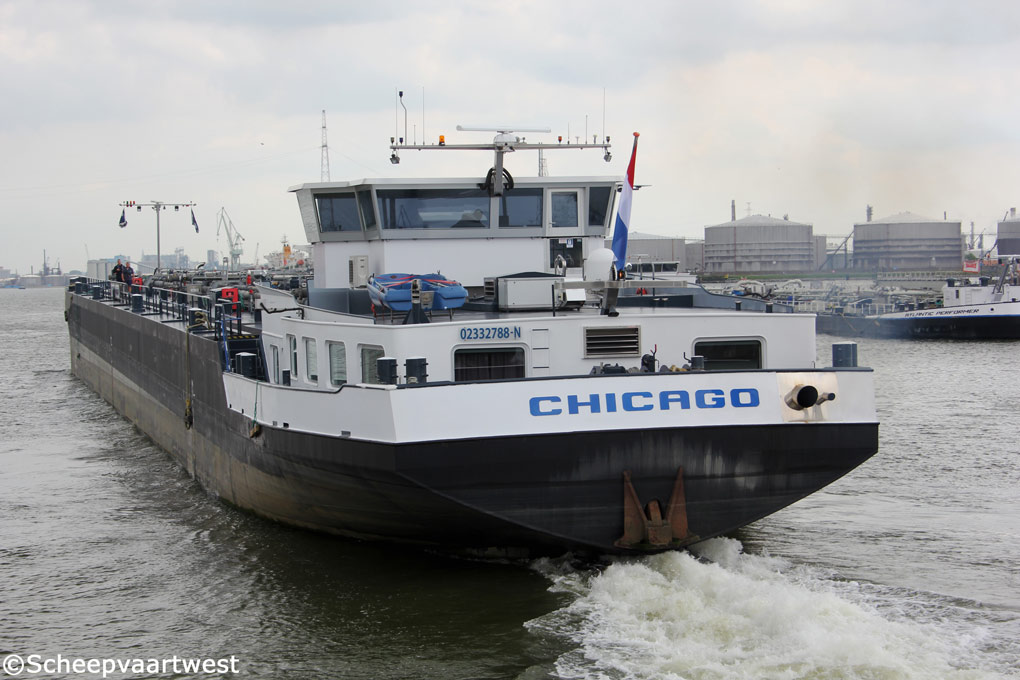

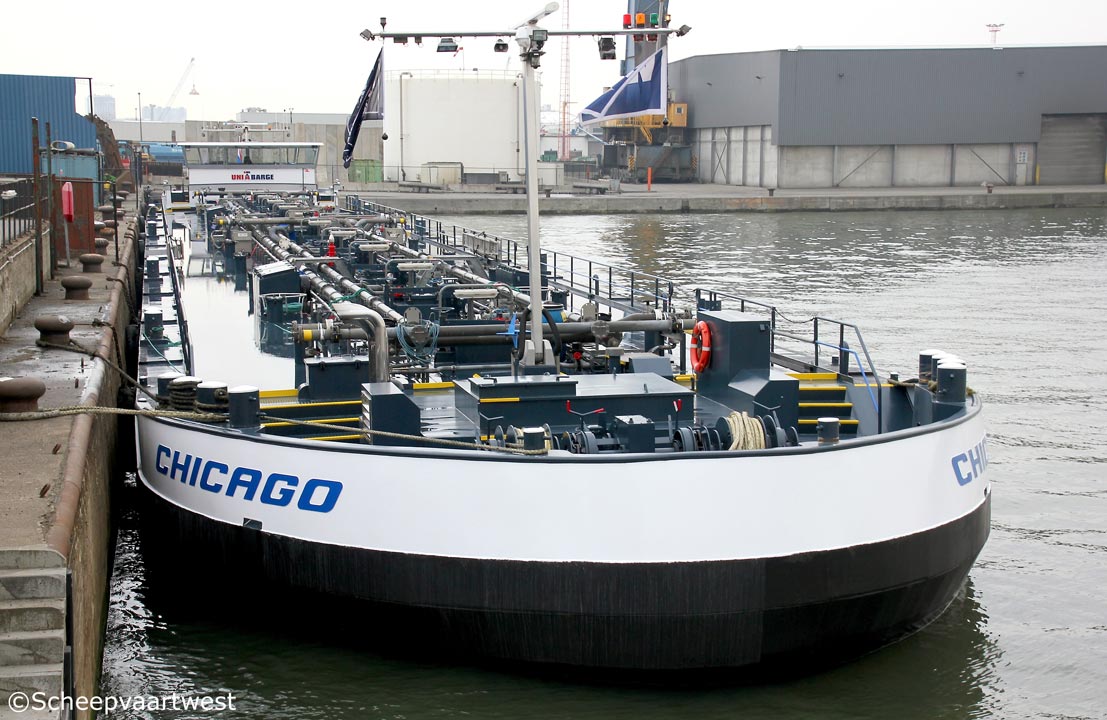

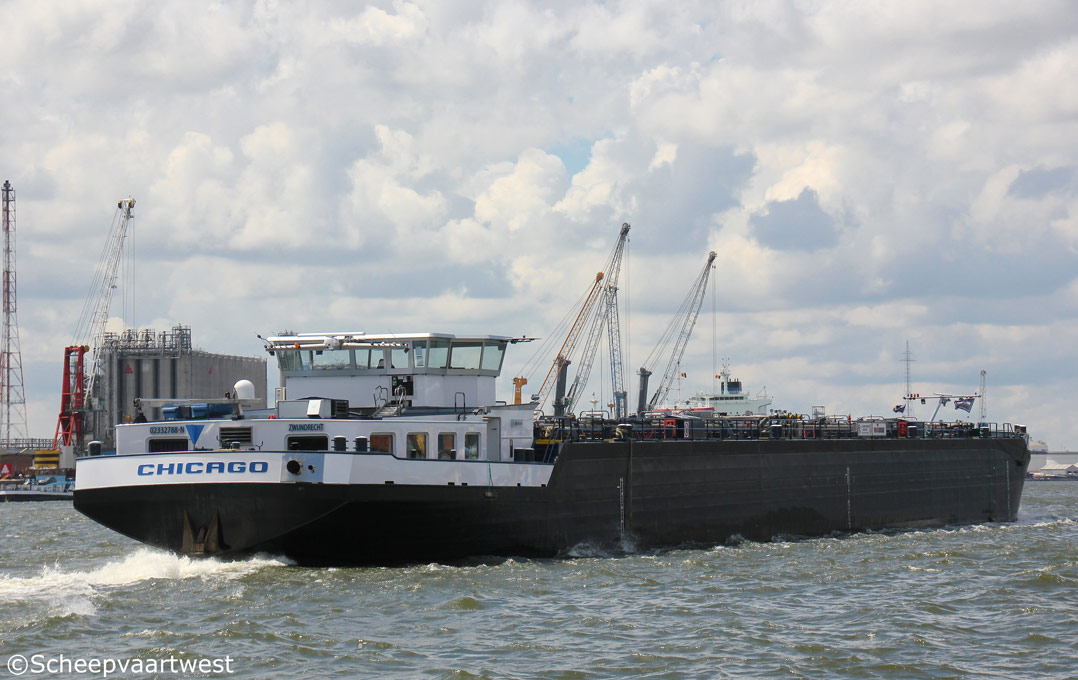

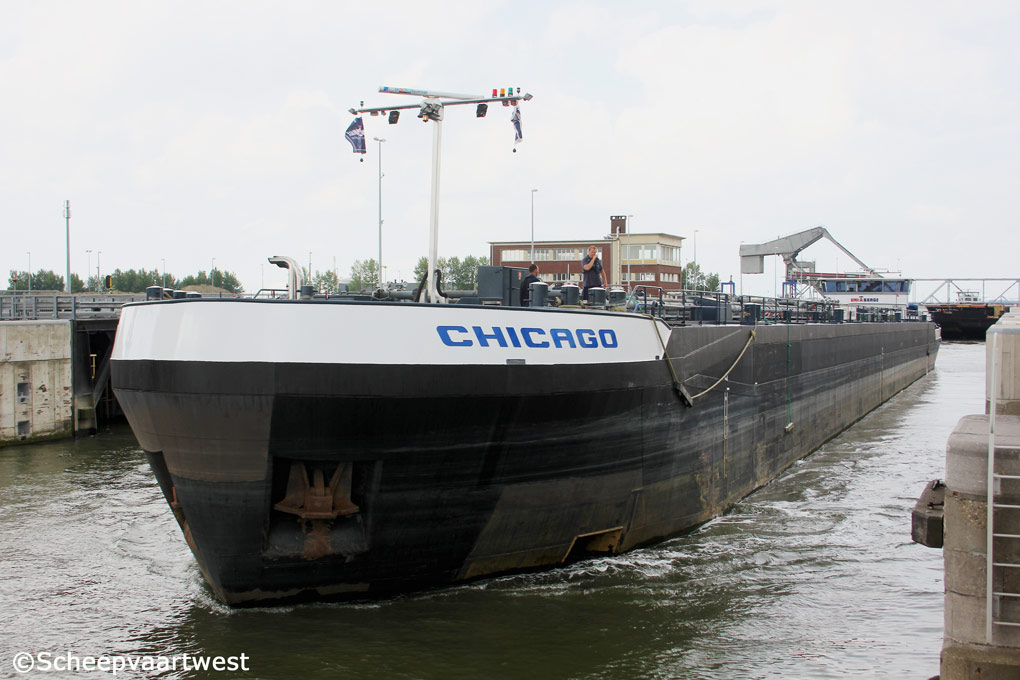

CHICAGO |
|
Type |
Inland tanker |
|
ENI-number |
02332788 |
|
Call sign |
PB5311 |
|
Flag |
The Netherlands |
|
Port of registry |
Zwijndrecht |
|
Tonnage |
3.257 t |
|
Length |
110,00 m |
|
Breadth |
11,45 m |
|
Draught |
3,68 m |
|
Depth |
4,80 m |
|
Built |
2009 |
|
Builder casco |
Nantong Hongqiang Shipyard |
|
Builder completion |
Bijlsma Shipyard |
|
Hull material |
Steel |
|
Main engine |
1x Caterpillar 3512 (C) DI-TA electronic - 1.323 kW / 1.800 hp at 1.600 rpm |
|
Propellers |
1 Diameter: 1.750 mm - 5 blades |
|
Generators |
1x Caterpillar C18 ACERT engine coupled with Marathon 572 RSL 4030 generator 525 kVA 1x Perkins 4.4 TW2GM engine coupled with Marathon 363 PSL 1607 generator 107 kVA 1x John Deere 4045 TFU70engine coupled with Marathon 362 CSL 1604 generator 63 kVA |
|
Bow thruster |
1x Caterpillar 510 pk- Verhaar Omega 31130-4k - 375 kW at 1.780 rpm |
|
Tank capacity 97% |
3.653 m³ |
|
Pumps |
10x Marflex cargo pumps type MDPD-80 |
|
Manager |
Unibarge B.V. |
|
Owner |
Vancouver BV |
|
Latest data adjustment |
19 December 2014 |
