Westerschelde 02 August 2014 |
|
Name |

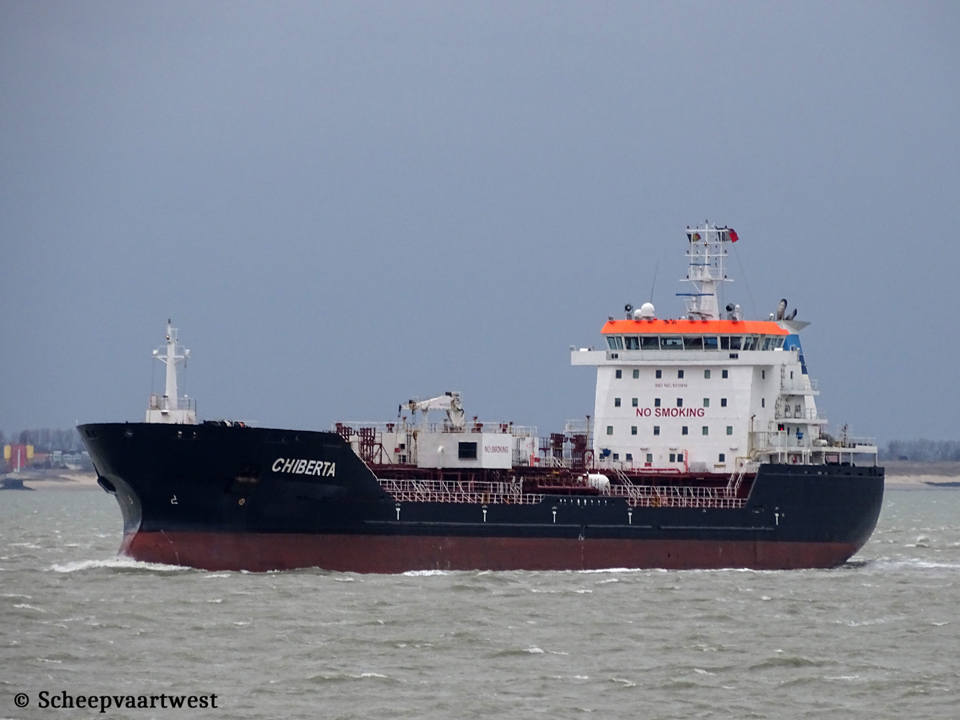

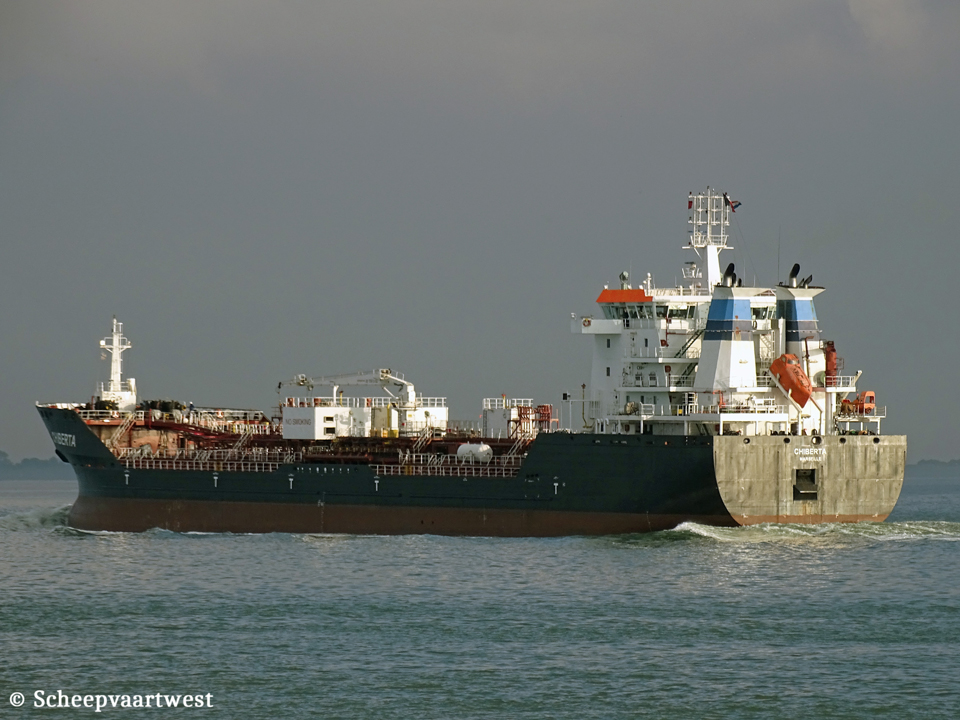

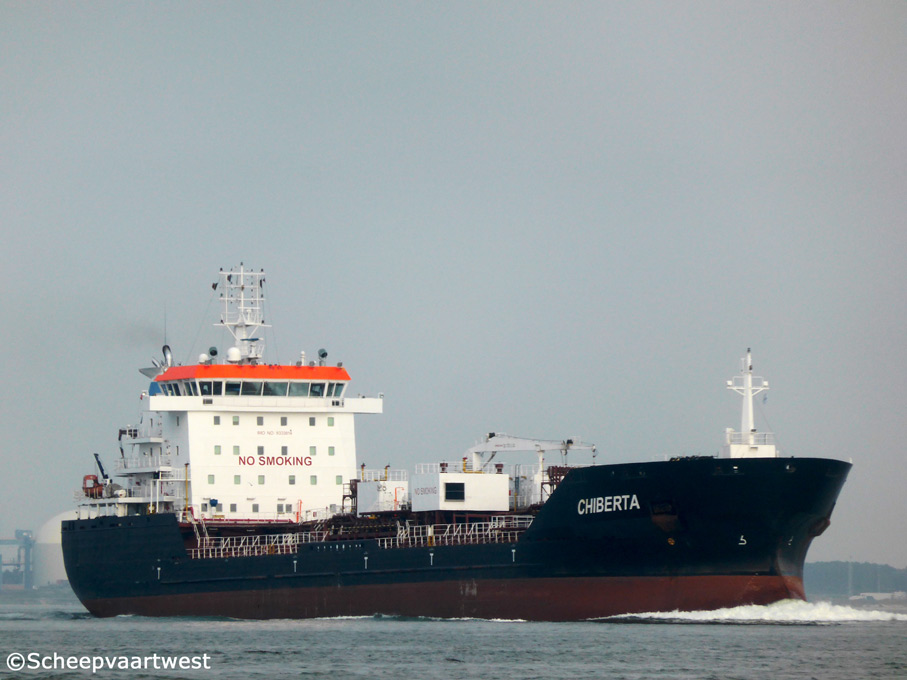

CHIBERTA |
|
Type |
Oil / Chemical tanker |
|
IMO-number |
9333814 |
|
Call sign |
FMLN |
|
Flag |
France |
|
Port of registry |
Marseille |
|
GT |
11.799 t |
|
DWT |
Summer: 18.769 t Winter: 18.203 t Tropical: 19.333 t |
|
NT |
5.692 t |
|
Length |
143,29 m overall 135,80 m between perpendiculars |
|
Breadth |
23,00 m |
|
Draught |
Summer: 8,89 m Winter: 8,75 m Tropical: 9,08 m |
|
Keel to mast |
40,50 m |
|
Depth |
11,80 m |
|
Speed |
13,5 knots |
|
Built |
2007 |
|
Date of completion |
07.11.2007 |
|
Builder |
RMK Marine Shipyard |
|
Yard number |
66 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
2x Wärtsilä 8L32 - 4 stroke 8 cylinder diesel engines total 8.000 kW / 10.870 hp |
|
Propellers |
2x Screw propeller controllable pitch - 4 bladed |
|
Boilers |
2x CHO 109,00 m² - 10,0 bar |
|
Shaft generator |
2x 2.300 kW |
|
Generators |
2x Diesel generatorset 535 kVA - 428 kW - 582 hp |
|
Bow thruster |
1x 900 kW |
|
Number of tanks |
12x Main cargo tanks and 2x slop tanks epoxy coated |
|
Segregations |
6 1P + 1S: 3.063 m³ 2P + 2S: 3.641 m³ 3P + 3S: 3.040 m³ 4P + 4S: 3.360 m³ 5P + 5S: 3.360 m³ 6P + 6S: 2.530 m³ Total 18.994 m³ at 98% |
|
Slop tank 98% |
475 m³ |
|
Total cargo capacity 98% |
19.469 m³ |
|
Pumps |
12x Pumps each 335 m³/h submerged pumps at 7,0 bar |
|
Tank capacities |
Fuel oil: 380 t Gasoil: 140 t Fresh water: 100 t Lub oil: 60 t |
|
Manager |
St Management |
|
Disponent owner |
SEA-tankers Shipping 7 rue du Golf - Parc Innolin |
|
Latest data adjustment |
30 August 2014 |
