Westerschelde 05 October 2014 |
|
Name |

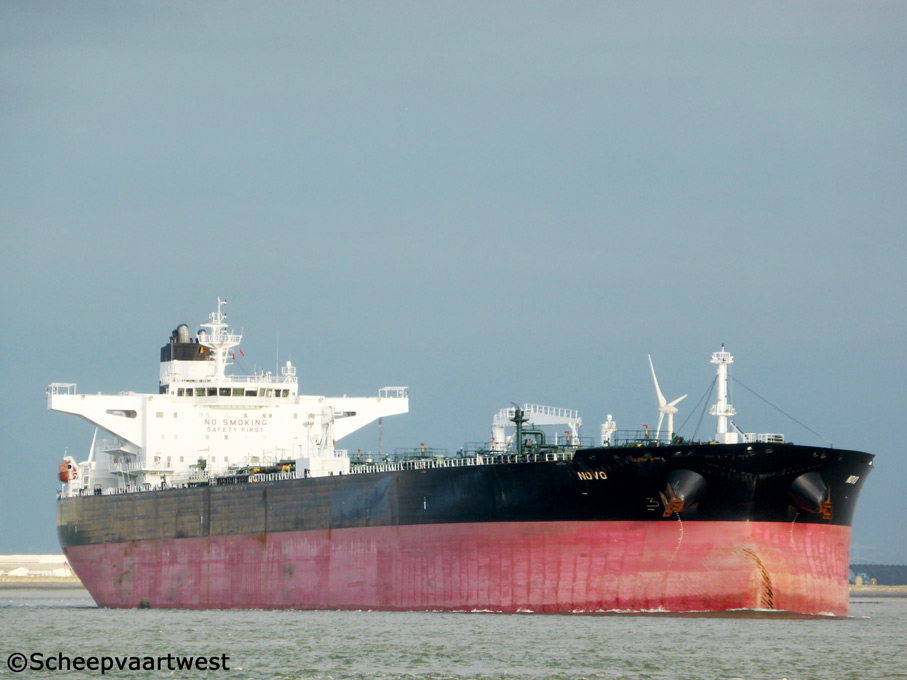

NOVO |
|
Type |
Crude oil tanker |
|
IMO-number |
9633446 |
|
Call sign |
9HA3042 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
85.436 t registered Suez: 85.533,87 t |
|
DWT |
Summer: 149.999 t |
|
NT |
47.454 t registered Suez: 80.249,41 t |
|
Length |
274,20 m overall 264,00 m between perpendiculars |
|
Breadth |
50,00 m moulded |
|
Draught |
14,20 m |
|
Freeboard |
7.198 mm |
|
Depth |
23,20 m moulded |
|
Built |
2012 |
|
Keel laid |
12.08.2011 |
|
Launch date |
27.04.2012 |
|
Date of completion |
30.08.2012 |
|
Builder |
New Times Shipbuilding Co., Ltd. |
|
Yard number |
0316314 |
|
Hull material |
Ordinary strength steel High strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 5 Oil tight: 7 |
|
Main engine |
1x 6S70MC-C7 - 6 cylinder 700 x 2.800 mm diesel engine - 18.660 kW at 91,0 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Wärtsilä Cme Zhenjiang Propeller Co., Ltd. |
|
Boilers |
1x Fired exhaust gas (Composite) boiler - 9,0 bar 2x Fired Boiler - 18,0 bar each Manufacturer: Alfa Laval Qingdao Ltd. |
|
Generators |
3x Main diesel generatorsets TAIYO FE 553B-10 each 950 kW Manufacturer: Taiyo Electric Co., Ltd. |
|
Number of cargo tanks |
15 |
|
Cargo oil capacity |
181.521,71 m³ / 17.7891,28 t |
|
Number of tanks |
Ballast: 14 Lubricating Oil: 10 Fuel Oil: 9 Fresh Water: 4 Diesel Oil: 4 Waste Water: 3 Sludge: 2 Chain: 2 Slop: 2 |
|
Tank capacities |
Diesel Oil: 383,60 m³ / 338,29 t Freshwater: 545,20 m³ Fuel Oil: 4.272,70 m³ / 4.187,24 t Lube Oil: 446,50 m³ / 401,85 t Tank Ballast: 55.698,50 m³ / 57.090,96 t |
|
Lifting equipment |
1x Engine room crane - SWL 6,3 t Manufacture: Jiangsu Bolin Machinery Manufacture Co., Ltd. 2x Hose handling crane - SWL 20,0 t each Manufacture: TTS Bohai Machinery Dalian Co Ltd. 2x Provision crane - SWL 6,3 t each Manufacture: Jiangsu Bolin Machinery Manufacture Co., Ltd. |
|
Manager |
Dynacom Tankers Management |
|
Operator |
Alta Ltd. |
|
Registered owner |
Alta Ltd. |
|
Latest data adjustment |
22 November 2014 |
