Antwerpen 27 August 2014 |
|
Name |

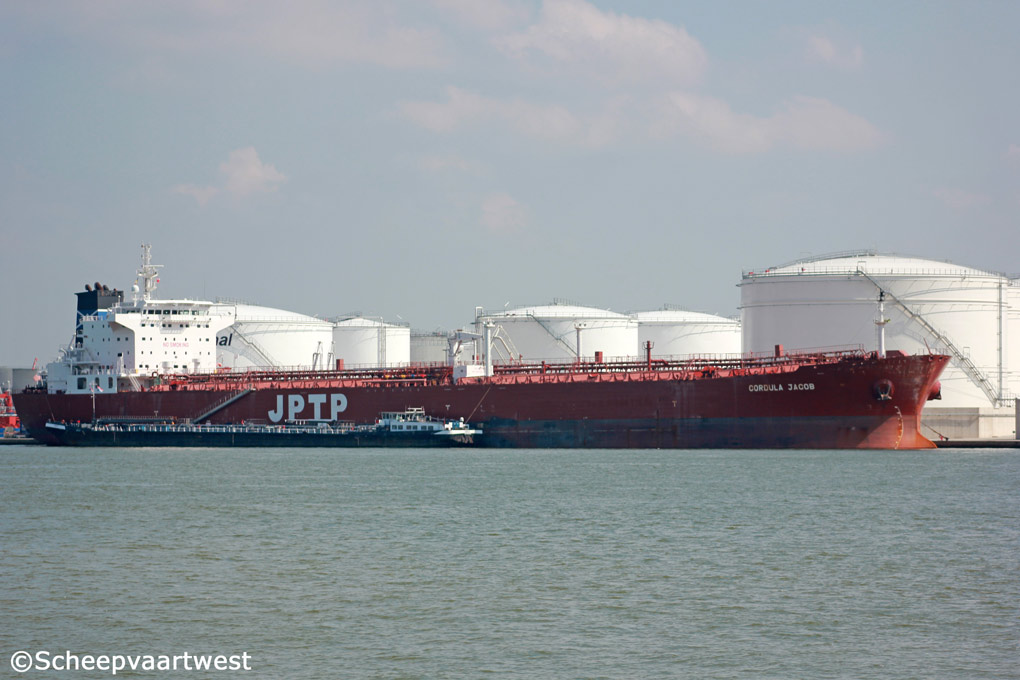

CORDULA JACOB |
|
Type |
Crude and oil products carrier |
|
IMO-number |
9482873 |
|
Call sign |
A8XG7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
43.904 t registered Suez: 45.933 t |
|
DWT |
Summer: 75.518 t |
|
NT |
21.967 t registered Suez: 40.819 t |
|
Light ship weight |
15.751 t |
|
Length |
228,60 m overall 221,21 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
12,80 m |
|
Freeboard |
6.515 mm |
|
Depth |
21,20 m moulded |
|
Built |
2012 |
|
Keel laid |
11.11.2011 |
|
Date of completion |
18.06.2012 |
|
Builder |
Dalian Shipbuilding Industry Group Co., Ltd. |
|
Yard number |
PC760-22 |
|
Hull material |
Ordinary strength steel High strength steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
12 |
|
Main engine |
1x DMD/MAN B&W 6S60MC - 6 cylinder 600 x 2.790 mm diesel engine - 12.240 kW at 105,0 rpm Manufacturer: Dalian Marine Diesel Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller - 4 Blades, right handed - aluminium bronze, diameter 7,00 m Manufacturer: Dalian Marine Propeller Co., Ltd. |
|
Boilers |
2x Auxiliary fired boiler Mission OL Manufacturer: Aalborg Industries 1x Waste heat boiler |
|
Generators |
3x Yanmar 6N21AL-UV main diesel generatorsets each 740 kW |
|
Number of oil cargo tanks |
12 |
|
Cargo oil capacity 98% |
76.415,1 m³ / 74.886,79 t including slop tank: 83.687 m³ |
|
Number of slop tanks |
2 |
|
ROT tank |
215 m³ |
|
Number of cargo pumps |
3x Centrifugal pump steam driven |
|
Discharge capacity |
6.000 m³/h |
|
Number of ballast pumps |
2x Centrifugal pump 1.000 m³ electric motor driven |
|
Number of tanks |
Ballast: 18 Fuel oil: 9 Lubricating: Oil8 Fresh water: 4 Waste water: 3 Diesel oil: 3 Chain: 2 Sludge: 2 Sewage: 1 |
|
Tank capacities |
Diesel oil: 223,30 m³ / 212,13 t Freshwater: 351,10 m³ Fuel oil: 2.512,40 m³ / 2.462,15 t Lube oil : 191,80 m³ / 182,21 t Tank ballast: 28.972,30 m³ / 29.696,60 t |
|
Lifting equipment |
1x Crane - SWL 15,0 t |
|
Manager |
Jacob Tank Vierte Beteiligungsgesellschaft MBH & C c/o Ernst Jacob GmbH & CO. KG |
|
Operator |
JPTP |
|
Owner |
Cordula Jacob Shipping Ltd. |
|
Registered owner |
Jacob Tank Vierte Beteiligungsgesellschaft MBH & C |
|
Latest data adjustment |
10 October 2014 |
