Westerschelde 30 July 2014 |
|
Name |

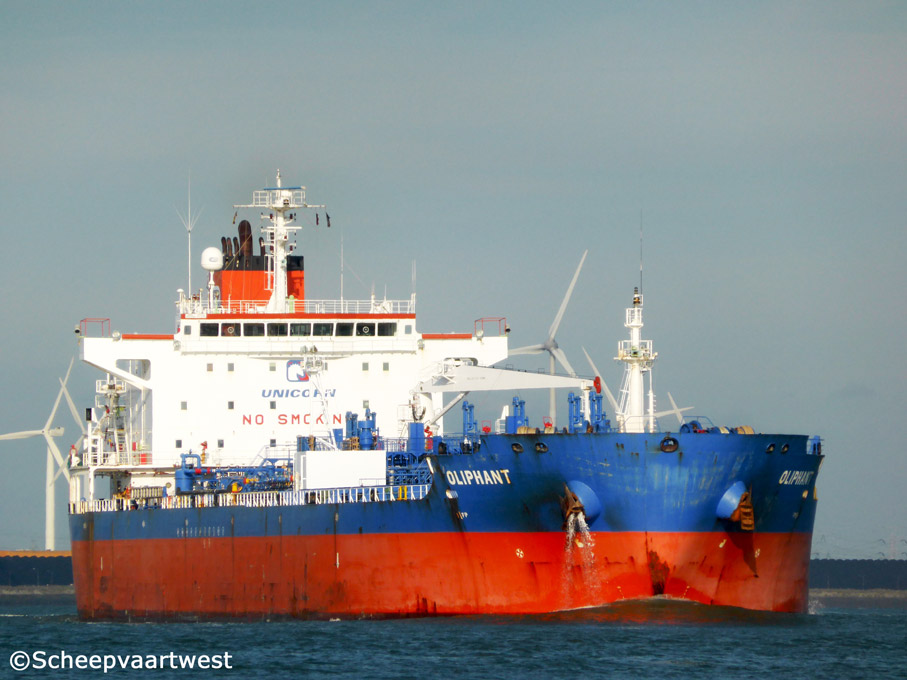

OLIPHANT |
|
Previous names |
2004 - 09.2006 Oliphant 2006 - 04.2009 Stena Tiger |
|
Type |
Oil and chemical carrier |
|
IMO-number |
9286061 |
|
Call sign |
9V8855 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
Previous flags |
13.12.2004 - 24.02.2011 United Kingdom, London |
|
GT |
25.400 t registered Suez: 26.804,41 t |
|
DWT |
Summer: 40.000 t |
|
NT |
8.905 t registered Panama: 21.131 t Suez: 22.525,2 t |
|
Length |
175,96 m overall |
|
Breadth |
31,00 m |
|
Draught |
11,11 m |
|
Freeboard |
6.114 mm |
|
Depth |
17,20 m |
|
Speed |
15,0 knots |
|
Built |
2004 |
|
Keel laid |
05.07.2004 |
|
Launch date |
24.09.2004 |
|
Date of completion |
13.12.2004 |
|
Builder |
Shinasb Yard Co. Ltd. |
|
Yard number |
SAS-434 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 4 Oil tight: 9 |
|
Main engine |
1x STX MAN B&W 6S50MC-C - 6 cylinder 500 x 1.910 mm diesel engine - 8.561 kW at 127,0 rpm Manufacturer: HSD Engine Co., Ltd. |
|
Propellers |
1 |
|
Boilers |
Composite boiler - 9,0 bar Auxiliary boiler - 9,0 bar Manufacturer: Tongil Boiler & Industries Co. |
|
Generators |
4x Yanmar 6N21L-EV diesel engines coupled with FE547C-10 generators each 740 kW Manufacturer: Taiyo Electric Co. |
|
Number of cargo tanks |
12 + 2 slop |
|
Number of segregations |
6 |
|
Cargo tank capacity |
43.809,51 m³ / 42.933,31 t |
|
Number of tanks |
Ballast: 14 Lubricating oil: 9 Fuel oil: 7 Fresh water: 4 Diesel oil: 4 Sludge: 3 Chain: 2 Slop: 2 Waste water: 1 |
|
Tank capacities |
Diesel oil: 233,14 m³ / 198,71 t Freshwater: 286,10 m³ Fuel oil: 1.521,57 m³ / 1.490.59 t Lube oil: 112,60 m³ / 101,34 t Tank ballast: 20.673,09 m³ / 21.189,91 t |
|
Lifting equipment |
1x Engine room overhead crane - SWL 2,5 t 1x Hose handling crane - SWL 10,0 t 2x Provision handling crane - SWL 3,0 t Manufacture: Dongnam Enterprise Co. |
|
Crew |
20 |
|
Manager |
Unicorn Shipping a Division of Grindrod (South Africa) |
|
Registered owner |
Unicorn Tanker Operations (434) Pte Ltd. |
|
Latest data adjustment |
28 September 2014 |
