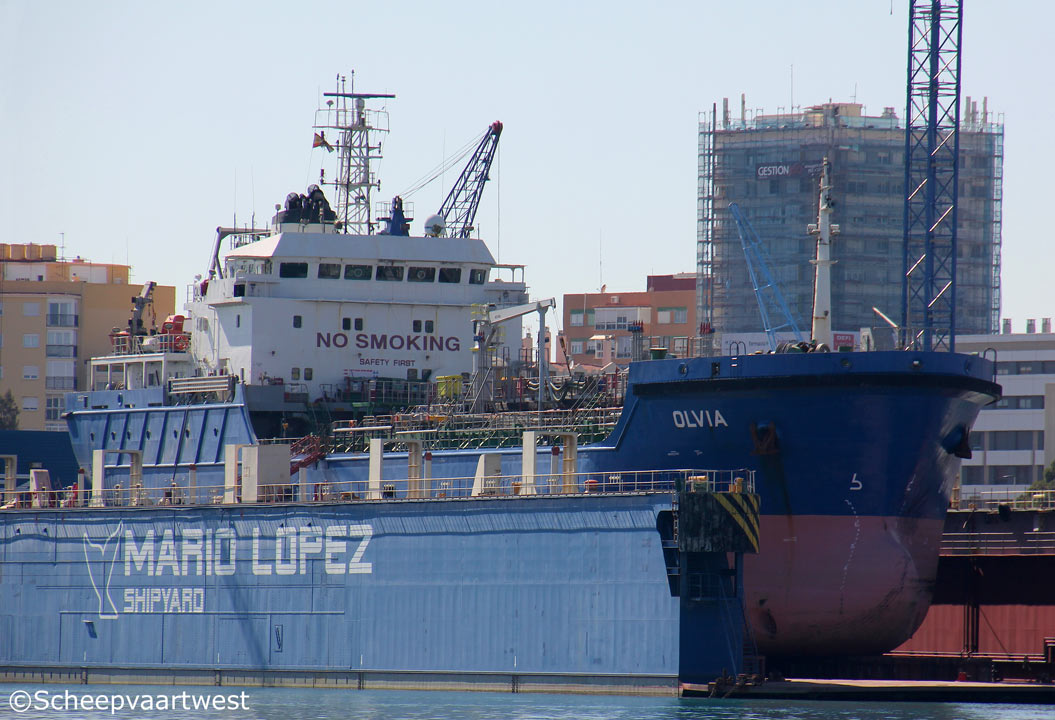

Malaga, Spain 19 March 2017 |
 |
| Malaga, Spain 19/03/17 |
|
Name |
OLVIA |
|
Type |
Oil tanker/Chemical tanker |
|
IMO-number |
9523469 |
|
Call sign |
5BKE4 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
Previous flags |
09.2011 - 11.2015 Marshall islands, Majuro - Call sign: V7PH5 |
|
GT |
5.034 t registered Suez: 5.427,6 t |
|
DWT |
Summer: 6.352,2 t |
|
NT |
1.686 t registered Panama: 4?288 t Suez: 4.211,6 t |
|
Light ship |
2.806,2 t |
|
Displacement |
9.158,4 t |
|
Length |
99,60 m overall 94,00 m between perpendiculars |
|
Breadth |
18,00 m moulded |
|
Draught |
Summer: 6,51 m |
|
Freeboard |
3.111 mm |
|
Depth |
9,60 m moulded |
|
Speed |
11,0 knots laden 12,0 knots ballast |
|
Built |
2011 |
|
Keel laid |
22.09.2008 |
|
Launch date |
13.04.2009 |
|
Date of completion |
19.09.2011 |
|
Builder |
Zhenjiang Sopo Shipbuilding Co., Ltd. |
|
Yard number |
SP11 |
|
Hull material |
Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 6 Gas tight: 1 Oil tight: 8 |
|
Main engine |
1x MaK 9M25 - 9 cylinder 225 x 400 mm diesel engine 2.970 kW at 750 rpm Manufacturer: Caterpillar Motoren GmbH |
|
Propellers |
1x Manufacturer: Zhenjiang Tongzhou Propeller Co., Ltd. |
|
Boilers |
1x Fired boiler - 7,0 bar 1x Unfired exhaust gas boiler - 7,0 bar Manufacturer: Zhangjiagang Greens Shazhou Boiler Co., Ltd. |
|
Generators |
3x Cummins KTA 19-(D)M diesel engines each 463 kW at 1.800 rpm coupled with 3 alternators each 350 kW Manufacturer: Wuxi Newage Alternators Ltd. |
|
Bow thruster |
1x Brunvoll FU-37-LTC-1000 - 250 KW at 1.785 rpm |
|
Number of cargo tanks |
14 |
|
Cargo tank capacity 100% |
7.344,9 m³ |
|
Pumps |
2x Tianjing pump works, screw cargo pumps W8-4ZK each 750 m³/h - 9,0 bar 1x Tianjing pump works, screw cargo pump W7T.2ZK - 300 m³/h - 9,0 bar 1x Boremann screw cargo pump - 300 m³/h - 9,0 bar 2x Ballast pumps each 300 m³/h |
|
Number of tanks |
Ballast: 17 Fuel oil: 6 Fresh water: 5 Lubricating oil: 5 Diesel oil: 2 Waste water: 1 Chain: 1 Sludge: 1 |
|
Tank capacities 100% |
Diesel Oil: 130,90 m³ Freshwater: 222,2 m³ Lube Oil: 60,2 m³ Fuel oil: 300,46 m³ Tank Ballast: 2.995 m³ |
|
Owner |
Petronav Shipmanagement Ltd. |
|
Registered owner |
Zendolphin Marine S.A. |
|
Latest data adjustment |
20 April 2017 |
