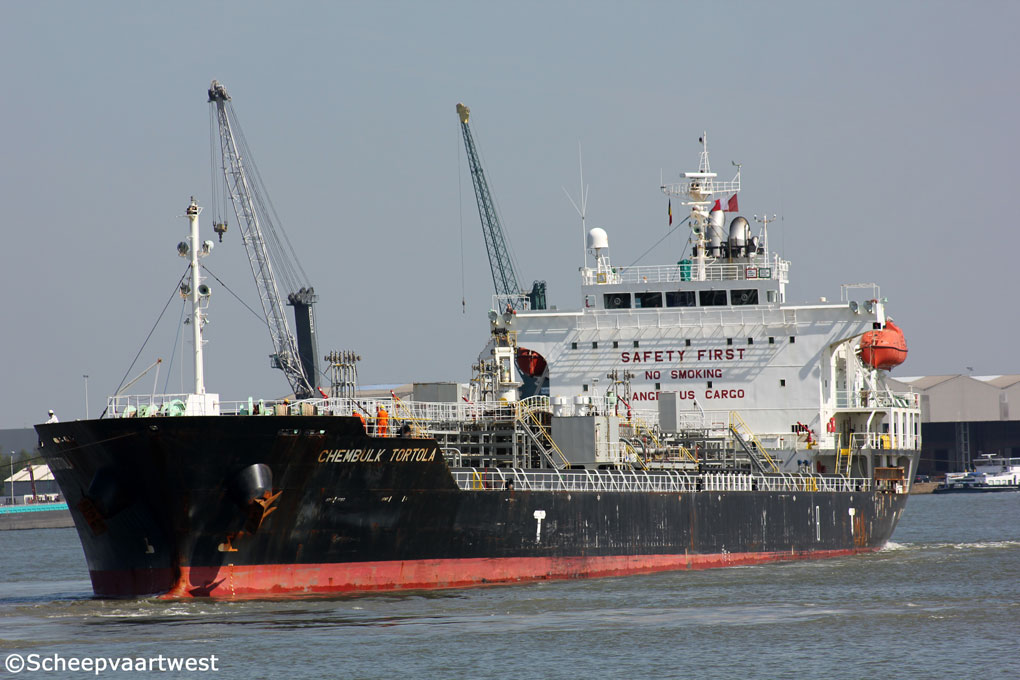

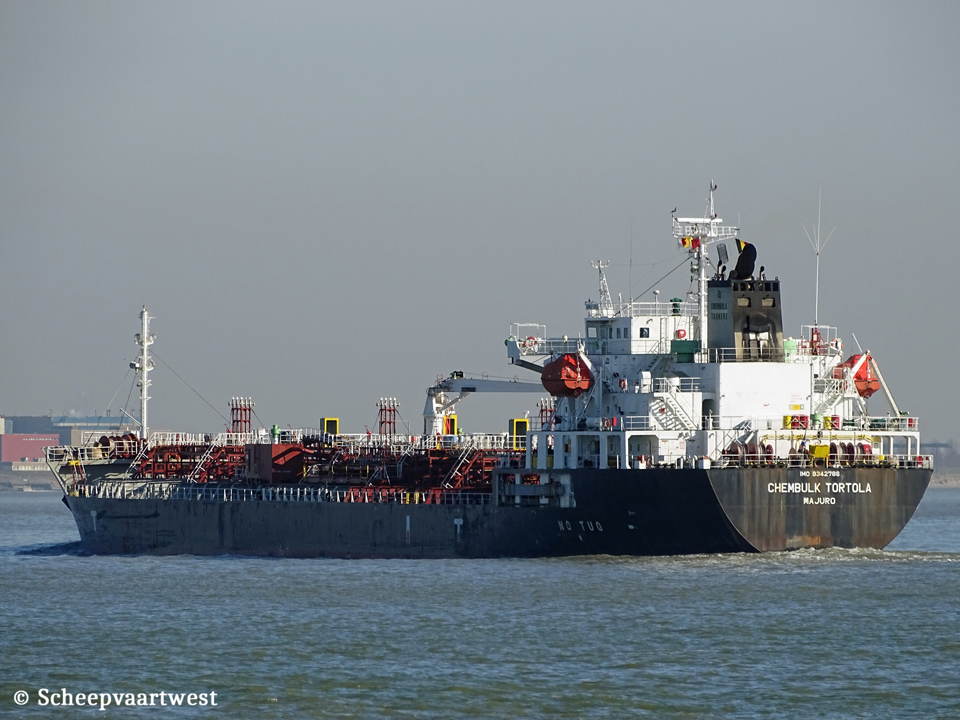

Chembulk Tortola - IMO 9342786

Antwerpen 16 April 2014

Name

CHEMBULK TORTOLA

Type

Oil & Chemical tanker

IMO-number

9342786

Call sign

3EJS2

Flag

Republic of Panama

Port of registry

Panama City

GT

11.534 m

Suez: 12.073,3 t

DWT

Summer: 20.809,23 t

NT

6.369 t

Panama: 9.706 t

Length

141,00 m overall

Breadth

24,20 m moulded

Draught

Summer: 10,01 m

Moulded L x B x D

133,00 x 24,20 x 13,20 m

Registered L x B x D

133,21 x 24,20 x 13,20 m

Keel to masthead

34,02 m

Air draft

28,02 m in ballast

Freeboard

Summer: 3.217 mm

Winter: 3.425 mm

Depth

13,20 m moulded

Speed

14,0 knots

Built

2007

Keel laid

11.10.2006

Launch date

17.01.2007

Date of completion

30.03.2007

Builder

Kitanihon Shipbuilding Co., Ltd.

Hachinohe
Japan

Yard number

368

Hull material

Steel

Hull type

Double hull

Main engine

1x 2 stroke single acting 7 cylinder 450 x 1.350 mm diesel engine - 6.230 kW at 158,0 rpm

Manufacturer: Akasaka Diesels Co.,Ltd., Shizuoka - Japan

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 390 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 9,0 bar

Evaporation: 15,91 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Generators 1.786 kVA

Cargo tank capacity 98%

21.574,22 m³

Pumps

14x Centrifugal cargo pumps each 250 m³/h

2x Centrifugal ballast pump each 300 m³/h

Maximum loading rate

476 m³/h

Manifolds

Distance between cargo manifold centres: 1.000 mm

Distance ships rail to manifold: 5.470 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 4.350 mm

Distance main deck to centre of manifold: 2.100 mm

Tank capacities

Fuel oil: 1.314 m³

Fresh water: 715 m³

Water ballast: 7.480 m³

Lifting equipment

1x Crane - SWL 5,0 t

Technical operator

M.T.M. Ship Management Pte., Ltd.
78 Shenton Way
Singapore

Republic of Singapore

Commercial operator

Chembulk Management

Cendex Centre
120 Lower Delta Road
Singapore
Republic of Singapore

Disponent owner

Chembulk Trading II LLC
C/o Chembulk Management LLC
The Delamar 175 Rennell Drive Southport, CT 06890
USA

Registered owner

MI-DAS Line S.A.
Vallarino Building 3rd floor
Fifty second and Elvira Mendez Str.
City of Panama
Republic of Panama

Latest data adjustment

24 May 2014
