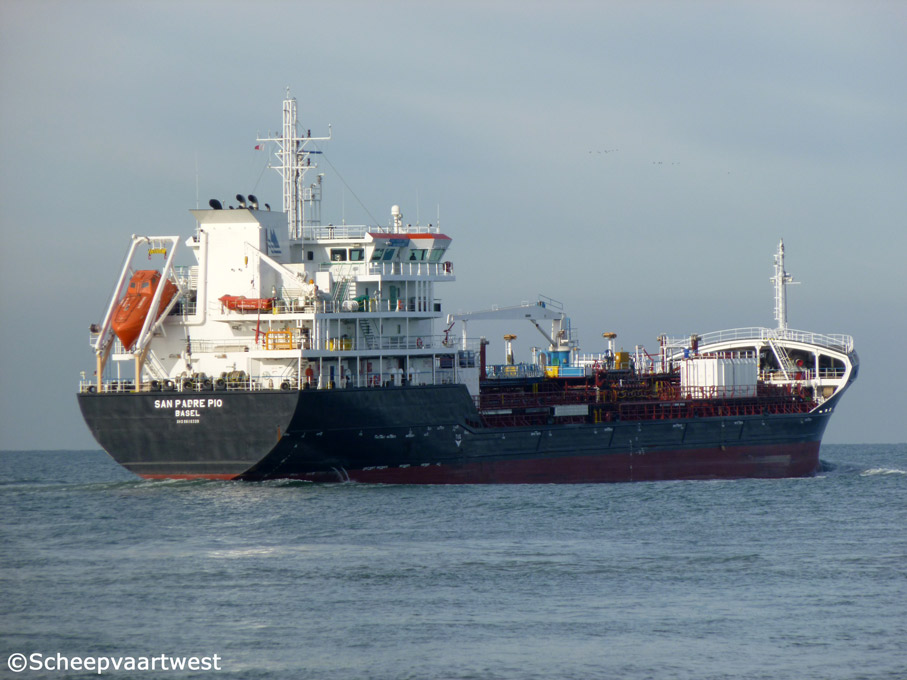

Westerschelde 28 September 2013 |
 |
 |
|

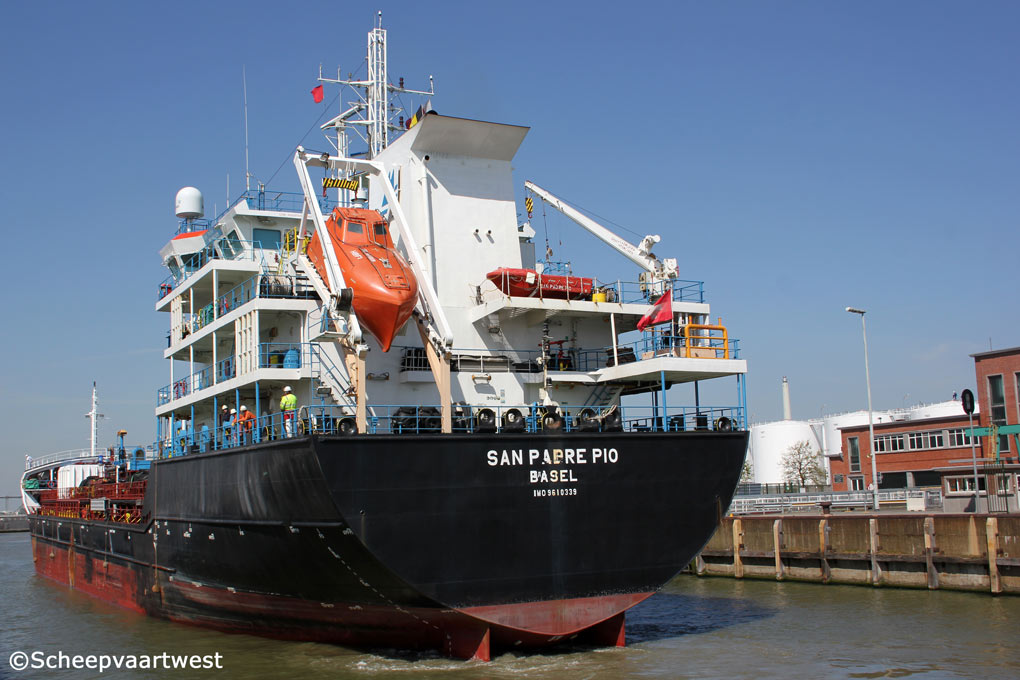

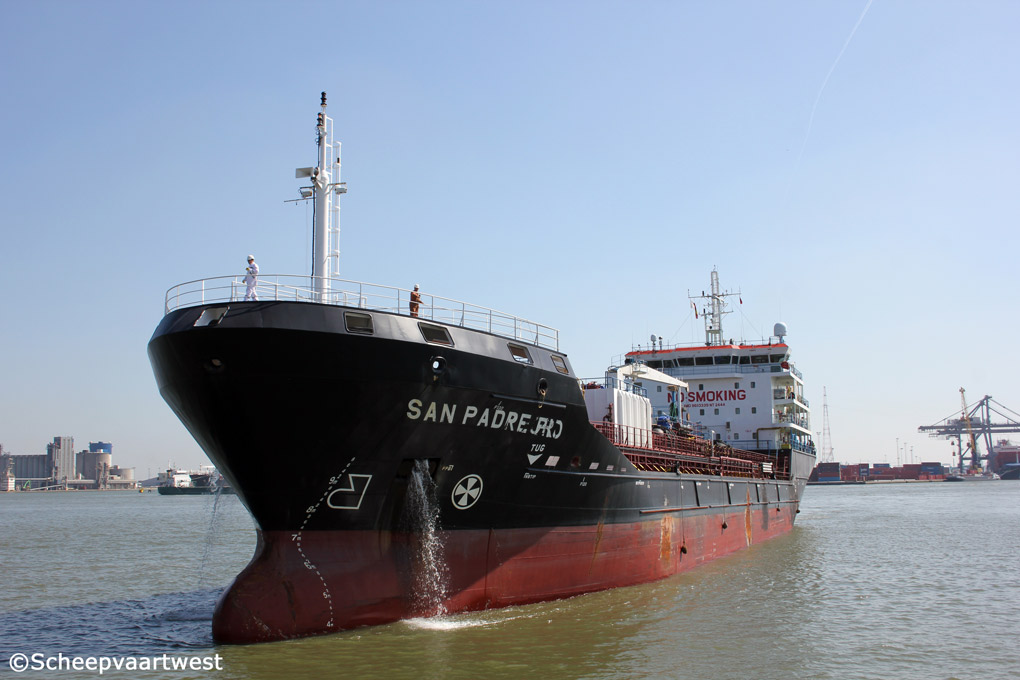

| Anrwerpen 16/04/14 | Antwerpen 16/04/14 | |
|
Name |
SAN PADRE PIO |
|
Previous names |
2012 - 04.2013 Beaufort |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9610339 |
|
Call sign |
HBFI |
|
Flag |
Switzerland |
|
Port of registry |
Basel |
|
GT |
5.422 t |
|
DWT |
Summer: 7.616,7 t Winter: 7.255,3 t |
|
NT |
2.444 t |
|
Displacement |
Summer: 10.966,4 t Winter: 10.705,1 t |
|
Length |
112,70 m overall 106,00 m between perpendiculars |
|
Breadth |
17,60 m moulded |
|
Draught |
Summer: 7,20 m Winter: 7,05 m |
|
Keel to masthead |
33,60 m |
|
Air draft |
Summer: 25,90 m Winter: 26,07 m |
|
Freeboard |
2.211 mm |
|
Depth |
9,40 m moulded |
|
Speed |
14,0 knots |
|
Built |
2012 |
|
Keel laid |
05.2007 |
|
Date of completion |
18.06.2012 |
|
Builder |
Jiangsu Ganghua Shipbuilding (AVIC Dingheng Shipbuilding Co., Ltd.) Taixing |
|
Yard number |
GHCY-7500-07 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
2x MAN B&W 8L 21/31 - 4 stroke 8 cylinder 210 x 310 mm diesel engines - each t 1.720 kW total 3.440 kW / 4.674 hp at 1.000 rpm Built: 10.08.2009 Builder: Zhenjiang Marine Diesel Works,Zhenjiang - China |
|
Propellers |
2x Screw propeller controllable pitch - aft at 169 rpm 4 Blades - diameter: 3.300 mm |
|
Boilers |
1x CHO 49,90 m² - 9,0 bar 1x CHR 26,00 m² - 9,0 bar Builder: Mission |
|
Shaft generator |
2x 625 kVA - 500 kW at 1.800 rpm |
|
Generators |
3x Volvo Penta main diesel generatorsets each 500 kVA - 400 kW - 679 hp at 1.800 rpm |
|
Emergency generator |
1x Volvo Penta diesel generatorset 331 kVA - 265 kW - 272 hp at 1.800 rpm |
|
Compressed air receivers |
2x NK GmbH - 30 m³/h - 30,0 bars at 1.200 rpm |
|
Bow thruster |
1x With FPP controlled from bridge - 400 kW |
|
Number of cargo tanks |
14 |
|
Total cap. of tanks 98% |
8.539,6 m³ |
|
Number of segregations |
14 |
|
Cargo pumps |
12x Pumps each 300 m³/h 2x Pumps each 100 m³/h |
|
Max. loading rate |
2.00 m³/h |
|
Max. discharging rate |
1.500 m³/h |
|
Tank capacities 98% |
Fuel oil: 249,20 m³ Diesel oil: 90,30 m³ Fresh water 100 %: 185,20 m³ Lub oil: 9,28 m³ Ballast 100%: 3.436,90 m³ |
|
Manager |
ABC Maritime Rue Perdtemps 1 1260 Nyon |
|
Operator |
ABC Maritme A.G. |
|
Registered owner |
San Padre Pio Schiffahrt AG |
|
Latest data adjustment |
19 May 2014 |
