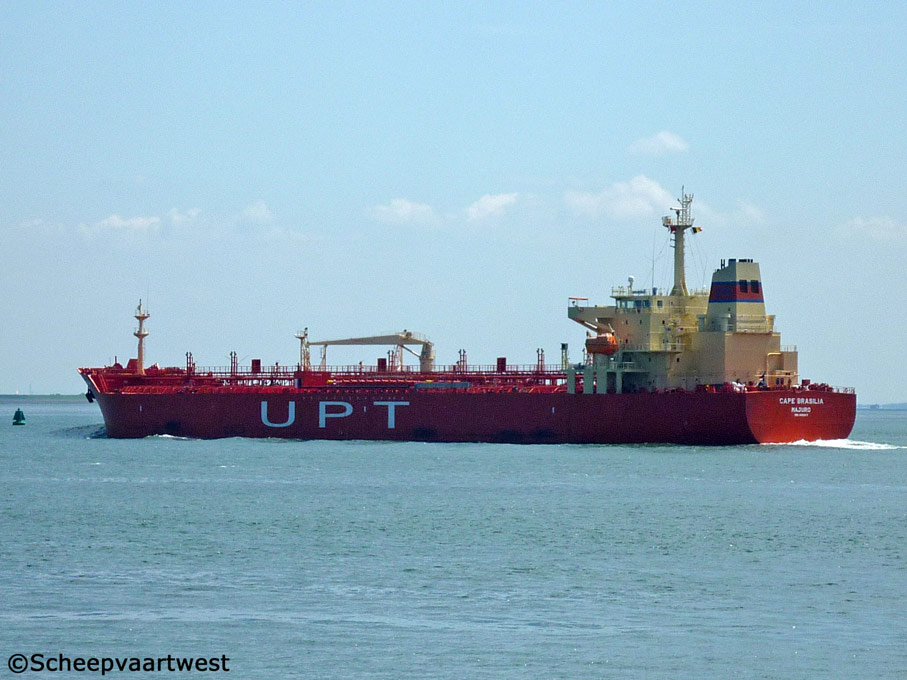

Cape Brasilia - IMO 9302671

Westerschelde 14 June 2012

Name

CAPE BRASILIA

Type

Oil tanker / Chemical tanker

IMO-number

9302671

Call sign

V7JS5

Flag

Marshall Islands

Port of registry

Majuro

GT

25.108 t

DWT

Summer: 40.327 t

NT

10.181 t

Suez: 22.596 t

Panama: 20.892 T

Length

175,98 m overall

168,00 m between perpendiculars

169,63 m registered

Breadth

31,00 m registered

Draught

11,04 m

Freeboard

9,31 m

Depth

17,00 m moulded

Speed

16,25 knots

Built

2006

Keel laid

24.10.2005

Launch date

17.01.2006

Date of completion

17.03.2006

Builder

Hyundai Mipo Dockyard Co., Ltd.
1381, Bangeo-dong, Dong-gu
Ulsan
Republic of Korea

Yard number

0380

Hull material

Shipbuilding steel (standard)

Hull type

Double hull
Double bottom

Watertight bulkheads

8

Continuous decks

1

Main engine

1x Hyundai B&W 6S50MC - 2 stroke 8 cylinder 500 x 1.910 mm diesel engine - 8.580 kW at 127,0 rpm

Year of manufacture: 2005

Manufacturer: Hyundai Heavy Industries Co., Ltd.
1, Jeonha-dong, Dong-gu
Ulsan, 682-792 Kyongsang-namdo
Republic of Korea

Propellers

1x Solid propeller (keyless), aft

Boilers

Steam boiler, oil fired - 9,0 bar

Heating surface: 110,0 m²

Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 202,0 m²

Year of manufacture: 2005

Manufacturer: Alfa Laval Qingdao Ltd.
86 Guangzhou Road North Jiaozhou
Qingdao, 266300 Shandong
People's Republic of China

Compressed air receivers

2x Receivers each 3.500 litres - 32,0 bar

1x Receiver 300 litres - 32,0 bar

1x Receiver 150 litres - 7,7 bar

1x Receiver 1.000 litres - 7,6 bar

Bow thruster

1x forward

Segregations

7

Cargo liquid capacity 98%

42.682 m³

With slop tanks: 44.749 m³

Pumps

12x Pumps each 500 m³/h

2x Pumps each 200 m³/h

Ballast water

20.681 m³

Anchor equipment

3 Anchors weight each 8.300 kg

Chain length: 632,50 m

Diameter: 70 mm

Lifting equipment

1x Derricks - SWL 10,0 t

Crew size

25

Manager

Columbia Shipmanagement (Deutschland) GmbH
Große Elbstr. 275
22767 Hamburg
Federal Republic of Germany

Previous managers

2006 - 2007 Columbia Shipmanagement Ltd.

Operator

UPT - United Product Tankers GmbH & Co., KG
Gasstrasse 4
22761 Hamburg
Federal Republic of Germany

Registered owner

MT "CAPE BRASILIA" Tankschiffahrts GmbH & Co. KG
Axel-Springer-Platz 3
20355 Hamburg
Federal Republic of Germany

Previous owners

2006 - 2006 Schoeller Holdings Ltd.

Last data update

12 February 2014
