| Antwerpen 10 October 2013 |
|
Name |

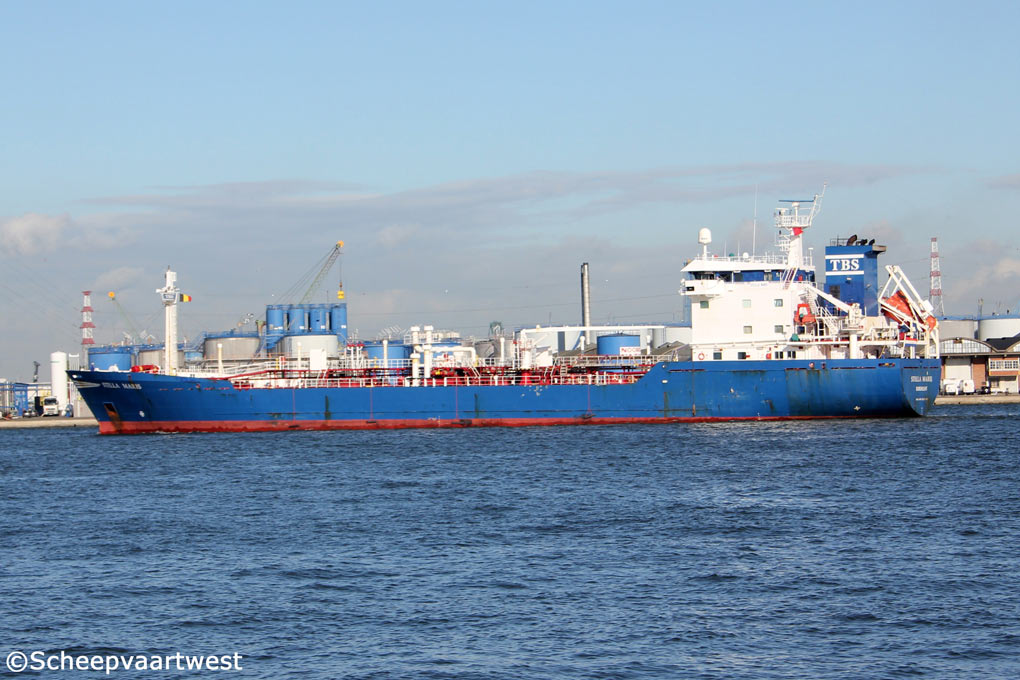

STELLA MARIS |
|
Previous names |
2004 - 03.2005 Scipion |
|
Type |
Bitumen, oil & chemical tanker |
|
IMO-number |
9297101 |
|
Call sign |
PHCV |
|
Flag |
The Netherlands |
|
Port of registry |
Dordrecht |
|
GT |
4.064 t |
|
DWT |
Summer: 4.531 t |
|
NT |
1.219 t |
|
Length |
106,00 m overall 98,72 m between perpendicular |
|
Breadth |
15,83 m |
|
Draught |
6,30 m |
|
Freeboard |
3.460 mm |
|
Depth |
9,75 m moulded |
|
Speed |
Service: 13,0 knots |
|
Built |
2004 |
|
Date of completion |
21.04.2004 |
|
Builder |
Zhejiang Shipbuilding Co., Ltd. |
|
Yard number |
ZJB02-105 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
6 |
|
Main engine |
1x MaK 6M32 - 4 stroke 6 cylinder 320 x 480 mm diesel engine - 2.880 kW / 3.913 hp at 600 rpm Built: 2002 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 150 rpm |
|
Boilers |
2x CHO GESAB 58,10 m² - 10,0 bar |
|
Electric installations |
Power voltage: 460 V Lighting voltage: 440 V Frequency: 60 Hz |
|
Shaft generator |
1x 440 kVA - 352 kW |
|
Generators |
3x Volvo Penta TAMD 165 C main diesel generatorset each 460 kVA - 368 kW - 530 hp at 1.800 rpm |
|
Emergency generator |
1x Diesel generatorset 156 kVA - 125 kW - 238 hp |
|
Bow thruster |
1x Schottel 300 kW |
|
Number of tanks |
8 (4x 2 wing tanks) |
|
Total tank capacity 98% |
4.221 m³ |
|
Cargo handling |
2x Pumps each 450 m³/h |
|
Cargo heating |
Maximum cargo temperature: 250ºC |
|
Manifolds |
Bow to centre manifold: 52,00 m |
|
Fuel capacity |
345 m³ |
|
Lifting equipment |
1x Crane - SWL 0,97 t at 18,50 m |
|
Manager |
Tarbit Tankers B.V. |
|
Operator |
Tarbit Tankers Services BV |
|
Registered owner |
Baloeran BV |
|
Last data update |
01 February 2014 |
