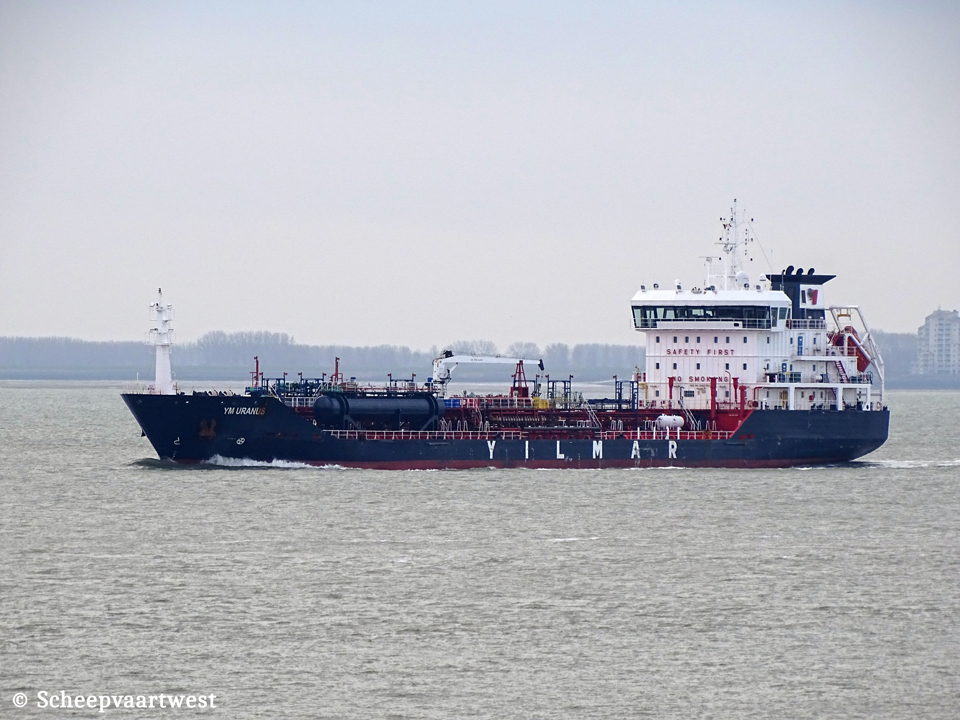

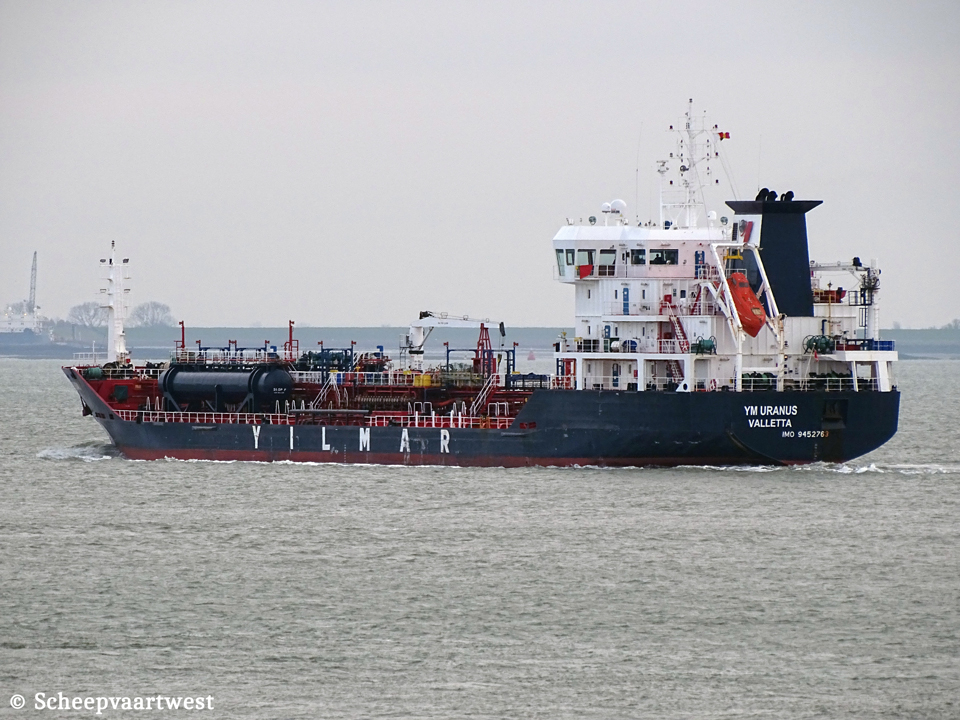

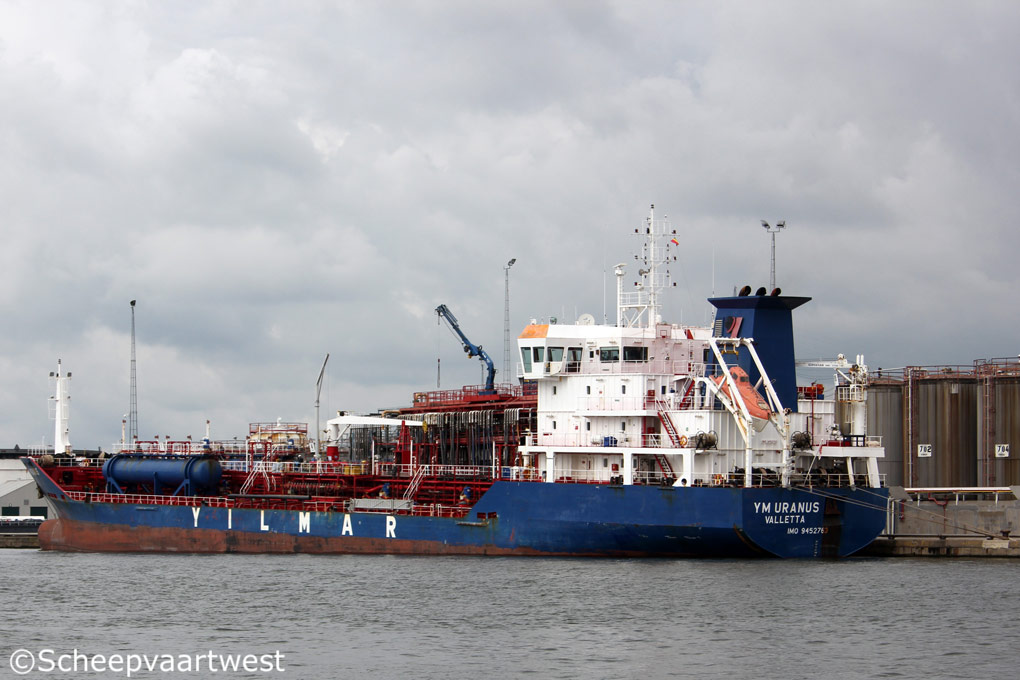

YM Uranus 01
Antwerpen 15 July 2012



Name

YM URANUS

Type

Oil tanker / Chemical tanker

IMO-number

9452763

Call sign

9HSQ9

Flag

Malta

Port of registry

Valletta

GT

4.829 t

DWT

7.000 t

NT

2.297 t

Length

119,60 m overall

111,85 m between perpendiculars

Breadth

16,90 m

Draught

6,65 m

Freeboard

1.684 mm

Depth

8,40 m moulded

Speed

13,0 knots

Built

2008

Date of completion

05.11.2008

Builder

Marmara Shipyard
Istanbul
Turkey

Yard number

77

Hull material

Mild steel

Hull type

Double skin hull

Continuous decks

1

Main engine

1x Man 6L 32/40 - 4 stroke 6 cylinder 320 x 400 mm diesel engine - 3.000 kW / 4.076 hp at 750 rpm

Built: 20.02.2008

Builder: STX Engine Co., Ltd. - Korea

Propellers

1x Screw propeller controllable pitch at 137 rpm

Rudder

Gurdesan flap rudder

Boilers

2x CHO 75,70 m² - 10,0 bar

1x CHR 59,20 m² - 10,0 bar

1x CHS 12,00 m² - 10,0 bar

Shaft generator

1x 1.265 kVA - 1.012 kW

Generators

3x Man & Lindenberg diesel generatorsets each 606 kVA - 485 kW - 602 hp

Bow thruster

1x Jastram - 4.500 kW

Number of cargo tanks

12

Number of slop tanks

2

Cargo capacity

8.050 m³

Slop capacity

160 m³

Cargo pumps

10 + 2 Electrically driven submerged type cargo pumps each 50 m³/h

Heating system

Thermal oil through 2x 2.000 kW

Thermal Boiler + 1x 1.000 Steam +1x 4.000 Butterworth

Tank capacities

Fuel oil: 357,78 m³

Diesel oil: 60 m³

Fresh water: 180 m³

Water ballast: 3.000 m³

Lifting equipment

1x Deck crane Gurdesan - SWL 5,0 t

Manager

Ibex Maritime
Istanbul
Turkey

Operator

Yilmar
Meydan Sokak No:1
Beybi Giz Plaza Kat: 4 34398 Maslak
Istanbul
Turkey

Registered owner

YM Uranus Tankers Limited
