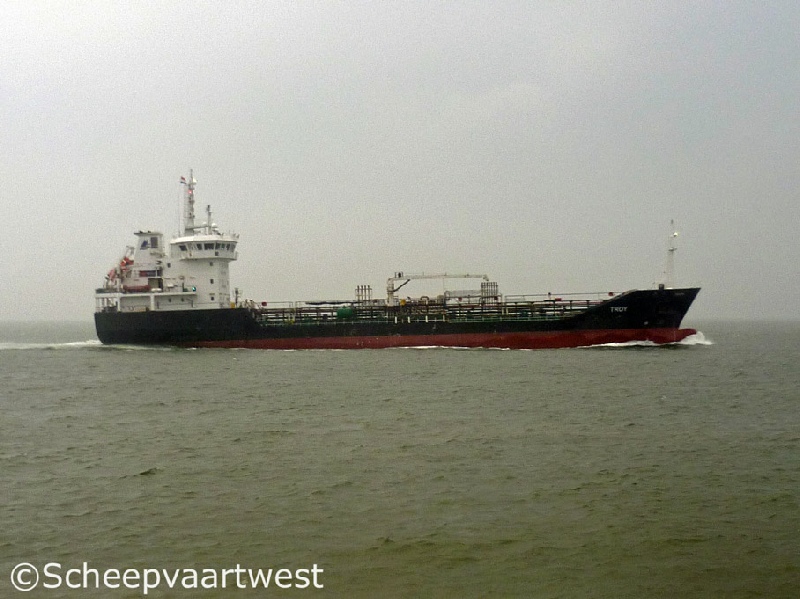

Westerschelde 31 March 2019 |
 |
 |
 |
 |
 |
 |
|||||

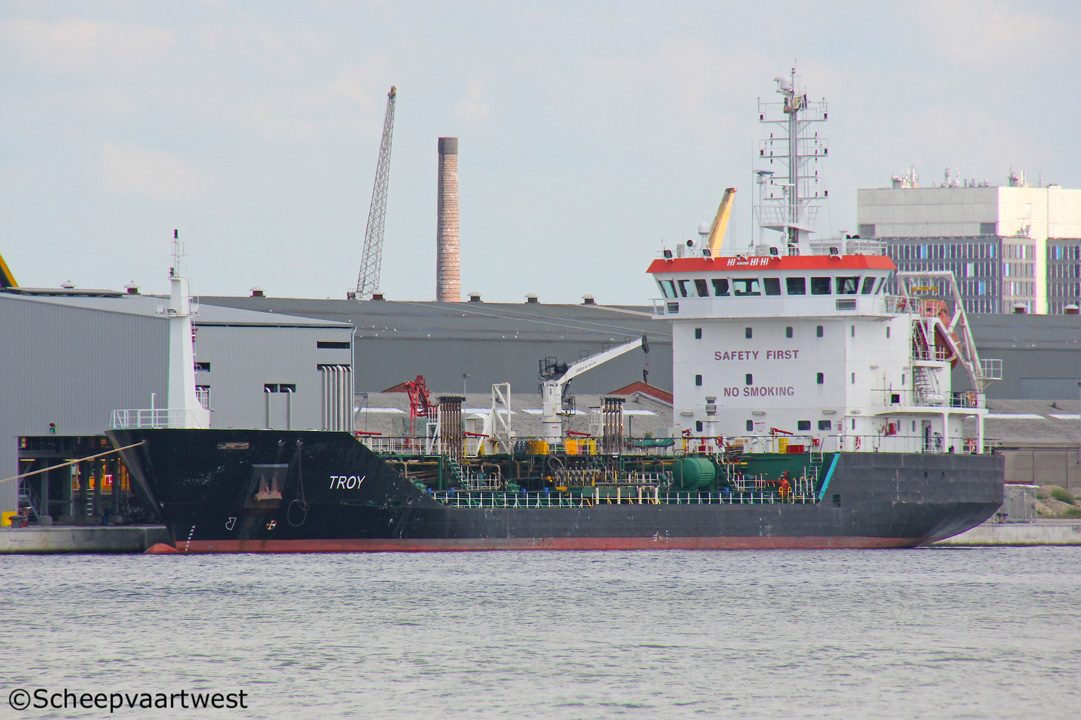

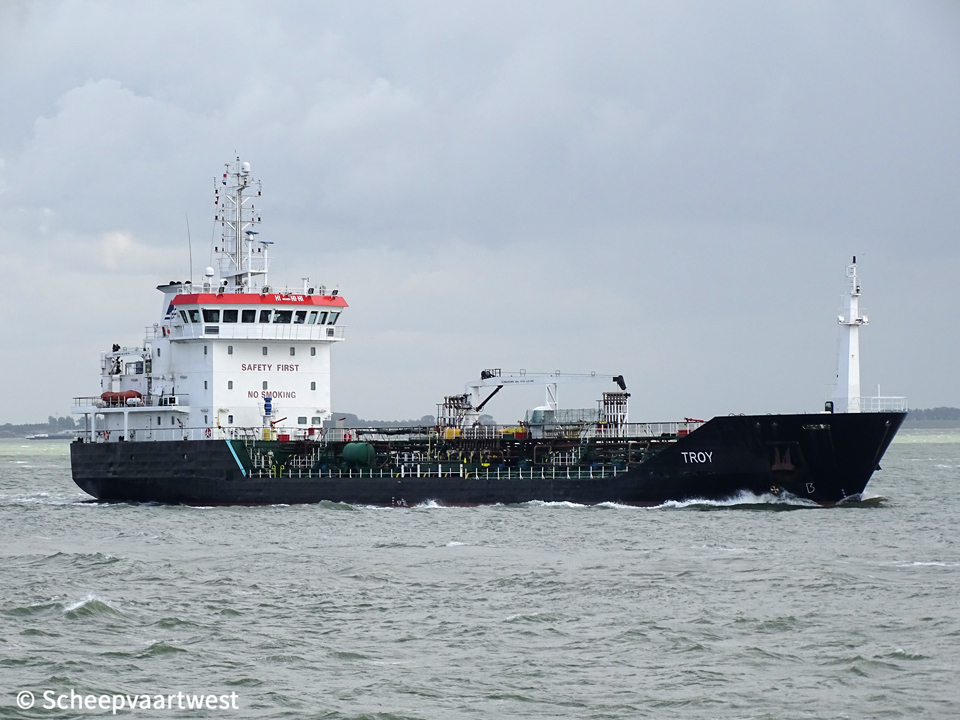

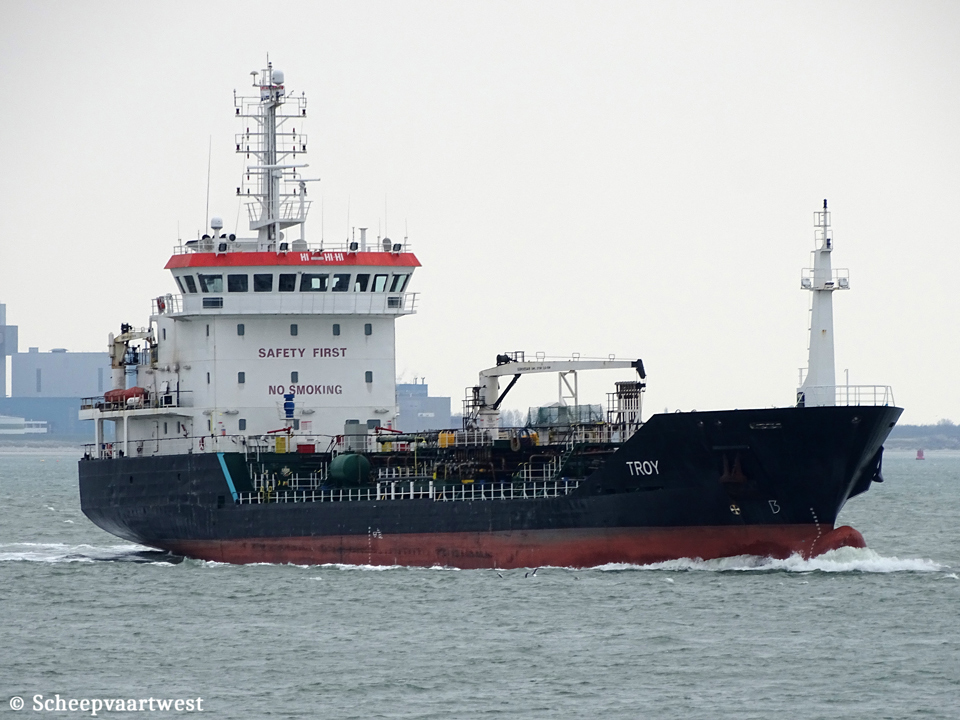

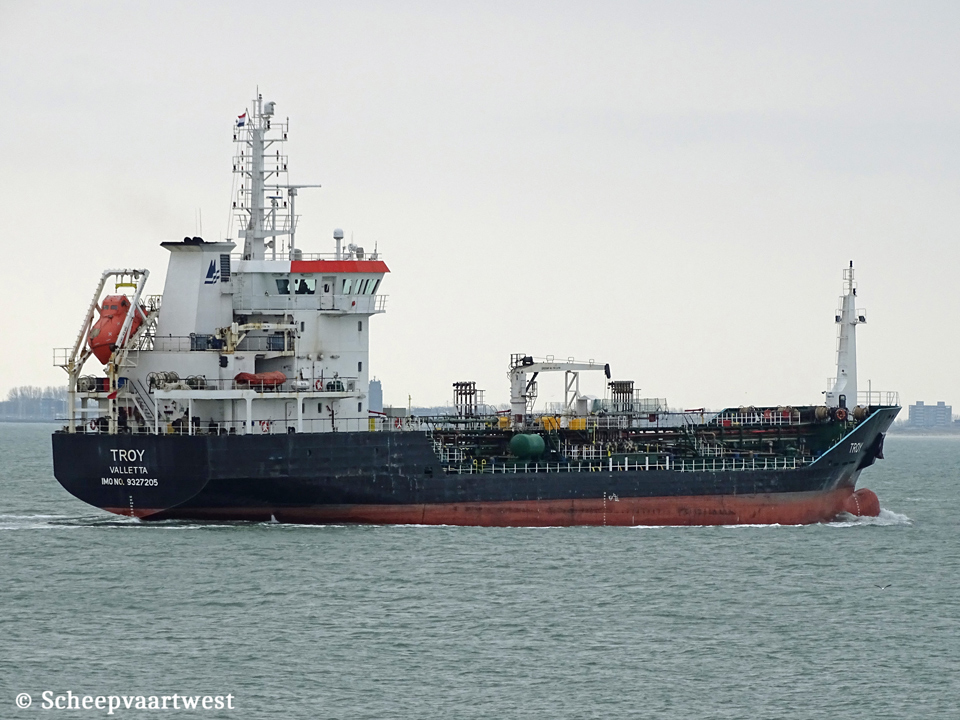

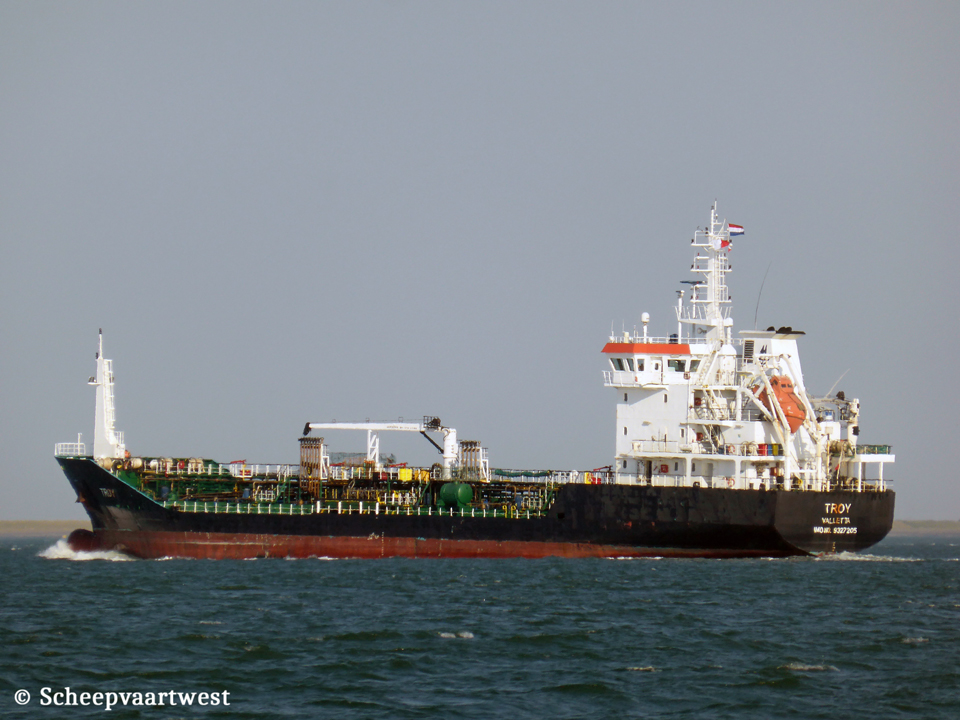

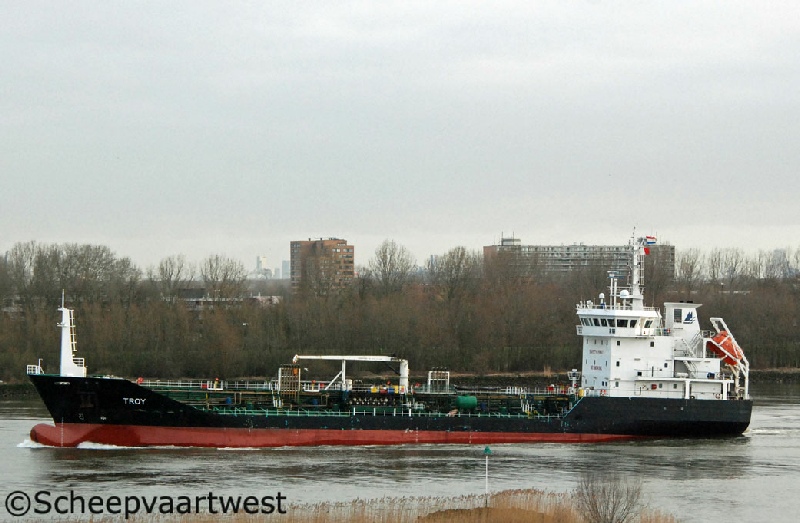

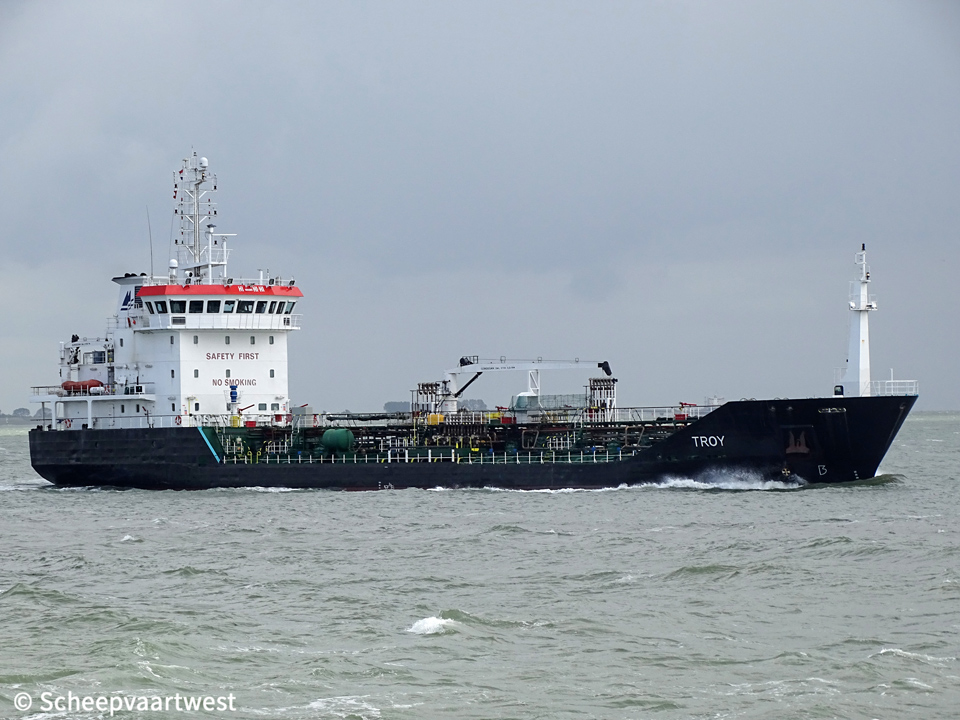

| Westerschelde 31/03/19 | Westerschelde 15/08/19 | Westerschelde 23/08/11 | Westerschelde 23/08/11 | Spijkenisse 06/03/11 | Antwerpen 14/08/17 | |||||
 |
 |
|||||||||

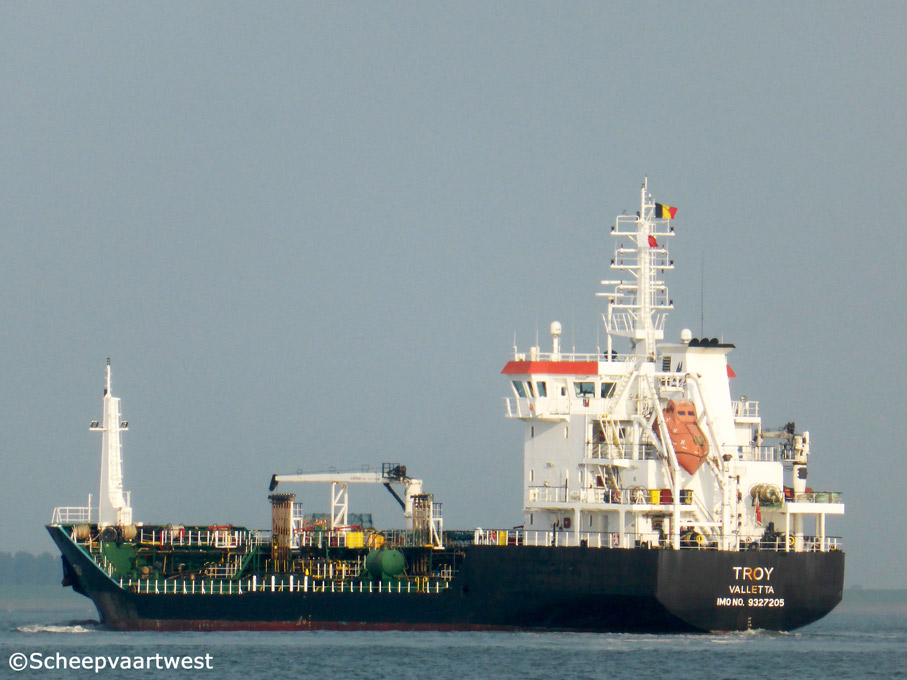

| Westerschelde 01/08/14 | Westerschelde 11/06/15 | |||||||||
|
Name |
TROY |
|
Previous names |
2004 Troy 2005 M. Aksoy |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9327205 |
|
Call sign |
LXTY |
|
Flag |
G.D. Luxembourg |
|
Port of registry |
Luxenbourg City |
|
Previous flags |
Malta, Valletta - Call sign: 9HGQ8 |
|
GT |
2.632 t |
|
DWT |
Summer: 3.577,33 t Winter: 3.448,31 t Tropical: 3.707,34 t |
|
Displacement |
Summer: 5.254,20 t Winter: 5.215,18 t Tropical: 5.384,21 t |
|
NT |
1.137 t |
|
Length |
92,86 m overall 86,65 m between perpendiculars |
|
Breadth |
14,10 m moulded |
|
Draught |
5,70 m |
|
Keel to mast end |
29,95 m |
|
Air draft |
Summer: 24,25 m Winter: 24,37 m Tropical: 24,13 m |
|
Keel to masthead |
29,95 m |
|
Freeboard |
Summer: 1.511 mm Winter: 1.630 mm Tropical: 1.392 mm |
|
Depth |
7,20 m moulded |
|
Speed |
13,0 knots |
|
Built |
2005 |
|
Date of completion |
22/08/2005 |
|
Builder |
Gelibolu Shipyard Gelibolu, Istanbul Turkey |
|
Yard number |
26 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
11 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke 6 cylinder 400 x 255 mm combustion engine 1.850 kW / 2.514 hp at 750 rpm Built: 2004 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Electrical propulsion gen. |
1x 600 kW - 400 Volt |
|
Propelling system |
1x Screw propeller controllable pitch - aft at 151 rpm |
|
Boilers |
2x CHO 49,90 m² - 10,0 bar 1x CHR 51,60 m² - 10,0 bar |
|
Electrical installation |
Power voltage: 400 V Lighting voltage: 230 V Frequency: 50 Hz |
|
Shaft generator |
1x AVK - 600 kW / 400 Volt at 1.500 rpm |
|
Generators |
3x Caterpillar 3406CA1500 diesel generatorsets each 308 kVA - 246 kW - 349 hp at 1.500 rpm |
|
Emergency generator |
1x Caterpillar diesel generatorset 136 kVA - 109 kW - 125 hp at 1,500 rpm |
|
Main air compressor |
2x HL2/105 - 43 m³ - 10,0 bar |
|
Bow thruster |
1x Schottel STT 110LK - 200 kW |
|
Number of tanks |
11 |
|
Total capacity of tanks |
4.176,3 m³ |
|
Cargo handling |
11x Cargo pumps each 150 m³/h |
|
Emergency pump |
1x 125 m³/h |
|
Cargo system particulars |
Max. rate Loading: 450 m³/h per tank Max. rate discharging: 150 m³/h par tank Max. allow pressure cargo line: 16,0 bar Number of segregations: 11 Cargo manifolds: 2x10'' + 11x5'' |
|
Fuel capacity |
192,4 m³ |
|
Commercial manger |
Naviglobe NV Noorderlaan 96 2030 Antwerpen Belgium |
|
ISM manager |
ABC Maritime AG Rue Perdtemps 1 CH-1260 Nyon Switzerland |
|
Registered owner |
Navimer SA 25, Port de Mertert, 6 688 Mertert G.D. Luxembourg |
|
Latest data adjustment |
28 November 2021 |
