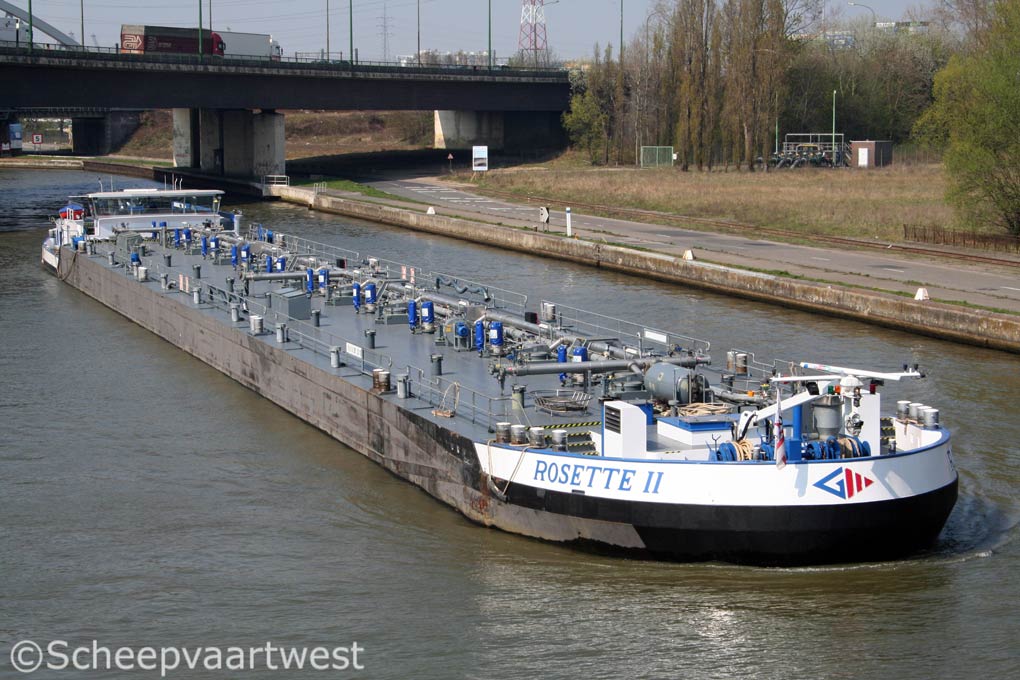

Rosette II 03
Merksem 06 April 2012

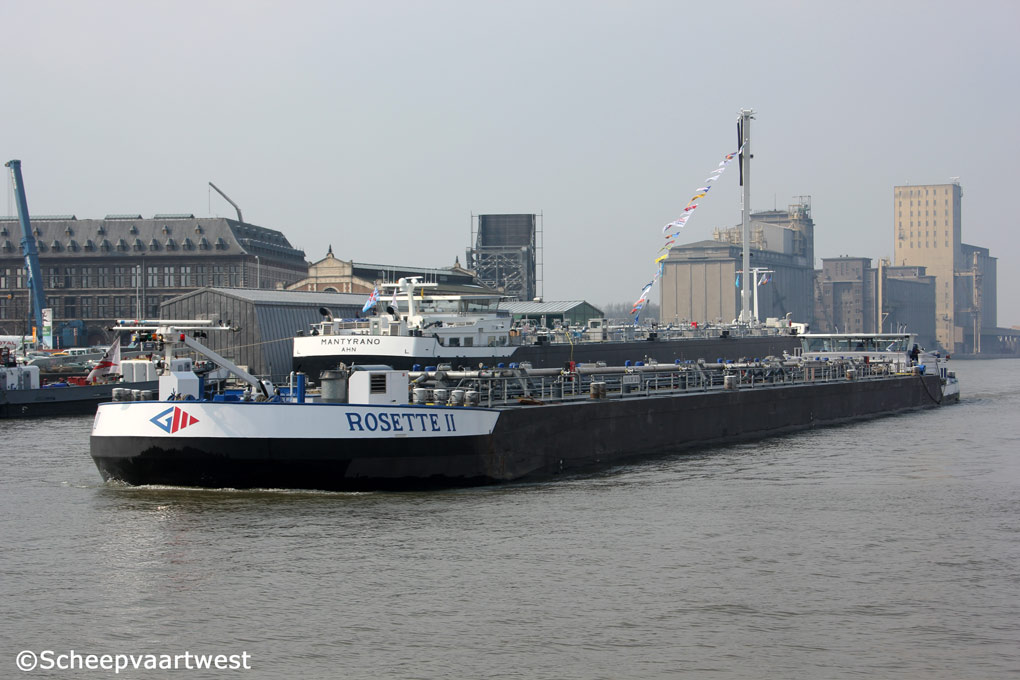

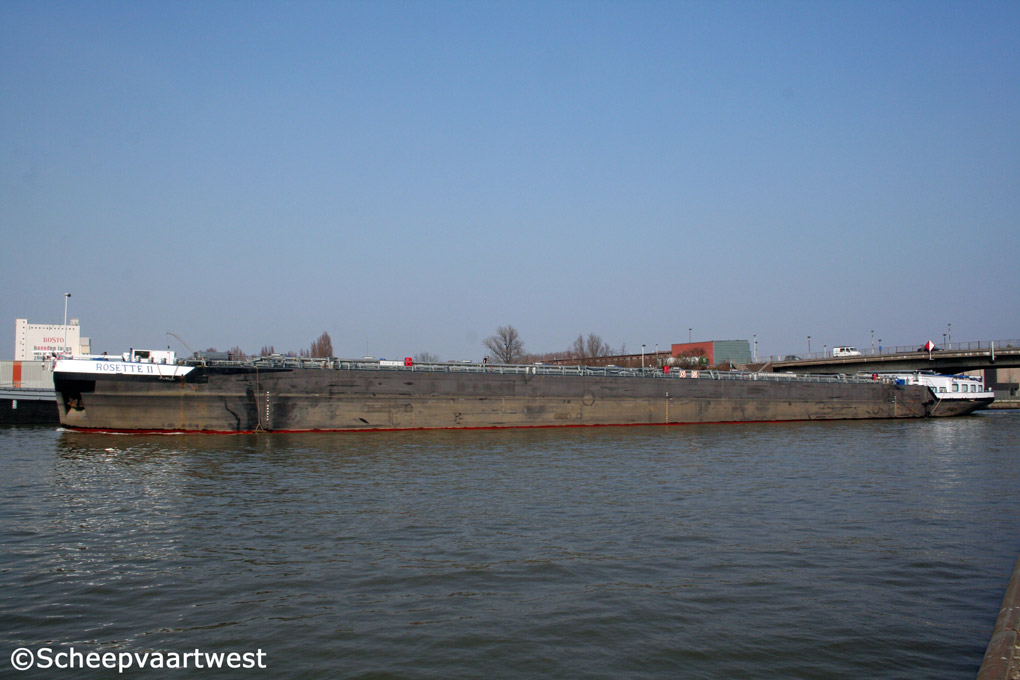

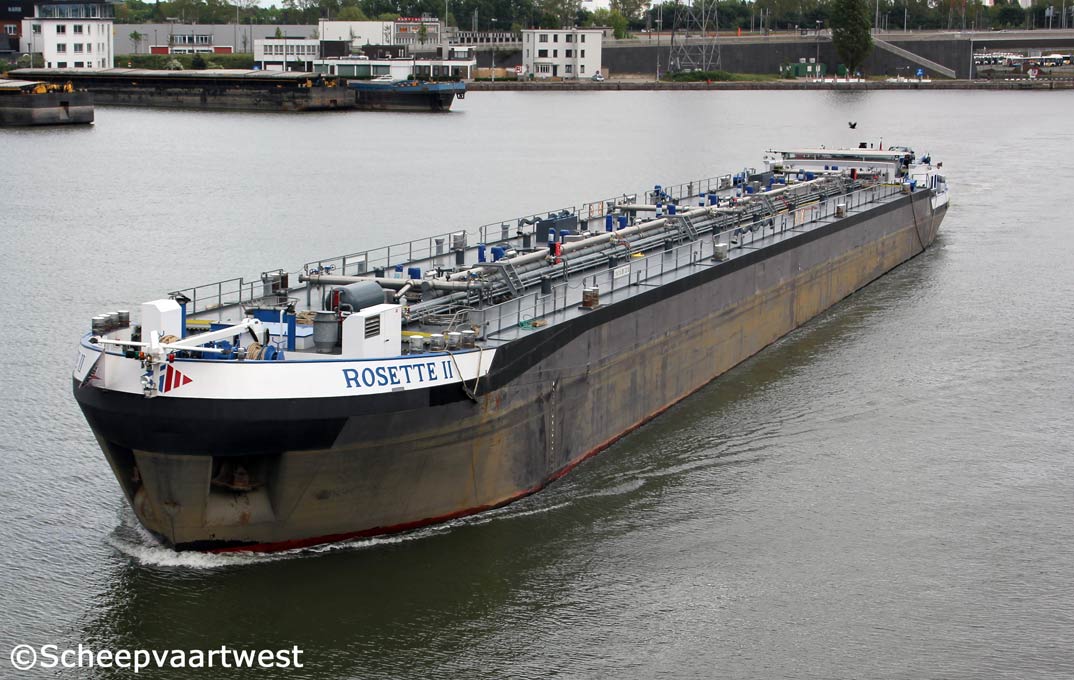

Rosette II 02   Rosette II 04   Rosette II 01   Rosette II 06
06/04/12   Deurne 29/03/13   Antwerpen 21/03/12   27/04/14



Name

ROSETTE II

Type

Inland oil tanker

ENI-number

02331926

Flag

The Netherlands

Tonnage

2.909 t

Length

110,00 m

Breadth

11,45 m

Draught

3,50 m

Depth

5,50 m

Built

2008

Builder casco

Centromost - Stocznia Rzeczna w Plocku
Plock
Poland

Builder completion

De Waal Machinefabriek B.V.
Werkendam
The Netherlands

Main engine

1x ABC 6 MDZC diesel engine - 1.325 kW / 1.803 hp at 1.000 rpm

Builder: Anglo Belgian Corporation N.V.
Wiedauwkaai 43
9000 Gent
Belgium

Gearbox

1x Reintjes WGF 763
Reduction: 3,007:1

Propeller

1x AMW propeller type Kaplan
Diameter: 1.750 - 5 blades - Counter clockwise rotation

Generators

1x Cummins QSK 19 M diesel engine coupled with Marathon 573 RSL 4043 generator 660 kVA for bow thruster and pumps

1x Cummins QSB 6.7C diesel engine coupled with Marathon 431 PSL 6202 generator 140 kVA

1x Cummins QBS 5 G3 diesel engine coupled with Marathon 363 CSL 1607 generator 93 kVA

Bow thruster

1x Cummins-Oudakker - 510 hp

Cargo capacity

3.700 m³

Pump

10x Pumps each 100 m³/h

Operator

V.O.F. Scheepvaartbedrijf v/d Guchte en Zonen
Hansweer
The Netherlands

Owner

Fam. van de Guchte
