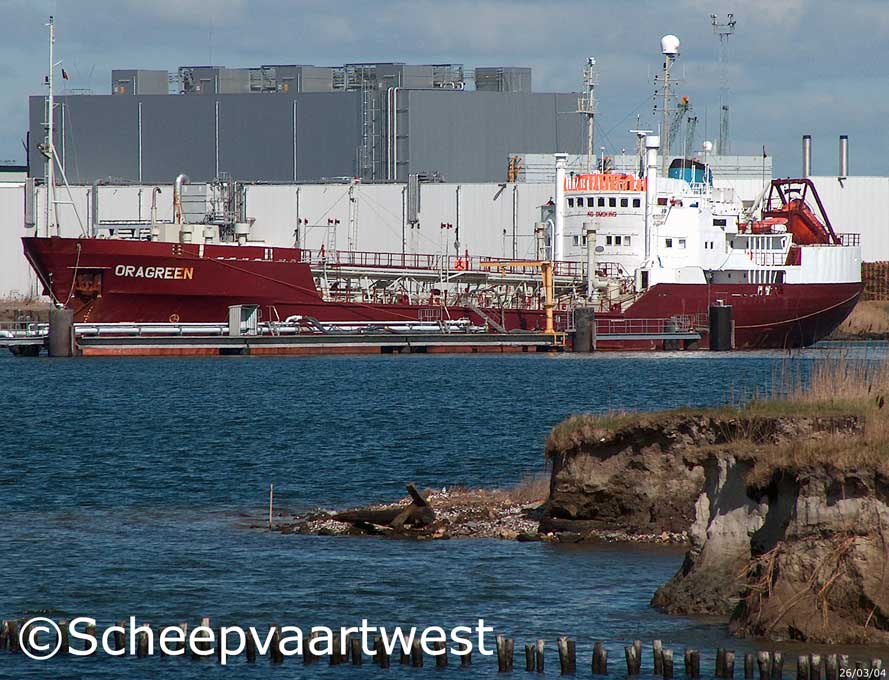

| Zeebrugge 26 March 2004 |
|
Name |
ORAGREEN |
|
Previous names |
Built as Erich Schrøder (Germany) 1972 - 1983 Vulcanus 1983 - 1990 Vulcanus I 1990 - 2004 Oragreen |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
5105295 |
|
Call sign |
C6IN5 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
3.033 t |
|
DWT |
Summer: 4.004 t Winter: 3.846 t |
|
NT |
979 t |
|
Length |
97,08 m overall |
|
Breadth |
16,00 m moulded |
|
Draught |
Summer: 6,06 m |
|
Air Draft |
27,00 m |
|
Speed |
14,5 knots |
|
Built |
1956 1972 cv to waste incinerator ship 1983 shortened with new fore & cargo sections 1991 cv to bunkering tanker |
|
Launch date |
10.11.1955 |
|
Date of completion |
07.1956 |
|
Builder |
Koser & Meyer Norderwerft |
|
Yard number |
818 |
|
Hull |
Double hull |
|
Main engines |
2x MaK MaU 582 A diesel engines - 1.400 hp |
|
Number of screws |
2 |
|
Generators |
2x VOLVO TAMD 162 diesel generatorsets each 350 kW 2x MAN 170 hp diesel generatorset 1x MAN 112 hp diesel generatorset |
|
Bow thruster |
Caterpillar 370 kW |
|
Ballast draft fore |
3,80 meters |
|
Tank capacities |
Gas oil: 170 m³ Water ballast: 1.634,4 m³ Fresh water: 224 m³ |
|
Cargo 100 % |
4.163 m³ |
|
Cargo slop tank |
218 m³ |
|
Loading rate |
350 t/h |
|
Discharge rate |
300 t/h |
|
Stb. cargo pump |
0 - 170 m³/h |
|
Port cargo pump |
0 - 170 m³/h |
|
Cargo lines |
6" |
|
Cargo line, stern line |
8" |
|
Manifold to bow |
43,00 meters |
|
Cargo heating |
1x Clayton EO 185 steam generator. 2.895 kg steam/h. Enable to heat cargo to 100 deg. C. Heating coils AISI 316 L Stainless steel Heating medium; steam |
|
Shipping company |
Rederiet M.H. Simonsen ApS Christiansmindevej 76 6700 Svendborg |
|
Renamed |
2004 Kotrando |
