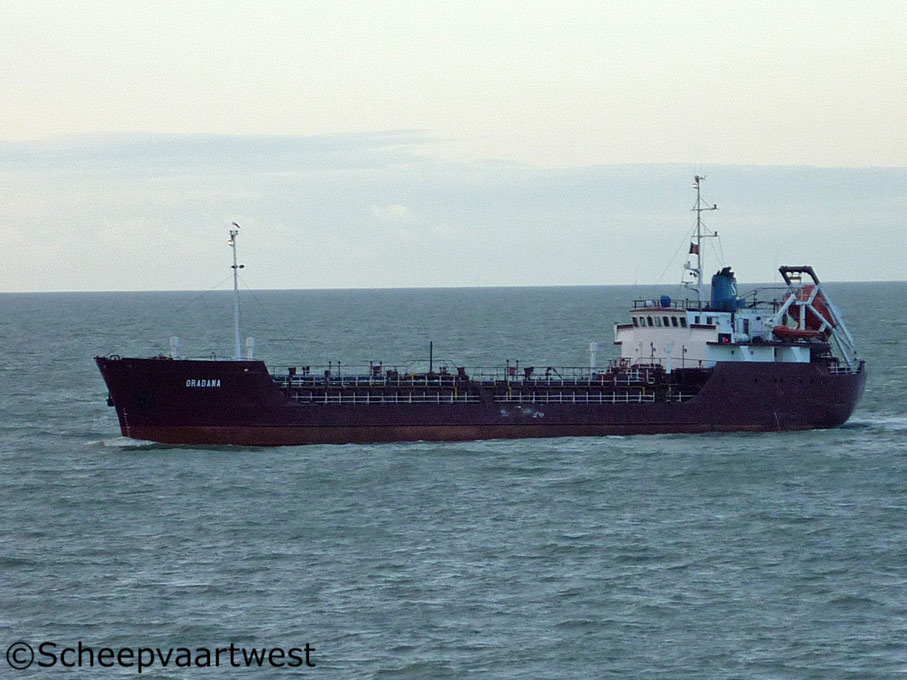

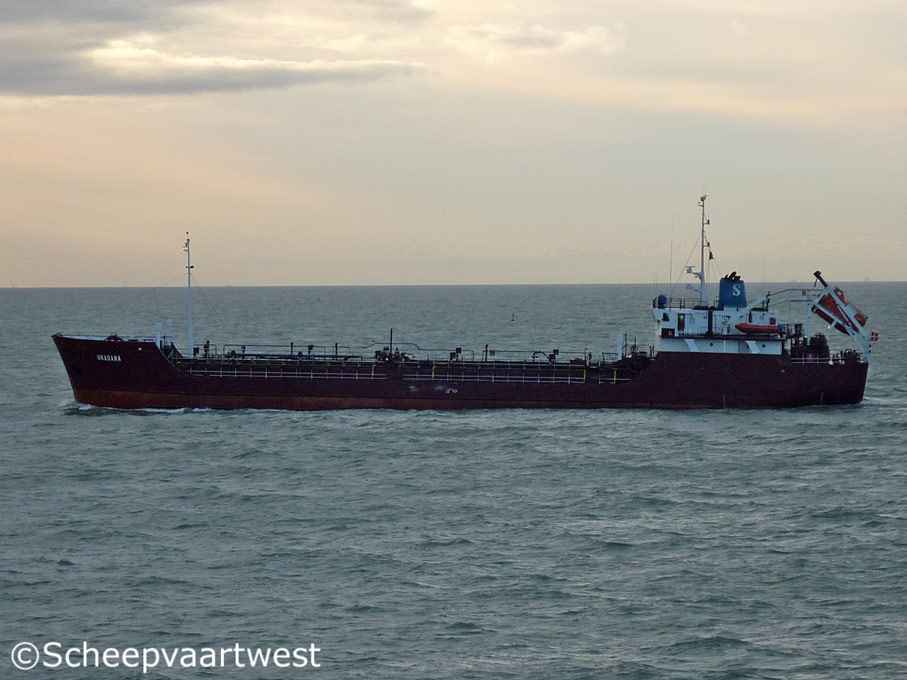

| Westerschelde 19 January 2012 |
 |
| Westerschelde 19/01/12 |
|
Name |
ORADANA |
|
Previous names |
1971 - 1989 Scarlino Primo |
|
Type |
Tanker for chemicals - Vegetable / animal oil tanker |
|
IMO-number |
7117424 |
|
Call sign |
OYKM6 |
|
Flag |
Denmark |
|
Port of registry |
Svendborg |
|
GT |
1.639 t |
|
DWT |
Summer: 2.495 t Winter: 2.423 t |
|
NT |
556 t |
|
Light weight |
994 t |
|
Length |
76,00 m overall 71,51 m between perpendiculars |
|
Breadth |
11,50 m |
|
Draught |
4,76 m |
|
Air Draft |
23,00 m without antenna |
|
Depth |
5,50 m |
|
Speed |
10,5 knots |
|
Built |
1971 |
|
Keel laid |
01.10.1970 |
|
Date of completion |
12.08.1971 |
|
Builder |
C.L.E.M.N.A. - Societa Cooperativa Responsabilita Limitata Italy |
|
Yard number |
11 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Trans. bulkheads |
6 |
|
Main engine |
2x MAN B&W 6L23/30 A-D Alpha diesel engines each 810 kW Builder: MAN B&W Diesel AG |
|
Propellers |
2 |
|
Boilers |
2x Auxiliary boiler, vertical shell type DT 2500 |
|
Generators |
2x Valmet 612 DSBG diesel generatorsets each 134 kW 380 Volt 50 Hz |
|
Cargo tank capacity 100% |
2.093,88 m³ |
|
Slop tank |
79,05 m³ |
|
Cargo pumps |
1x Deutz F6M 716 - stb cargo pump 340 t/h 1x Valmet 134 kW - port cargo pump 340 t/h |
|
Cargo heating |
2x Termo Trading DT 2500 Steam generators |
|
Loading rate |
500 t/h |
|
Discharge rate |
330 t/h |
|
Manifolds |
Manifold to deck: 1,10 m |
|
Tank capacities |
Gas oil: 178 m³ Ballast water: 1.459 m³ Fresh water: 28,60 m³ |
|
Manager |
Rederiet M.H. Simonsen ApS |
|
Owner |
Rederiet M.H. Simonsen ApS |
