| Vlissingen, The Netherlands 03 October 2011 |
|
Name |
GLOBAL MOON |
|
Location |

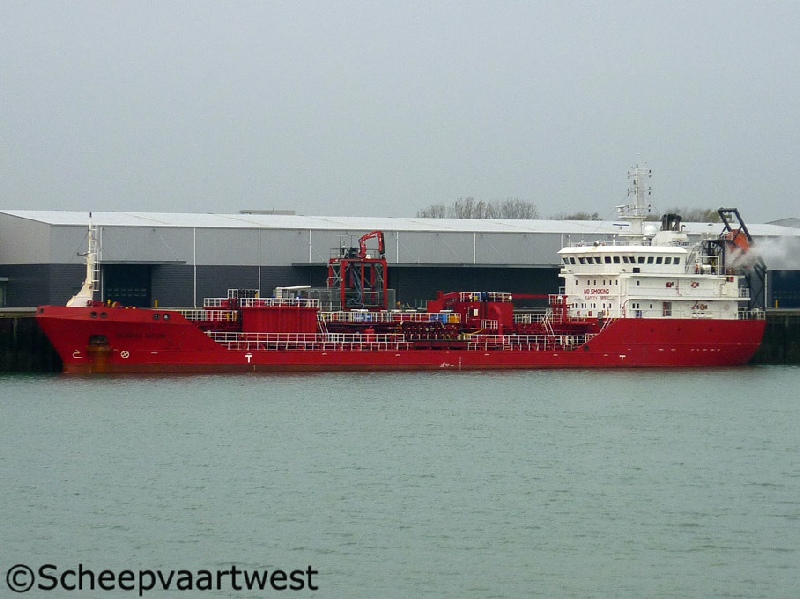

Vlissingen 30 October 2011 moored at quay Buitenhaven |
|
Type |
Oil tanker - Chemical tanker |
|
IMO-number |
9427512 |
|
Call sign |
PCIN |
|
Previous call sign |
ZDJV4 |
|
Flag |
The Netherlands |
|
Previous flags |
Gibraltar |
|
Port of registry |
Rotterdam |
|
GT |
3.166 t |
|
DWT |
Summer: 4.394,27 t |
|
NT |
1.318 t |
|
Length |
93,15 m overall 86,35 m between perpendiculars |
|
Breadth |
15,20 m |
|
Draught |
5,40 m |
|
Freeboard |
1.412 mm |
|
Depth |
7,20 m |
|
Speed |
12,5 knots |
|
Built |
2010 |
|
Launch date |
06.03.2009 |
|
Date of completion |
08.07.2010 |
|
Builder |
Yizheng Yangzi Shipbuilding Industry Co.,Ltd. |
|
Yard number |
YZCB-2006-3600(II) |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
11 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W 8L23/30 - 4 stroke 8 cylinder 225 x 300 mm diesel engine - 2.560 kW / 3.478 hp at 900 rpm Builder: Zhenjiang Marine Diesel Works, Zhenjiang - China |
|
Propelling system |
2x Screw propeller controllable pitch - at 201 rpm |
|
Boilers |
2x CHO 51,20 m² - 10,0 bar |
|
Generators |
2x Main diesel generatorset 500 kVA - 400 kW - 679 hp |
|
Emergency generator |
1x Diesel generatorset - 287 kVA - 230 kW - 360 hp |
|
Number of tanks |
12 + 2 slop tanks |
|
Total capacity of tanks |
4.666,8 m³ |
|
Fuel capacity |
200,4 m³ |
|
Manager |
North Sea Tanker |
|
Operator |
North Sea Tanker Management BV |
|
Registered owner |
Global Moon Beheer B.V. |
