Antwerpen 26 May 2016 |
|
Name |

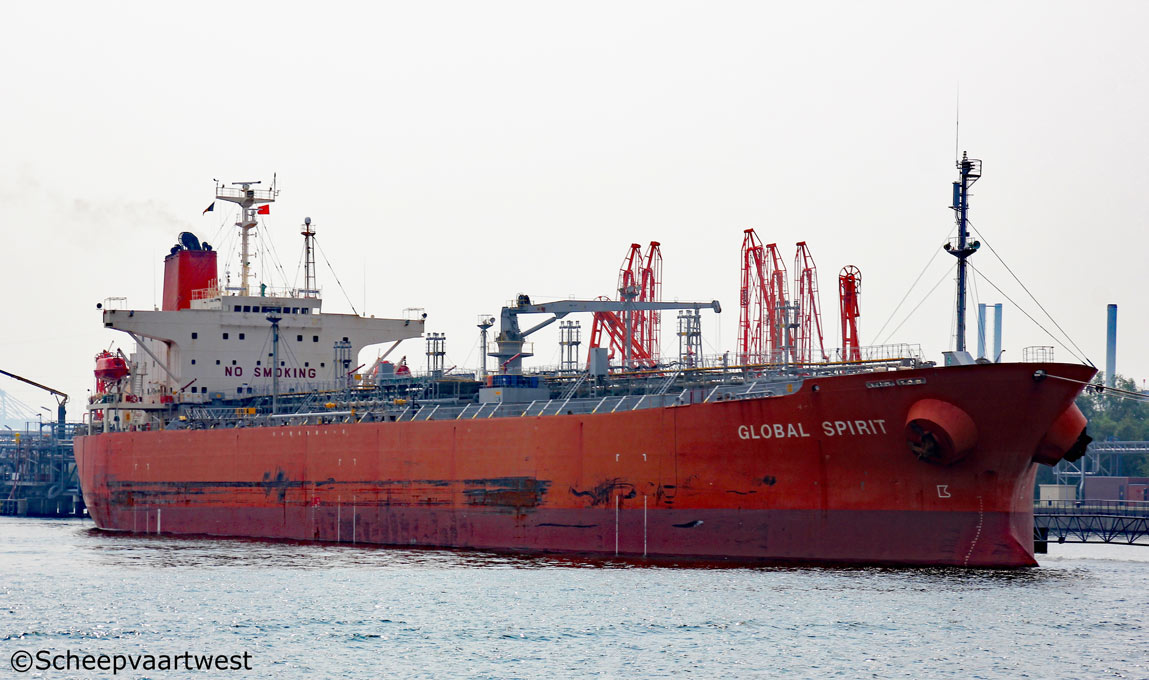

GLOBAL SPIRIT |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9197155 |
|
Call sign |
3FWA9 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
27.950 t registered |
|
DWT |
Summer: 45.303 t Winter: 44.037 t |
|
NT |
11.956 t registered |
|
Displacement |
Summer: 55.262 t Winter: 53.995 t |
|
Length |
179,80 m overall |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 12,12 m Winter: 11,86 m |
|
Moulded L x B x D |
171,00 x 32,20 x 18,80 m |
|
Registered L x B x D |
172,25 x 32,20 x 18,80 m |
|
Air draft |
Summer DWT: 32,78 m Full ballast: 37,40 m |
|
Freeboard |
Summer: 6.714 mm Winter: 6.966 mm |
|
Depth |
18,80 m moulded |
|
Speed |
Max.: 17,0 knots Service: 15,2 knots |
|
Built |
1999 |
|
Keel laid |
10.02.1999 |
|
Launch date |
17.06.1999 |
|
Date of completion |
22.12.1999 |
|
Builder |
Minaminippon Shipbuilding Co., Ltd. Usuki Japan |
|
Yard number |
657 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x 2 stroke single acting 7 cylinder 500 x 1.910 mm diesel engine 9.988 kW at 127,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 532 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 7,9 bar Evaporation: 14,00 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
5x Generators - 4.600 kVA |
|
Number of cargo tanks |
18 |
|
Cargo tank capacity 100% |
54.912,47 m³ |
|
Number of slop tanks |
2 |
|
Pumps |
18 Framo cargo pumps each 350 m³/h 2x Framo cargo pumps each 350 m³/h (slop) 1x Portable Framo pump |
|
Number of pumps able to run simultaneously |
10 |
|
Number of natural segregations (2 valve) |
6 |
|
Tank capacities |
Fuel oil: 2.563 m³ Fresh water: 462 m³ Water ballast: 19.249 m³ |
|
Manager |
Fleet Management Limited |
|
Registered owner |
Fresco Shipping S.A. |
|
Latest data adjustment |
21 June 2016 |
