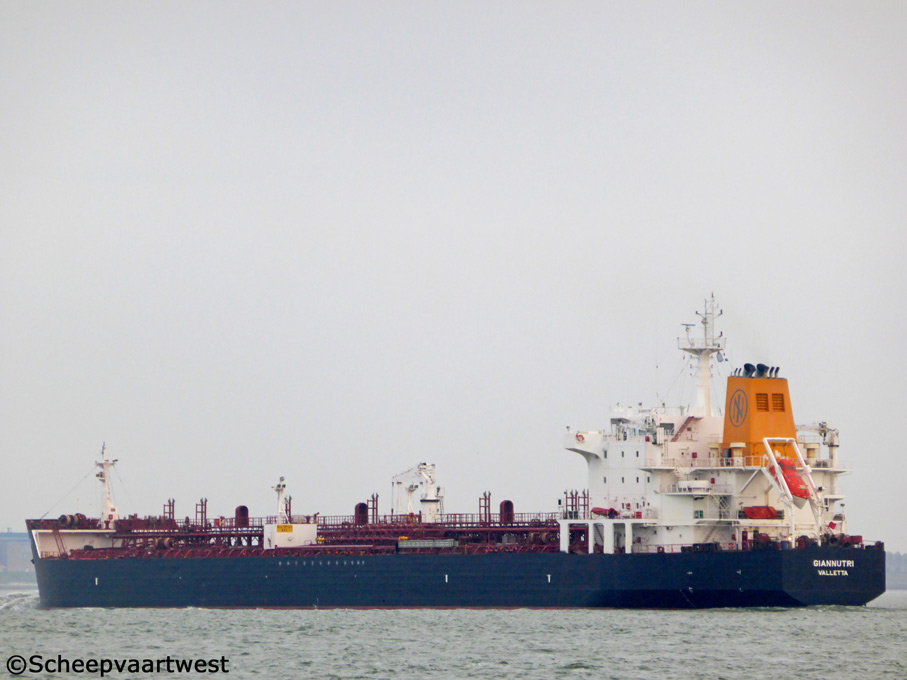

| Westerschelde 20 November 2013 |
 |
 |
 |
 |
 |
||||

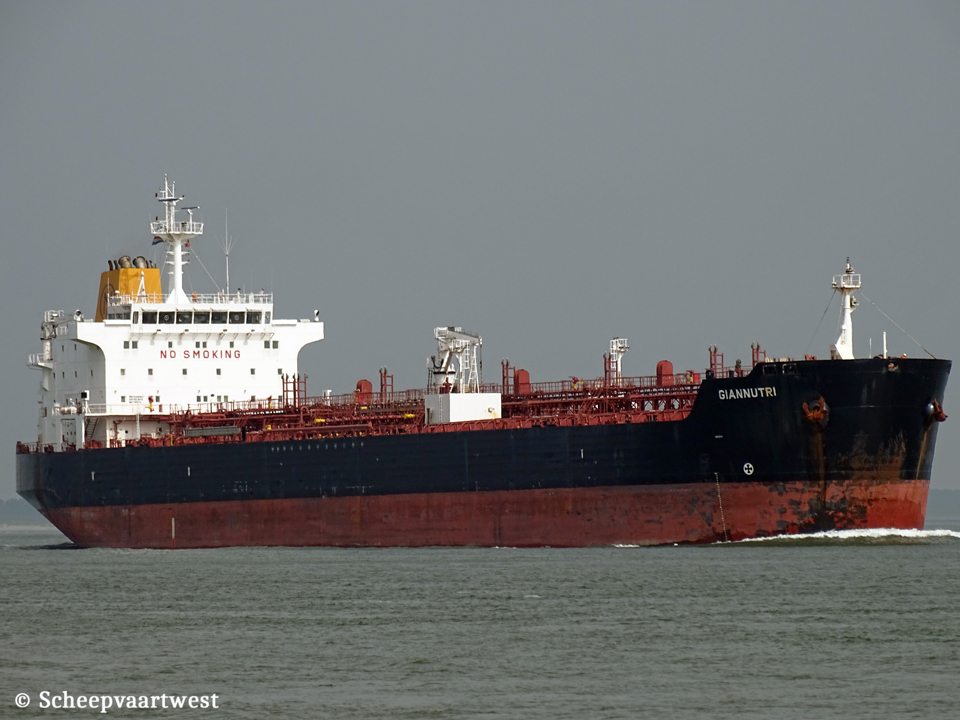

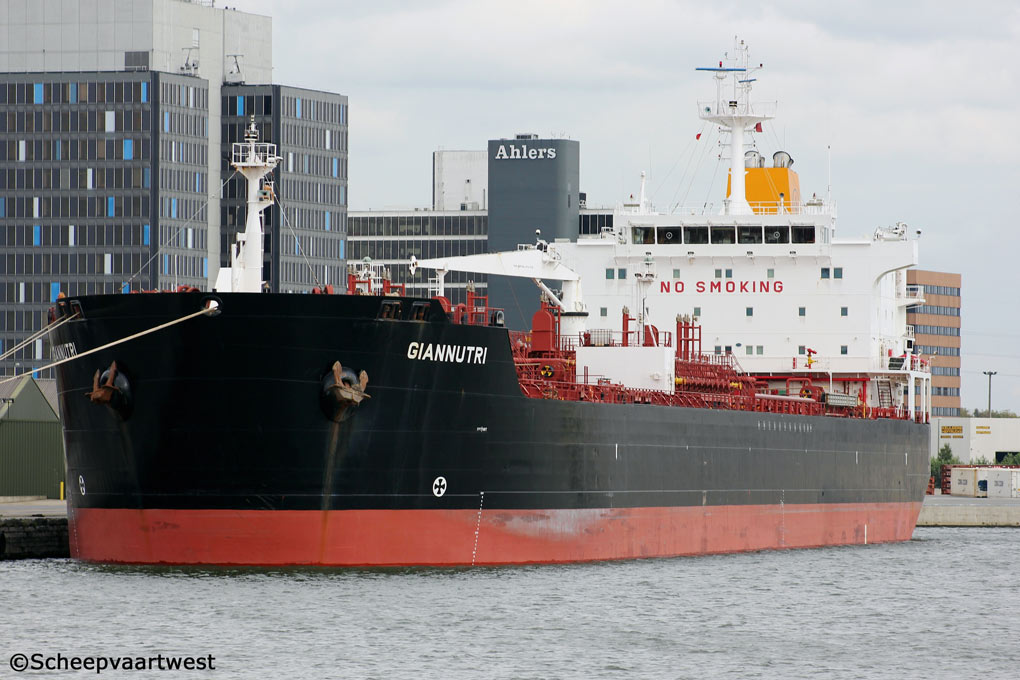

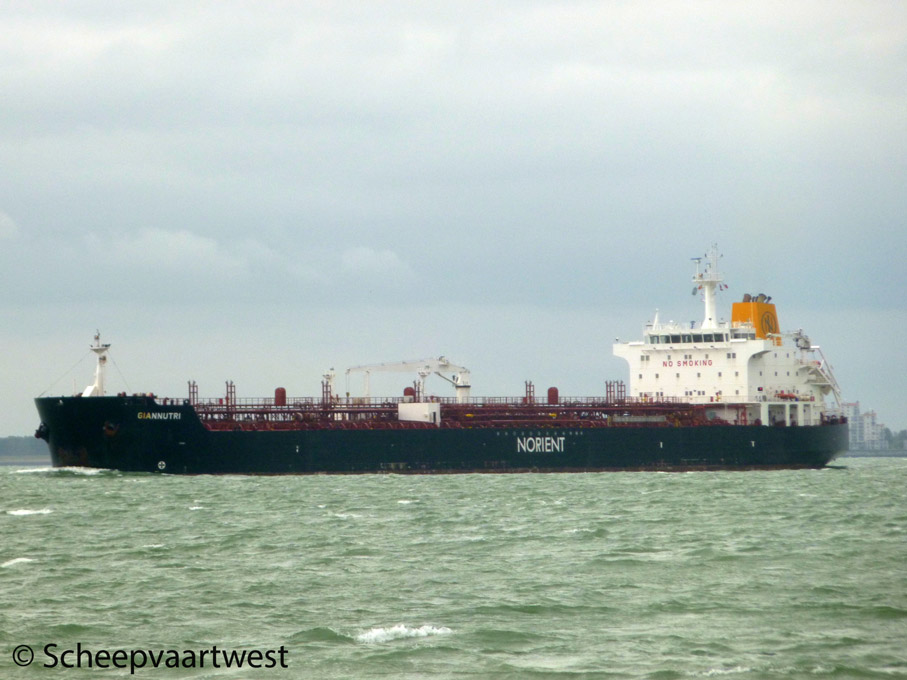

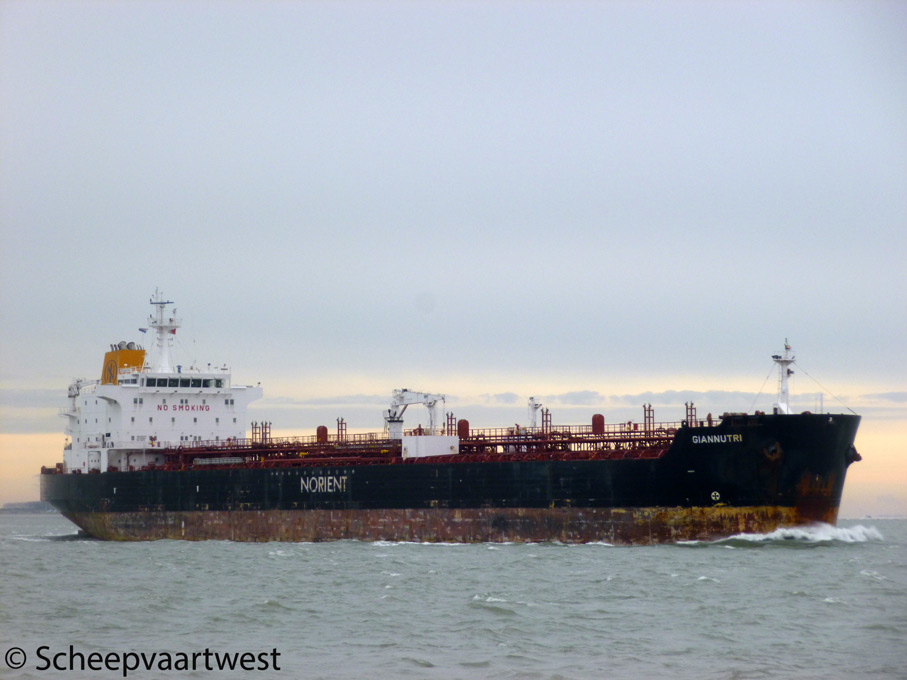

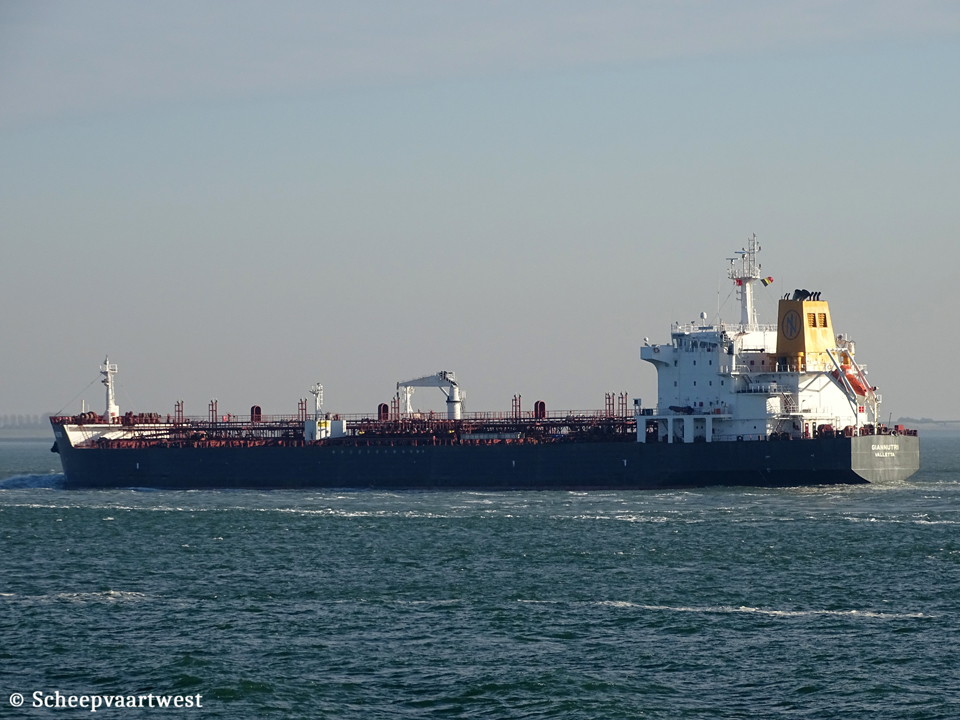

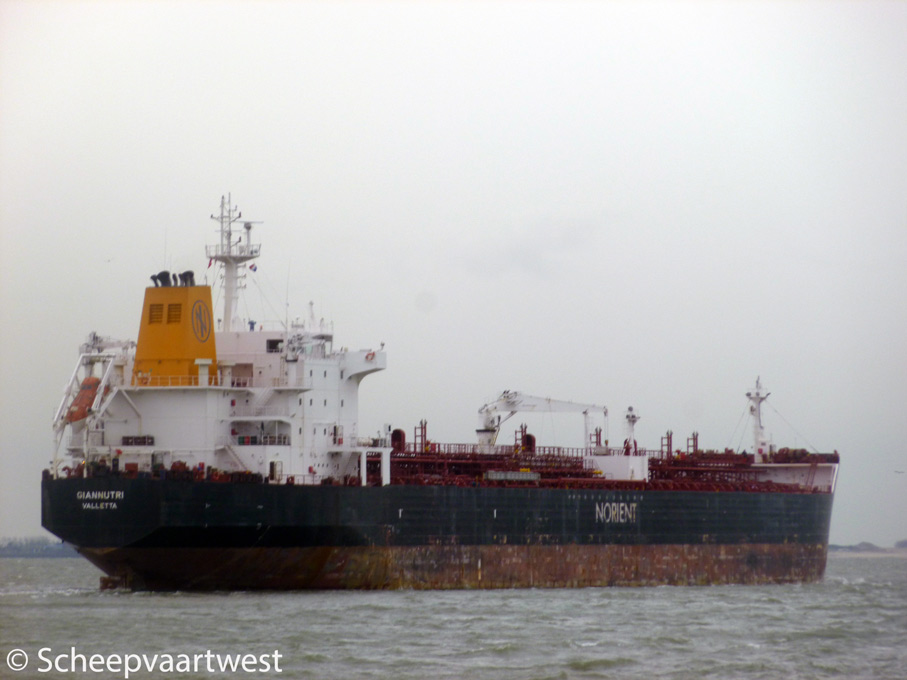

| Westerschelde 20/11/13 | Westerschelde 12/10/12 | Westerschelde 04/10/14 | Antwerpen 07/10/14 | Westerschelde 18/11/18 | ||||
|
Name |
GIANNUTRI |
|
Type |
Tanker for oil & chemicals |
|
IMO-number |
9286047 |
|
Call sign |
9HVX7 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
23.235 t Suez: 24.306,33 t |
|
DWT |
Summer: 37.298,5 t |
|
NT |
10.074 t Suez: 20.859,66 t Panama: 19.353 t |
|
Displacement |
45.974 t |
|
Length |
182,55 m overall 175,00 m between perpendiculars |
|
Breadth |
27,34 m moulded |
|
Draught |
10,85 m moulded |
|
Keel to masthead |
46,10 m |
|
Freeboard |
Summer: 5.514 mm Winter: 5.747 mm |
|
Depth |
16,70 m moulded |
|
Speed |
14,5 knots |
|
Built |
2004 |
|
Keel laid |
09/01/2004 |
|
Launch date |
12/04/2004 |
|
Delivery date |
11/06/2004 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. 1381 Bangeo-Dong Dong-Ku 682-712 Ulsan Republic of Korea |
|
Yard number |
0205 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Transverse: 8 Longitudinal: 3 |
|
Main engine |
1x MAN-B&W 6S50MC-C - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine Mcr 9.480 kW at 127,0 rpm Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, vertical shell type Mission OL - 9MPa Manufacturer: Aalborg Industries A/S 1x Auxiliary boiler, exhaust gas water tube EM09DC12A2 - 12,0 MPa Manufacturer: KangRim Industries. Co., Ltd. |
|
Generators |
3x MAN B&W 6L23/30 main diesel generatorsets each 740 kW |
|
Emergency generator |
1x Cummins LTA-10-D(M) diesel generatorset |
|
Bow thruster |
1x 1.200 bhp / 894,84 KW |
|
Number of cargo tanks |
12 + 2 slop tanks |
|
Tank capacity 98% |
Of each natural segregation with double valve: Seg#1: 6.016,80 m³ (1 p+s) Seg#2: 7.185,94 m³ (2 p+s) Seg#3: 7.170,08 m³ (3w) Seg#4: 7.194,76 m³ (4w) Seg#5: 7.170,08 m³ (5w) Seg#6: 6.340,40 m³ (6w) |
|
Total cubic capacity 98% |
41.078,060 m³ excluding slop tanks |
|
Slop tanks capacity 98% |
878,020 m³ |
|
Maximum loading rate |
3.500 m³/h |
|
Number of pumps |
10x Deepwell cargo pumps each 500 m³/h 1x Screw cargo pump 500 m³/h each 2x Deepwell cargo pumps each 350 m²/h each 2x Deepwell cargo pumps each 150 m³/h each 1x Deepwell cargo pumps 70 m³/h 2x Submerged ballast pumps each 500 m³/h |
|
Manifolds |
Bow to centre manifold: 91,55 m Stern to centre manifold: 91,00 m Distance bridge front to centre of manifold: 57,4 m Distance between cargo manifold centres: 2.000 mm Distance ships rail to manifold: 4.430 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 1.000 mm Distance main deck to centre of manifold: 2.100 mm |
|
Tank capacities |
Ballast: 18.907,3 m³ Fuel oil: 1.282,1 m³ Lub oil: 89,6 m³ Hydraulic oil: 36,8 m³ Fresh water: 261,1 m³ |
|
Anchor equipment |
3x Anchors weight each 7.350 kg Length: 605,00 m Diameter: 66 mm |
|
Crew |
26 |
|
Lifting equipment |
1x Engine room crane - SWL 2,0 t 1x Provision crane port - SWL 2,0 t 1x Provision crane stbd - SWL 2,0 t 1x Hose handling crane - SWL 10,0 t - Max outreach of cranes: 7,33 m Manufacturer: Dong Nam |
|
Commercial manager |
Norient Product Pool Aps Strandvejen 52 2900 Hellerup Denmark |
|
ISM manager |
Interorient Marine Services (Germany) GmbH & Co. KG Kajen 12 DE-20459 Hamburg Germany |
|
Previous managers |
2004 - 2004 Navigestion S.A.M., 98000 Monte Carlo - Monaco 2004 - 2004 Interorient Navigation Co. Ltd., 3011 Limassol - Cyprus 2004 - 2004 Interorient Marine Services (Germany) GmbH & Co. KG DE-20459 Hamburg - Germany 2004 - 2005 Interorient Navigation Co. Ltd., 3011 Limassol - Cyprus |
|
Registered owner |
MT "Baltic Star" Produktentankschiffahrtsgesellschaft mbH & Co. KG, 26931 Elsffleth - Germany Care of Norient Product Pool ApS Strandvejen 52 2900 Hellerup Denmark |
|
Previous owners |
2004 - 2004 Ischia Shipping Limited Tenacity Shipping Limited, Valletta - Malta |
|
Latest data adjustment |
16 October 2022 |
