| Zeebrugge 29 April 2009 |
|
Name |

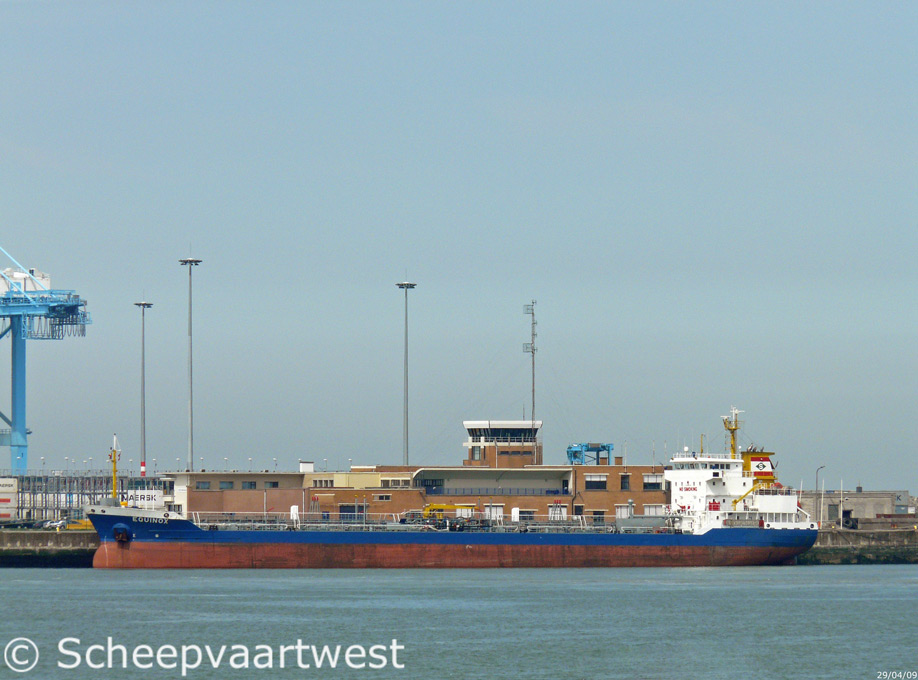

EQUINOX |
|
Type |
Chemical tanker |
|
IMO-number |
9038531 |
|
Call sign |
P3BH5 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
5.050 t |
|
DWT |
9.431 t |
|
NT |
2.829 t |
|
Length |
122,81 m overall 117,71 m between perpendiculars |
|
Breadth |
16,72 m overall |
|
Draught |
Summer: 6,78 m |
|
Bow to bridge |
103,71 m |
|
Keel to masthead |
31,50 m |
|
Freeboard |
2.170 mm |
|
Depth |
8,95 m |
|
Speed |
12,5 knots |
|
Built |
1993 |
|
Keel laid |
10.10.1991 |
|
Launch date |
14.11.1992 |
|
Date of completion |
18.03.1993 |
|
First movement |
09.03.1993 |
|
Builder |
Slob scheepswerf Beheermaatschappij B.V. |
|
Yard number |
393 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x Krupp MaK 8 M 453 C - 4 stroke single acting 8 cylinder 320 x 420 mm diesel engine - 2.940 kW Year of manufacture: 1992 Manufacturer: Krupp MAK Maschinenbau GmbH & Co. KG, Kiel - Germany |
|
Number of screws |
1x Controllable pitch propeller - aft |
|
Boilers |
1x Steam boiler, exhaust gas heated - 10,0 bar 1x Steam boiler, oil fired - 10,0 bar |
|
Electric installations |
1x 380/220 V - 730 kVA 1x 380 V - 810 kVA 1x 380 V - 500 kVA |
|
Shaft generator |
1x 810 kVA |
|
Generators |
1x Main diesel generatorset 730 kVA |
|
Emergency - Harbour gen. |
1x Diesel generatorset 500 kVA |
|
Compressed air receivers |
2x Receivers each250 litres - 30,0 bar |
|
Bow thruster |
1x 400 kW, forward |
|
Number of cargo tanks |
12 |
|
Liquid cargo |
10.109 m³ |
|
Tank capacities |
Ballast: 3.292 m³ Fuel oil: 542 m³ |
|
Crew |
11 |
|
Manager |
Trans-Naval N.V. |
|
Owner |
Goldenavy Marine Ltd. |
|
Owner as completed |
Goldenavy Marine Ltd. |
|
Remarks |
Completed by Breko, Papendrecht #9104 |
