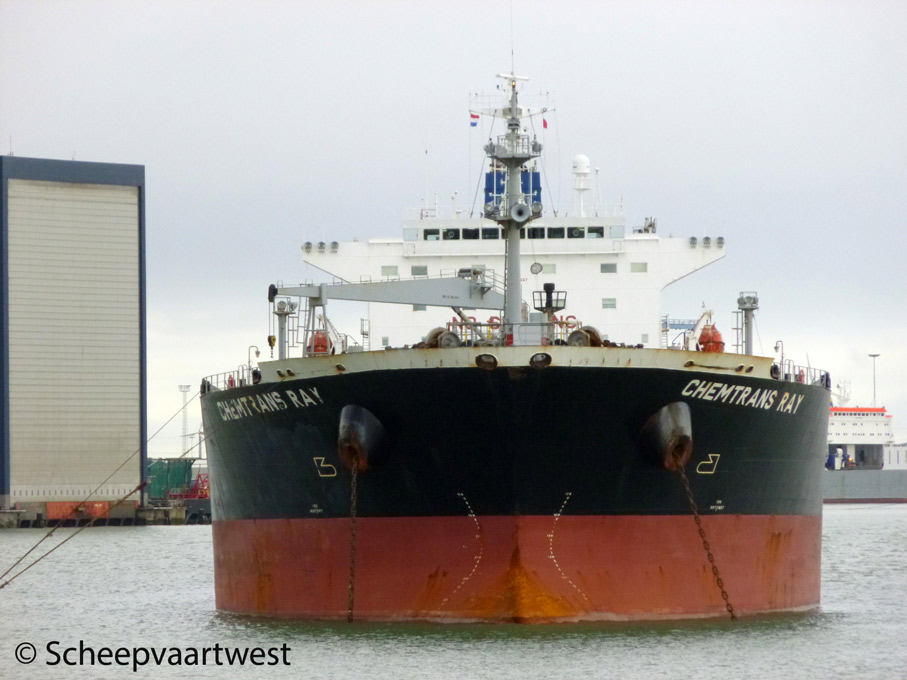

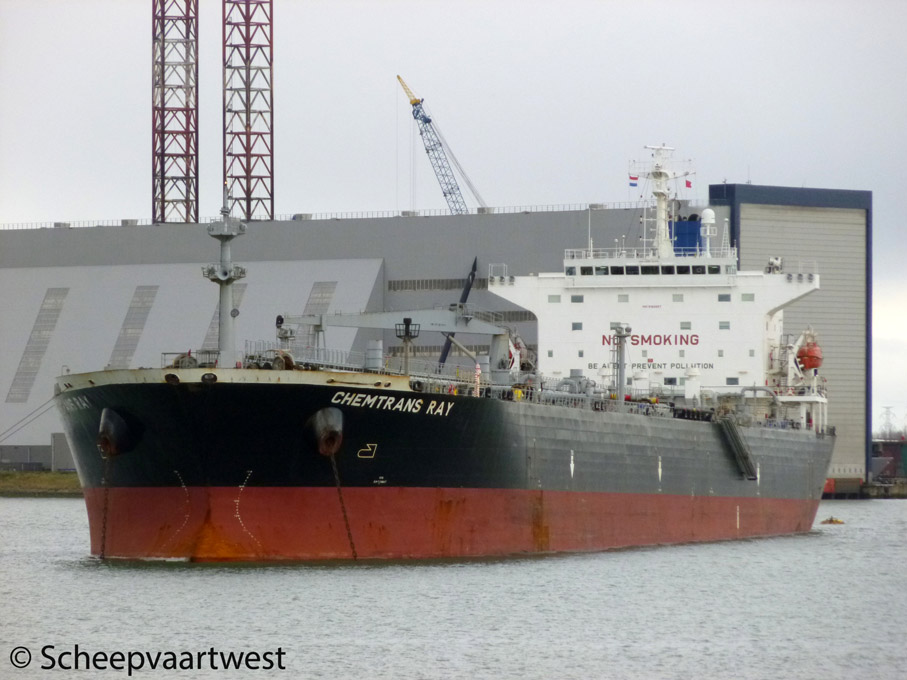

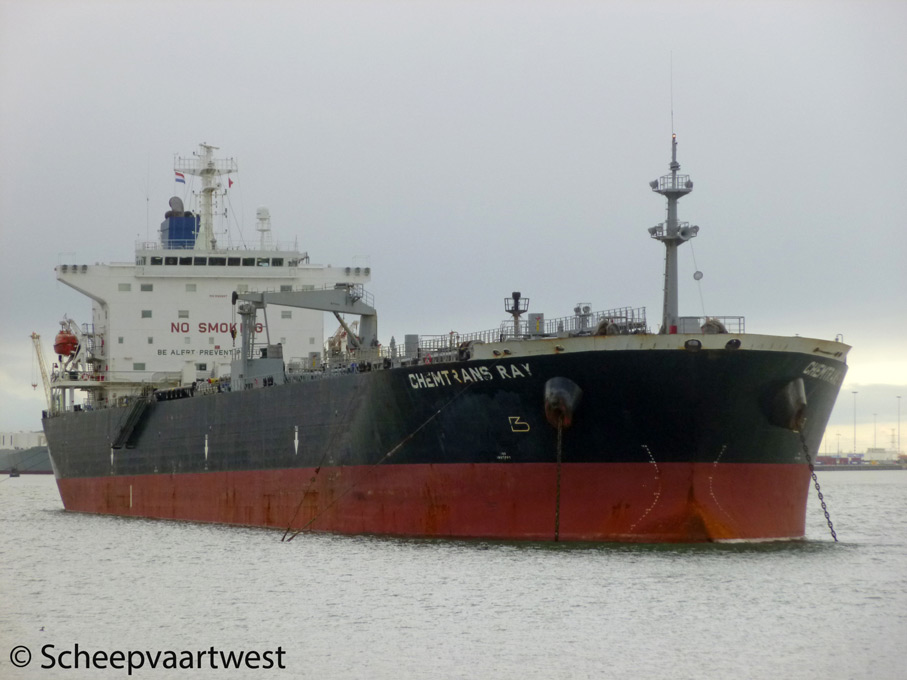

| Westerschelde 30 November 2012 |
 |
 |
|
| Westerschelde 30/11/12 | Westerschelde 30/11/12 | |
|
Name |
CHEMTRANS RAY |
|
Previous names |
19.05.2002 - 18.12.2003 Emerald Ray |
|
Type |
Crude oil / Product carrier |
|
IMO-number |
9182667 |
|
Call sign |
A8HG4 |
|
Flag |
Republic of Liberia |
|
Previous flags |
19.05.2002 - 18.12.2003 Republic of Panama |
|
Port of registry |
Monrovia |
|
GT |
40.516 t registered Suez: 42.533,87 t |
|
DWT |
Summer: 71.637 t |
|
NT |
20.305 t Suez: 37.858,79 t Panama: 33.487,86 t |
|
Length |
227,00 m overall 217,00 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
11,60 m |
|
Freeboard |
9.514 mm |
|
Depth |
20,20 m moulded |
|
Built |
2000 |
|
Keel laid |
30.04.1999 |
|
Date of completion |
08.07.2000 |
|
Builder |
Hudong-Zhonghua Shipbuilding (Group) Co., Ltd. |
|
Yard number |
H1262A |
|
Hull material |
Ordinary Strength Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Non tight: 2 Oil tight: 12 |
|
Main engine |
1x Man B&W 5S60MC - 5 cylinder 600 x 2.292 mm diesel engine - 10.197,82 kW Manufacturer: Hudong Heavy Machinery Co., Ltd. |
|
Propellers |
1 |
|
Boilers |
2x Auxiliary Water Tube Boiler AQ-9 - 18,0 bar 1x Composite Auxiliary Boiler AQ-16 - 9,0 bar Manufacturer: Aalborg Industries China |
|
Generators |
2x Diesel generatorset each 600 kW |
|
Number of cargo tanks |
11 |
|
Cargo tanks capacity 100% |
78.766 m³ / 74.040,04 t |
|
Number of tanks |
Ballast: 10 Lubricating oil: 7 Fuel oil: 6 Diesel oil: 4 fresh water: 3 Slop: 2 Waste water: 1 Chain: 1 Sludge: 1 |
|
Tank capacities |
Fresh water: 413 m³ Fuel oil: 2.800 m³ / 2.632 t Ballast: 32.364 m³ |
|
Lifting equipment |
1x Crane - SWL 15,0 t |
|
Manager |
Indigo Marine |
|
Operator |
CST - Chemikalien Seetransport GmbH |
|
Owner |
MT 'Colonian Sun' Schifffahrtsges. mbH and Co KG |
|
Registered owner |
Indigo Marine |
|
Last update |
26.02.2013 |
