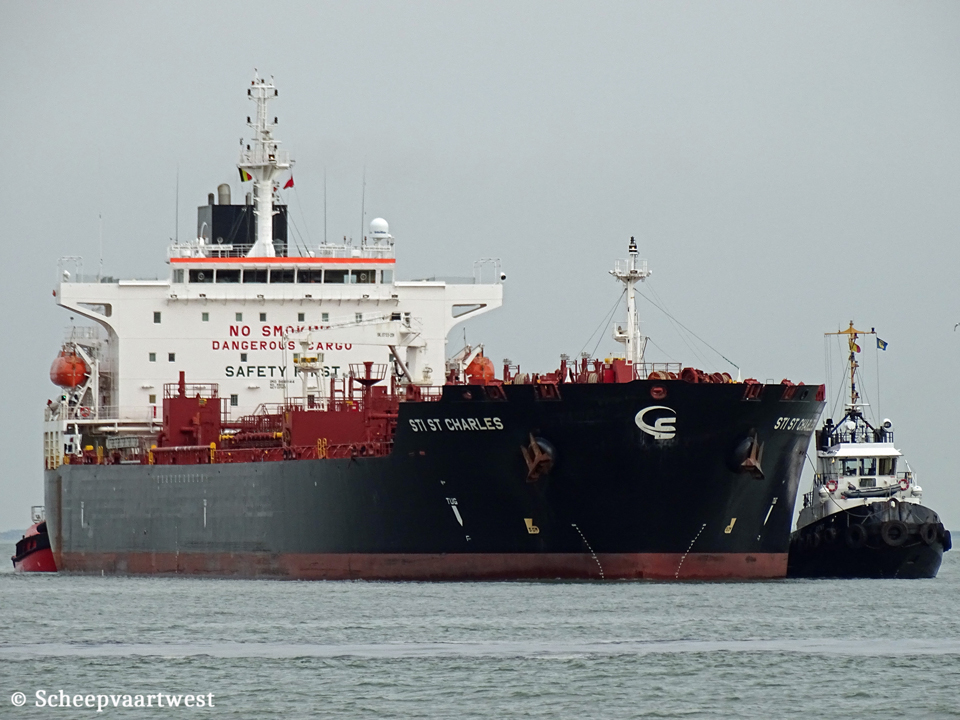

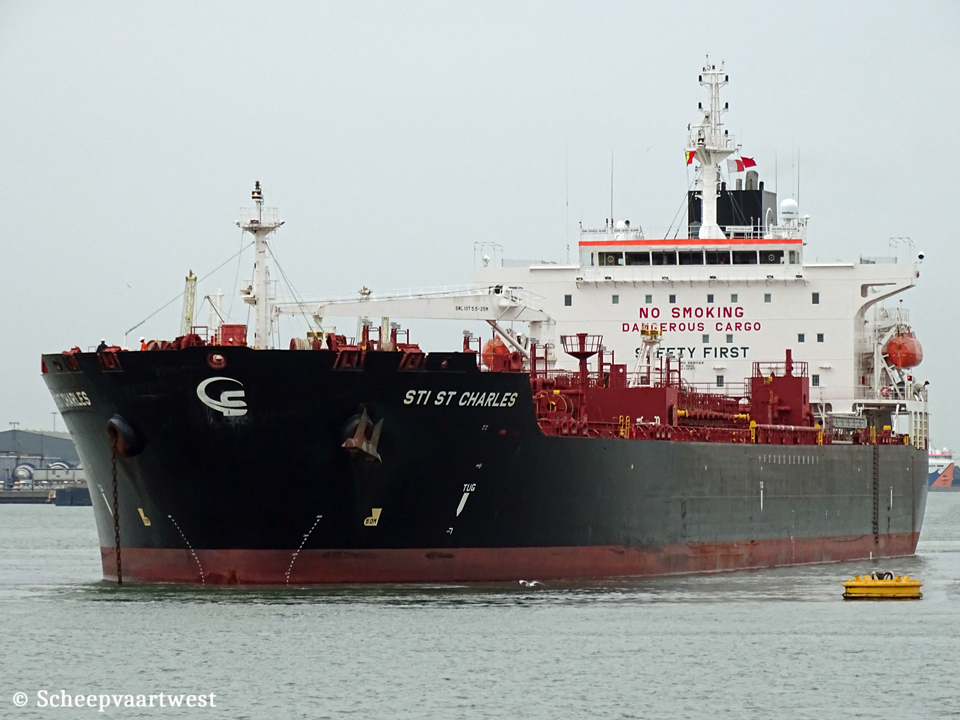

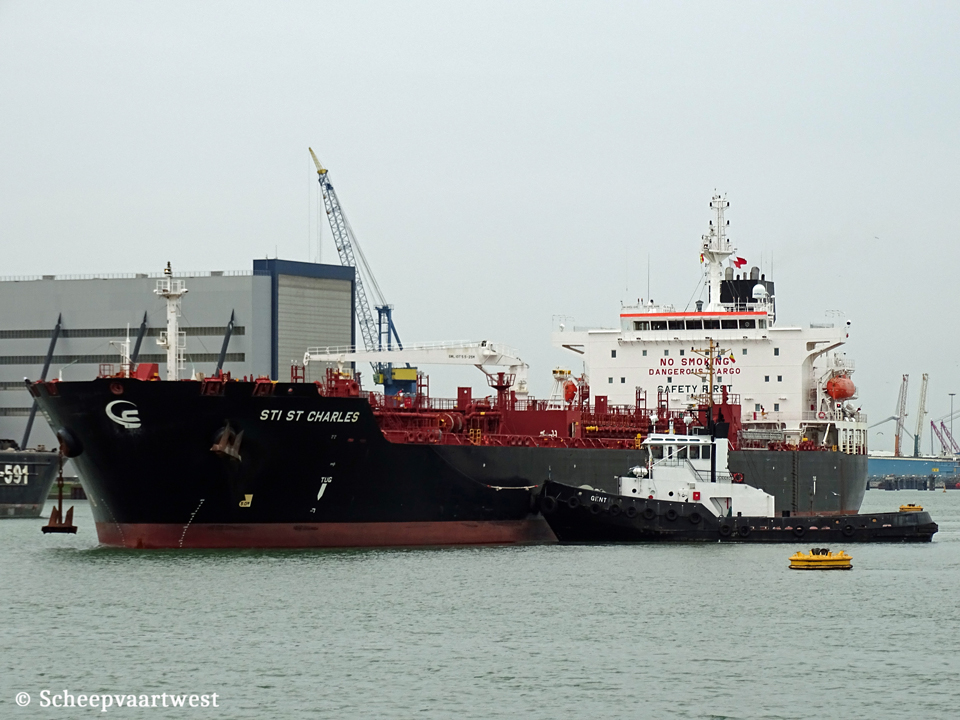

| Vlissingen 10 June 2016 |
 |
 |
|
| Westerschelde 10/06/16 | Westerschelde 10/06/16 | |
|
Name |
STI ST CHARLES |
|
Type |
Oil and chemical carrier |
|
IMO-number |
9681144 |
|
Call sign |
V7HZ6 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
29.767 t Suez: 31.480,52 t |
|
DWT |
49.990 t |
|
NT |
13.787 t Panama: 24.710 t Suez: 27.395,18 t |
|
Length |
183,00 m overall 174,00 m between perpendiculars |
|
Breadth |
32,24 m moulded |
|
Draught |
Summer: 13,30 m |
|
Keel to mast end |
48,55 m |
|
Freeboard |
5.828 mm |
|
Depth |
19,10 m moulded |
|
Speed |
14,9 knots |
|
Built |
2014 |
|
Keel laid |
17/03/2014 |
|
Launch date |
16/05/2014 |
|
Date of completion |
26/06/2014 |
|
Builder |
SPP Shipbuilding Co., Ltd. 537, Haeansaneop-Ro Sanam-Myeon, Sacheon-Si, Gyeongsangnam-Donam Do, 664-942 South Korea |
|
Yard number |
S5126 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
HHI/MAN-B&W 6S50ME-B9.2 - 6 cylinder 500 x 2.214 mm combustion engine Mcr 7.240 kW / 9.844 hp at 99,0 rpm Manufacturer: HHI Engine & Machinery Division |
|
Propellers |
1x Fixed pitch propeller Manufacturer: HHI Engine & Machinery Division |
|
Boilers |
1x Fired boiler - 8,5 MPa 1x Fired exhaust gas boiler - 8,5 MPa Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 900 kW Manufacturer: HHI Electro Electric System |
|
Emergency generator |
1x Diesel generatorset 180 kW |
|
Cargo tank capacity |
54.010,90 m³ |
|
Number of tank |
12 + 2 slop tanks |
|
Number of pumps |
12x cargo pumps each 600 m³/h |
|
Tank capacities |
Ballast: 23.142,80 m³ Diesel oil: 296,30 m³ Fuel oil: 1.258,80 m³ Lub oil: 101,20 m³ Fresh water: 325,70 m³ Hydraulic oil: 19,80 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 4,5 t 1x Hose handling crane - SWL 10,0 t 1x Provision crane - SWL 4,5 t Manufacturer: Dongnam Marine Crane Co., Ltd. |
|
Crew |
28 |
|
Commercial manager |
Scorpio Commercial Management S.A.M. L’Exotique, 99 Boulevard du Jardin Exotique 98000 Monaco-Ville Monaco |
|
ISM manager |
Scorpio Marine Management India Pvt Ltd. Scorpio House, Hiranandani Business Park, Central Avenue, Hirandani Gardens, Powai, Mumbai, 400076 India |
|
Registered owner |
STI St Charles Shipping Company Limited |
|
Latest data adjustment |
02 December 2023 |
