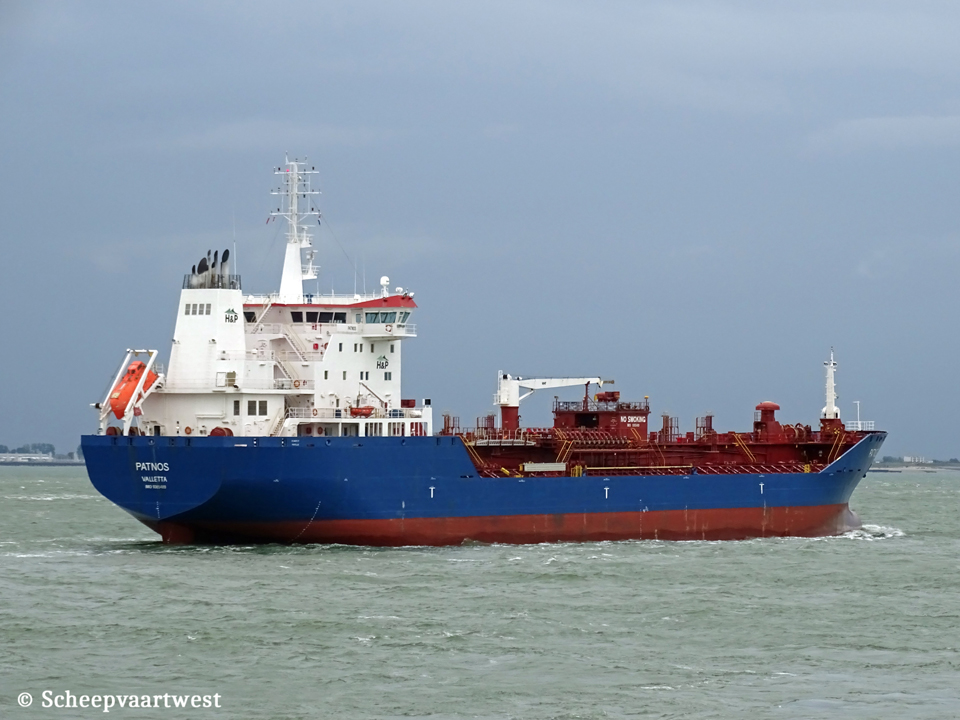

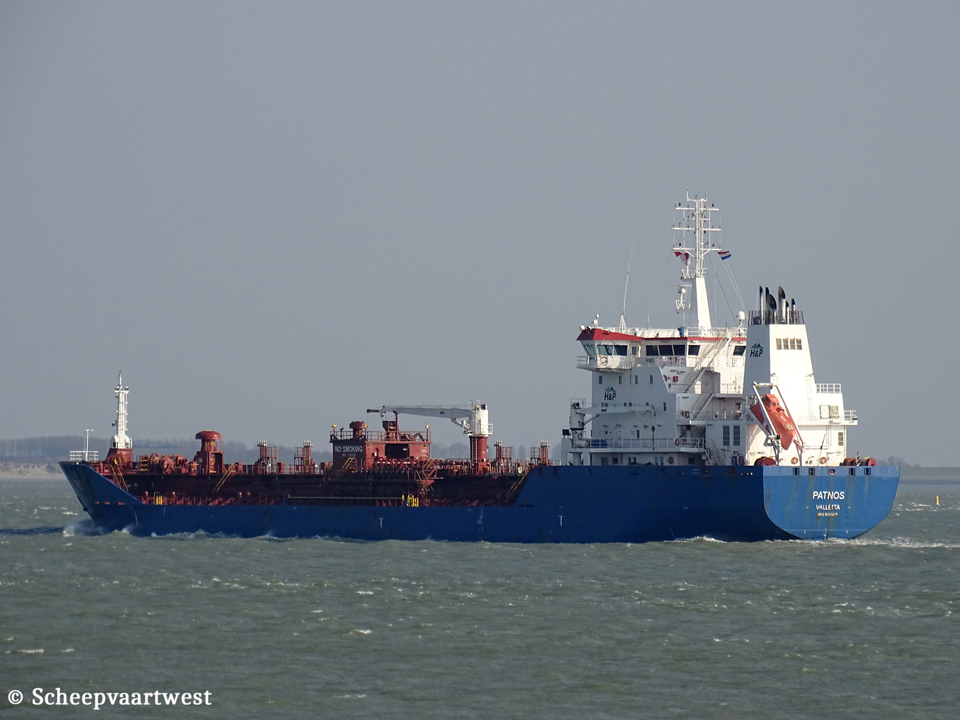

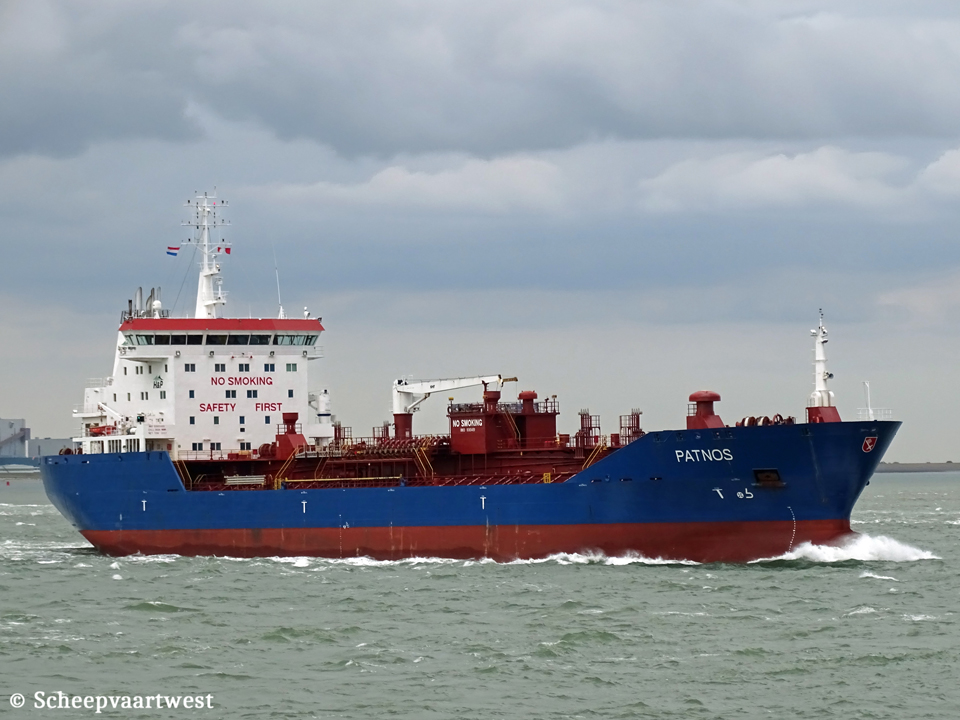

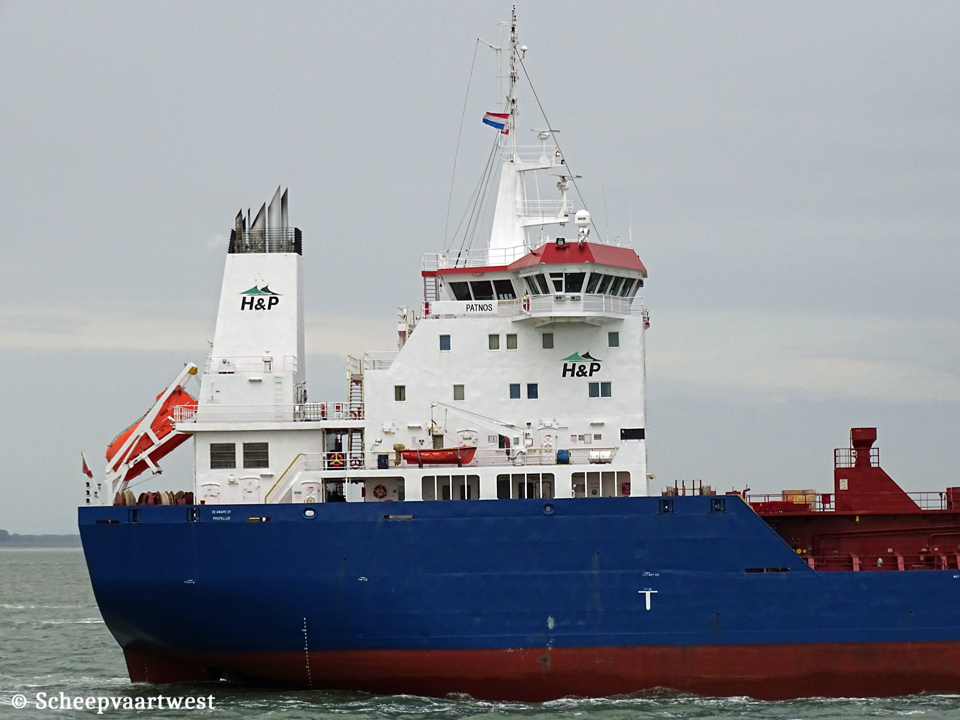

| Westerschelde 16 September 2016 |
 |
 |
 |
||
| Westerschelde 16/06/16 | Westerschelde 16/06/16 | Westerschelde 27/02/16 | ||
|
Name |
PATNOS |
|
Previous names |
2006 - 06/2010 Marida Patnos |
|
Type |
Tanker for chemicals and oil products |
|
IMO-number |
9365489 |
|
Call sign |
CQEJ4 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
2006- 2021 Malta, Valletta - Call sign: 9HOH9 |
|
GT |
11.935 t |
|
DWT |
16.714 t |
|
NT |
5.137 t |
|
Length |
144,05 m overall 133,80 m between perpendiculars |
|
Breadth |
23,03 m extreme |
|
Draught |
Summer: 8,90 m |
|
Keel to mast end |
44,50 m |
|
Depth |
12,40 m |
|
Speed |
14,8 knots |
|
Built |
2006 |
|
Keel laid |
18/01/2006 |
|
Launch date |
15/05/2006 |
|
Date of completion |
30/11/2006 |
|
Builder |
Jiangnan Shipyard (Group) Co., Ltd. Shanghai China |
|
Yard number |
H2335 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6L48/60B - 4 stroke 6 cylinder 480 x 600 mm combustion engine 6.300 kW / 8.565 hp at 514 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
Auxiliary boiler, composite Mission OC Auxiliary boiler, oil/gas fired Mission OM Builder: Aalborg Industries A/S |
|
Shaft generator |
1x 1.500 kVA |
|
Generators |
1x Wärtsilä W6L20 main diesel generatorset 2x Wärtsilä W4L20 main diesel generatorsets |
|
Emergency generator |
1x AGCO Sisu 634 diesel generatorset 125 kVA |
|
Bow thruster |
1x 750 kW |
|
Number of cargo tanks |
12 + 2 slop tanks |
|
Cargo tank capacity |
18.868,7 m³ |
|
Number of pumps |
12x Cargo pumps each 300 m³/h |
|
Tank capacities |
Ballast: 8.180 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 58 mm |
|
Crew size |
20 |
|
Manager |
Harren Tanker Management GmbH & Co,. KG Hermann-Hollerith-Straße 10 28355 Bremen Germany |
|
Registered owner |
HPS GmbH & Co KG "PATNOS" Care of Harren & Partner Ship Management GmbH & Co KG Hermann-Hollerith-Strasse 10 28355 Bremen Germany |
|
Latest data adjustment |
14 November 2023 |
