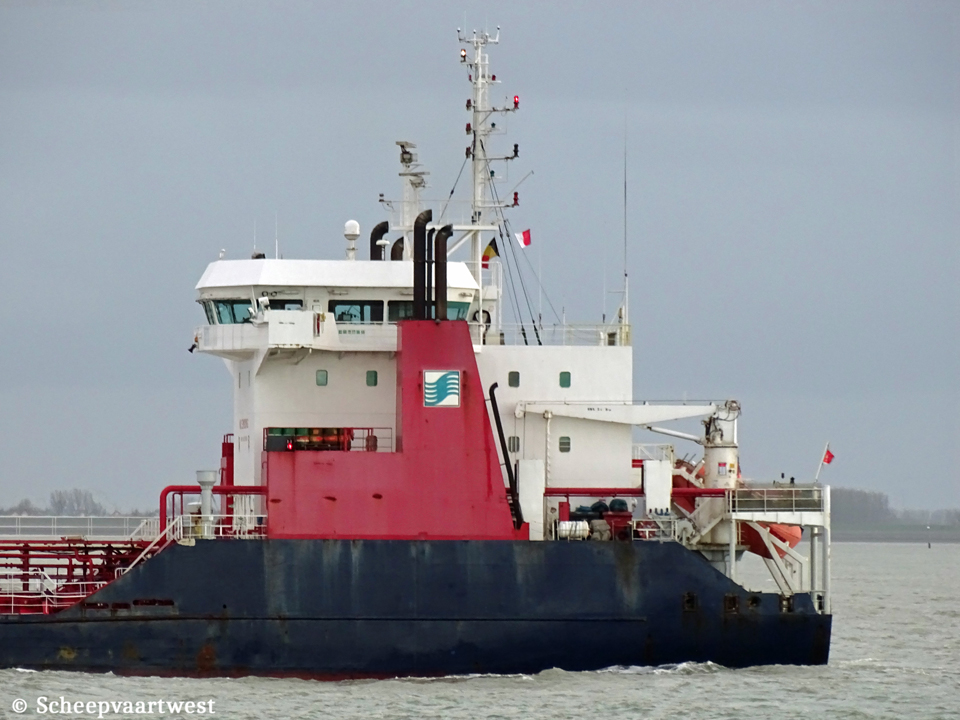

| Westerschelde 30 January 2016 |
 |
|
| Westerschelde 30/01/16 | |
|
Name |
SCOT BERLIN |
|
Previous names |
2003 - 2015 Wappen Von Berlin |
|
Type |
Chemical / Products tanker |
|
IMO-number |
9255804 |
|
Call sign |
9HA4092 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2033 - 2007 Germany, Hamburg 2007 - 2010 United Kingdom - Call sign: VQUL9 2010 2015 Liberia, Monrovia - Call sign: A8XB4 |
|
GT |
5.145 t |
|
DWT |
8.254 t |
|
NT |
2.532 t |
|
Length |
116,90 m overall 110,40 m between perpendiculars |
|
Breadth |
18,03 m extreme |
|
Draught |
Summer: 7,41 m |
|
Keel to mast end |
27,00 m |
|
Depth |
9,40 m moulded |
|
Speed |
15,0 knots |
|
Built |
2003 |
|
Keel laid |
15/10/2001 |
|
Launch date |
02/08/2002 |
|
Date of completion |
31/01/2003 |
|
Builder casco |
Santierul Naval Damen Galati S.A. Romania Yard number: 988 |
|
Builder completion |
S.W. Paul Lindenau GmbH Kiel Germany Yard number: 261 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
2x MAN-B&W 6L27/38 - 4 stroke 6 cylinder 270 x 380 mm combustion engines each 1.800 kW at 750 rpm Total: 3.600 kW / 4.894 hp |
|
At 750 rpmPropellers |
2x Controllable pitch propeller |
|
Generators |
3x Main diesel generatorsets each 378 kW |
|
Bow thruster |
1x 400 kW |
|
Number of tanks |
14 + 2 slop tanks |
|
Cargo tank capacity 100% |
Liquid: 8.872 m³ |
|
Number of pumps |
12x Framo cargo pumps each 200 m³/h 2x Framo cargo pumps each 300 m³/h |
|
ISM & commercial manager |
Scot Gemi Isletmeciligi AS Bağdat Caddesi Çam Fıstığı S. No:2/5 34728 Kadıköy/Istanbul Turkey |
|
Registered owner |
Scot Berlin SA Daire 5 Cam Fistigi Sokak 305/A,Caddebostan Mah, Kadikoy 34398 Istanbul Turkey |
|
Previous names & owners |
2003 - 2015 Wappen Von Berlin - Wappen Reederei GmbH & Co., KG, Hamburg - Germany |
|
Latest data adjustment |
29 September 2023 |
