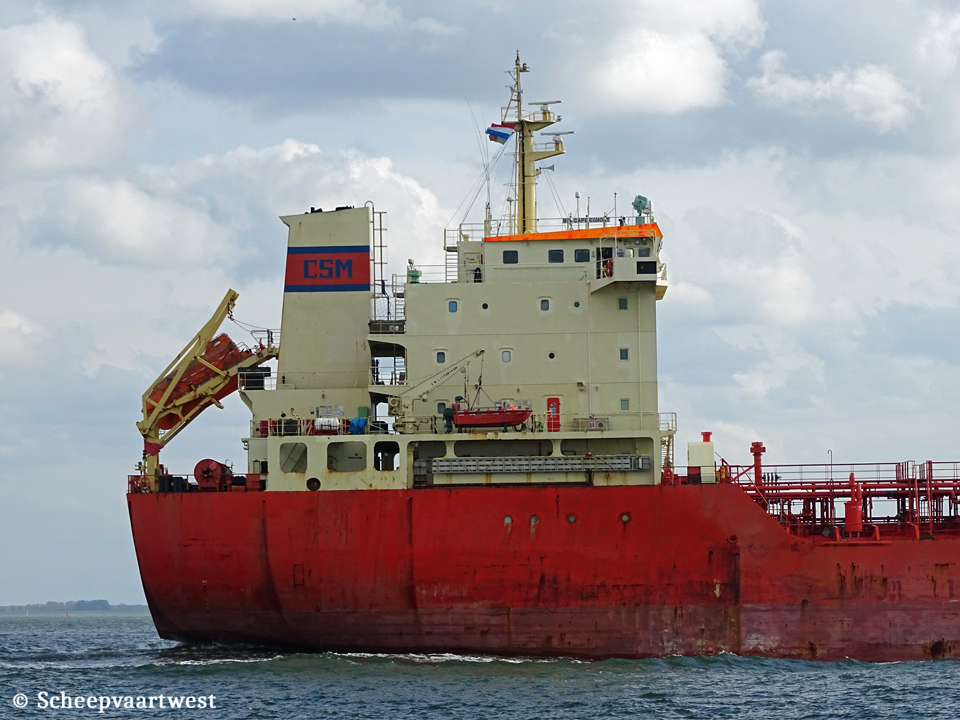

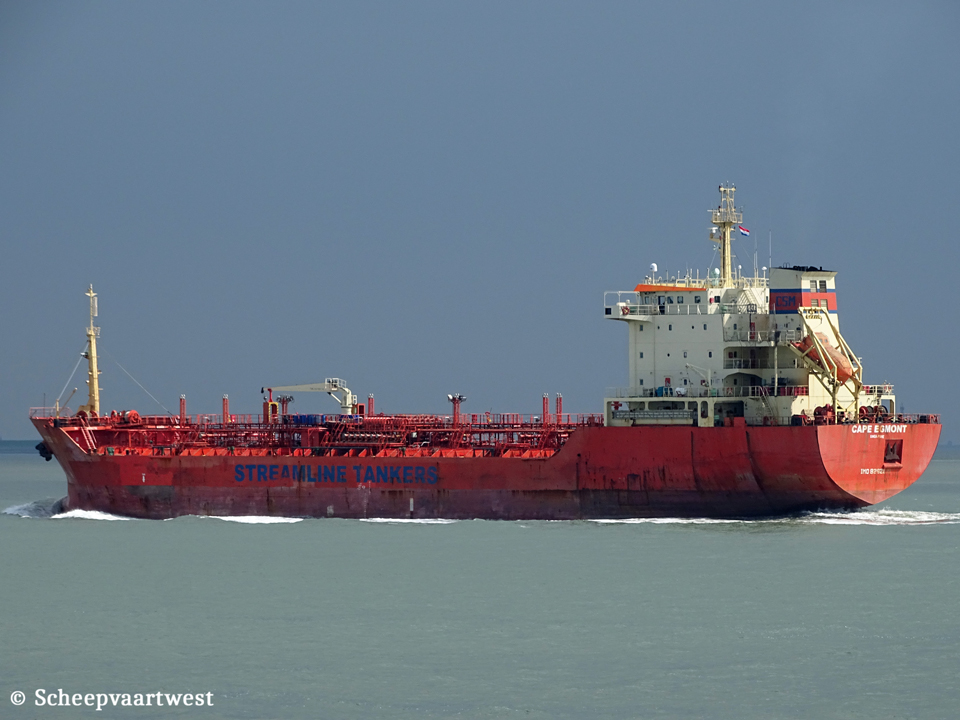

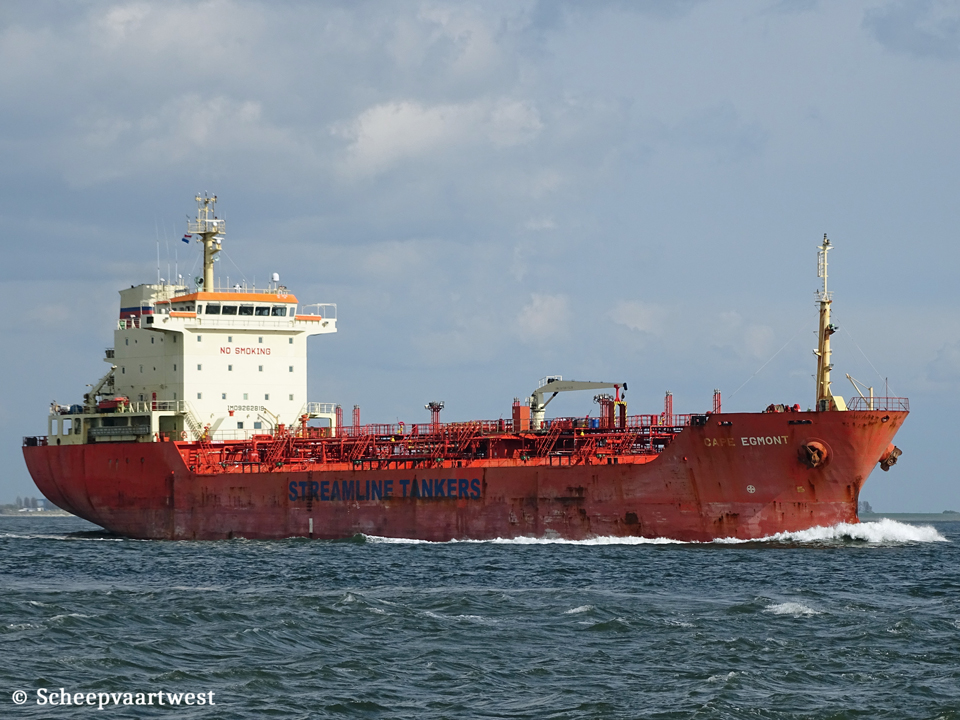

| Westerschelde 15 April 2017 |
 |
 |
|
| Westerschelde 15/04/17 | Westerschelde 14/04/17 | |
|
Name |
CAPE EGMONT |
|
Previous names |
2003 - 2003 Samho Family |
|
Type |
Chemical/Oil products tanker |
|
IMO-number |
9262819 |
|
Call sign |
9V3617 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
Previous flags |
Marshall Islands, Majuro - Call sign V7NI5 |
|
GT |
8.351 t Suez: 8.981,41 t |
|
DWT |
Summer: 12.760,91 t Winter: 12.368,20 t |
|
NT |
3.791 t Suez: 6.965,31 t Panama: 7.061 t |
|
Displacement |
Summer: 16.790,41 t Winter: 16.397,70 t |
|
Length |
127,20 m overall 119,45 m between perpendiculars |
|
Breadth |
20,40 m extreme |
|
Draught |
Summer: 8,51 m Winter: 8,34 m |
|
Keel to mast end |
40,80 m |
|
Air draft |
Summer deadweight: 32,28 m Normal ballast: 34,08 m Lightship: 38,31 m |
|
Freeboard |
Summer: 3,010 mm Winter: 3.160 mm |
|
Depth |
11,50 m moulded |
|
Speed |
14,0 knots in ballast 13,7 knots laden |
|
Built |
2003 |
|
Keel laid |
20/06/2002 |
|
Launch date |
19/04/2002 |
|
Date of completion |
22/08/2003 |
|
Builder |
Samho Shipbuilding Tongyoung South Korea |
|
Yard number |
1037 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x STX/MAN-B&W 7S5MC-MK7 - 2 stroke 7 cylinder combustion engine 5.271 kW / 7.250 bhp |
|
Propellers |
1 |
|
Generators |
3x Main diesel generatorsets each 900 kW |
|
Bow thruster |
1x 536 bhp |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity 98% |
12.804,9 m³ |
|
Capacity of each natural segregation 98% |
Seg#1: 1.631,60 m³ (1 P, 1 S) Seg#2: 1.849,90 m³ (2 P, 2 S) Seg#3: 2.337,70 m³ (3 P, 3 S) Seg#4: 2.336,10 m³ (4 P, 4 S) Seg#5: 2.329,90 m³ (5 P, 5 S) Seg#6: 2.319,70 m³ (6 P, 6 S) Seg#7: 538,90 m³ (Slop P, Slop S) |
|
Slop tank capacity 98% |
538,90 m³ |
|
Number of pumps |
2x Centrifugal ballast pumps each 350 m³/h 12x Centrifugal cargo pumps each 300 m³/h 2x Centrifugal cargo pumps each 100 m³/h |
|
Manifolds |
Distance bridge front to centre of manifold: 40,80 m Bow to centre manifold: 58,10 m Stern to centre manifold: 69,10 m Distance between cargo manifold centres: 850 mm Distance ships rail to manifold: 4.800 mm Distance manifold to ships side: 4.920 mm Top of rail to centre of manifold: 370 mm Distance main deck to centre of manifold: 2.030 mm Spill tank grating to centre of manifold: 700 mm |
|
Tank capacities |
Fuel oil: 572,48 m³ Diesel oil: 186,59 m³ |
|
Lifting equipment |
1x Crane - SWL 3,0 t |
|
Commercial manager |
Streamline Tankers GmbH Grosse Elbestrasse 275 D-22767 Hamburg Germany |
|
ISM manager |
Columbia Shipmanagement (Singapore) Pte Ltd 9,Temasek Boulevard 20-30,Suntec Tower Two Singapore 038989 Republic of Singapore |
|
Registered owner |
Diamond SPV2 Pte. Ltd. 80 Robinson Road #02-00 Singapore 068898 Republic of Singapore |
|
Renamed |
2019- 2020 Sea Glory Marshall Islands, Majuro - Call sign: V7A2736 Owner & manager: Columbia Shipmanagement, Limassol - Cyprus 2020 Lourdes India - Call sign: VTGP Owner & manager: Columbia Shipmanagement Deutschland, Hamburg - Germany |
|
Latest data adjustment |
17 July 2023 |
