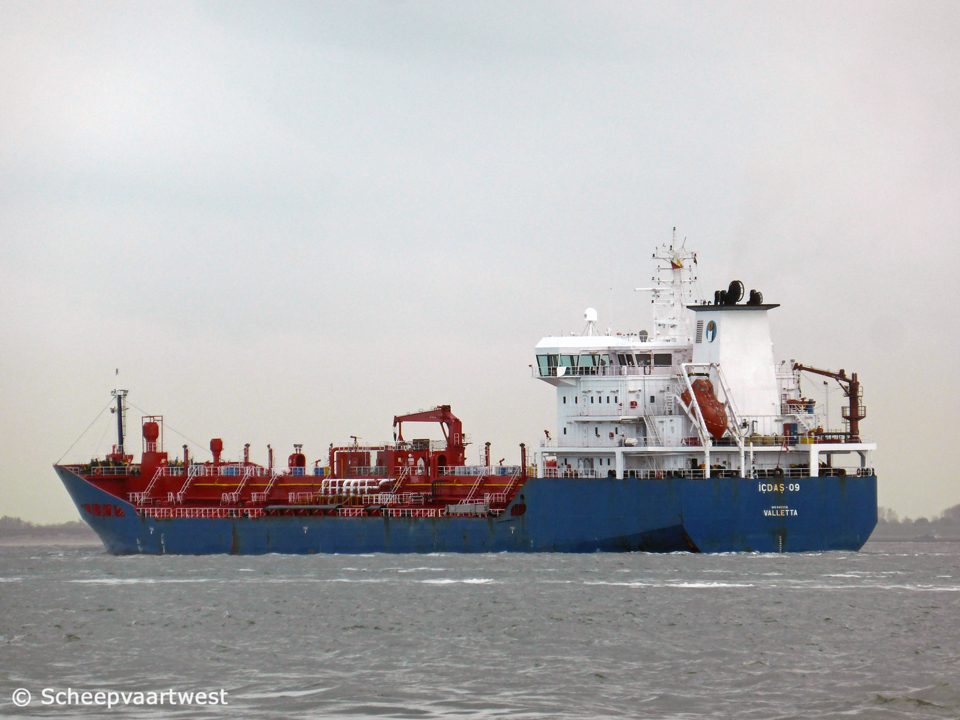

| Westerschelde 07 May 2015 |
|
Name |
ICDAS-09 |
|
Type |
Chemical tanker |
|
IMO-number |
9421219 |
|
Call sign |
9HA2822 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2010 - 2012 Turkey - Call sign: TCYG7 |
|
GT |
13.097 t |
|
DWT |
19.983 t |
|
NT |
6.370 t |
|
Length |
149,95 m overall 143,30 m between perpendicular |
|
Breadth |
23,20 m extreme |
|
Draught |
Summer: 9,86 m |
|
Keel to mast end |
41,06 m |
|
Freeboard |
3.217 mm |
|
Depth |
13,05 m |
|
Speed |
15,0 knots |
|
Built |
2010 |
|
Keel laid |
17/10/2008 |
|
Date of completion |
21/08/2010 |
|
Builder |
Icdas Celik Enerji Tersane ve Ulasim San. A.S. - Biga Yard Istanbul Turkey |
|
Yard number |
13 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 8S35ME-B9 - 2 stroke single acting 8 cylinder 350 x 1.550 mm combustion engine Mcr 6.962 kW / 9.466 hp at 167 rpm |
|
Propellers |
1x Controllable pitch propeller - aft at 167 rpm |
|
Boilers |
2x Thermal oil heater, oil fired 1x Thermal oil heater, exhaust heated |
|
Shaft generator |
1x 1.200 kW / 450 Volt 60 Hz |
|
Generators |
3x Main diesel generatorsets each 750 kW / 450 Volt 60 Hz |
|
Bow thruster |
1x Tunnel thruster 552 kW / 750 bhp, forward |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity 98% |
20.980 m³ |
|
Slop tank capacity 98% |
714 m³ |
|
Number of pumps |
12x Cargo pumps each 350 m³/h |
|
Tank capacities |
Ballast: 7.931,1 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 58 mm |
|
Crew size |
25 |
|
Manager |
Bryggen Shipping & Trading Bergen Norway |
|
Owner |
Istanbul Celik Enerji Istanbul Turkey |
|
Renamed |
2018 Kitikmeot W Marshall Islands, Majuro - Call sign: V7A6022 2023 Kitikmeot W Canada, St. John's - Call sign: CFA3304 Owner & manager: Coastal Shipping Ltd., Happy Valley-Goose Bay NL A0P 1C0 - Canada. |
|
Latest data adjustment |
14 July 2023 |
