| Westerschelde 29 October 2019 |
|
Name |

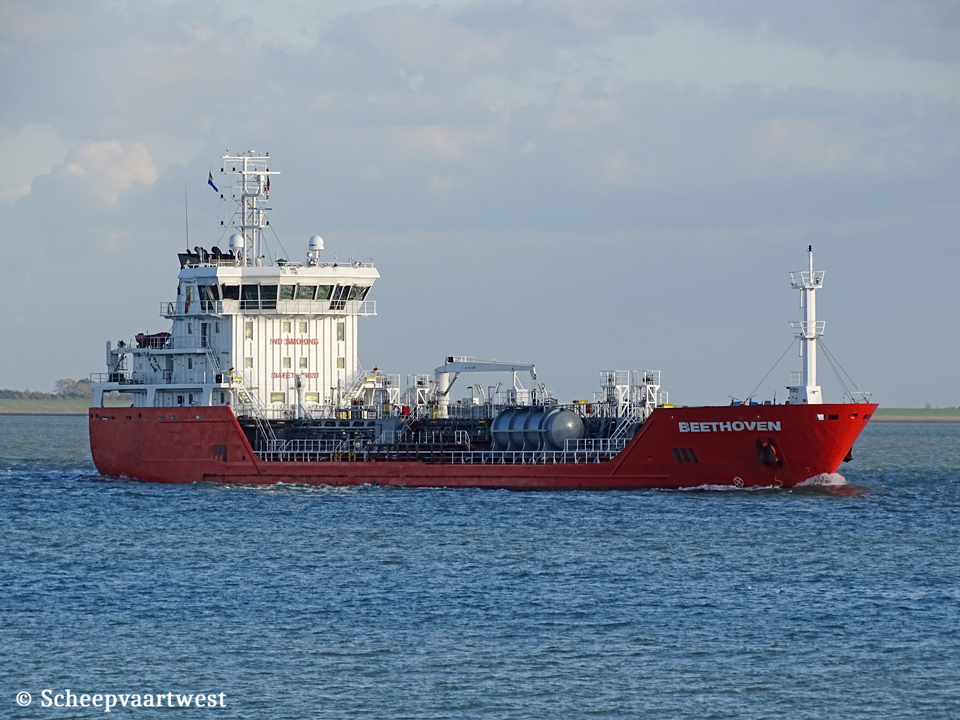

BEETHOVEN |
|
Previous names |
2009 - 2018 Besiktas Galaia |
|
Type |
Chemical tanker/ Oil tanker |
|
IMO-number |
9535539 |
|
Call sign |
5BAE5 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
Previous flags |
2009 - 2014 Turkey - Call sign: TCBG5 2014 - 2018 Malta - Call sign: 9HA2226 |
|
GT |
2.974 t |
|
DWT |
4.115 t |
|
NT |
1.192 t |
|
Length |
98,71 m overall 91,65 m between perpendiculars |
|
Breadth |
14,10 m |
|
Draught |
Summer: 5,79 m |
|
Keel to mast end |
30,88 m |
|
Freeboard |
1.411 mm |
|
Depth |
7,20 m |
|
Speed |
Service: 14,0 knots Max: 16,0 knots |
|
Built |
2009 |
|
Keel laid |
28/07/2008 |
|
Launch date |
24/09/2009 |
|
Date of completion |
04/12/2009 |
|
Builder |
Besiktas Gemi Insaa AS Altinova Yard Turkey |
|
Yard number |
03 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M20C - 4 stroke single acting 9 cylinder 200 x 300 mm combustion engine Mcr 1.710 kW / 2.323 hp at 1.000 rpm Builder: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
2x CHO 0810HBR09 52,10 m² - 10,0 bar 1x CHR 0996HBR09 58,80 m² - 10,0 bar |
|
Generators |
3x Main diesel generatorsets each 456 kVA - 365 kW - 530 hp/ 450 Volt 60 Hz |
|
Emergency generator |
1x Diesel generatorset 124 kVA - 99 kW - 149 hp |
|
Bow thruster |
1x Tunnel thruster 346 kW / 470 bhp, forward |
|
Cargo tank capacity 98% |
Liquid: 4.174 m³ |
|
Number of tanks |
11 + 2 slop tanks |
|
Slop tank capacity |
104 m³ |
|
Number of pumps |
11x Cargo pumps each 150 m³/h |
|
Tank capacities |
Ballast: 1.896 m³ Fuel: 333 m³ |
|
Crew size |
9 |
|
ISM & commercial manager |
GEFO Gesellschaft fur Oeltransporte mbH Raboisen 5 20095 Hamburg Germany |
|
Registered owner |
Beethoven Tanker GmbH & Co., KG Care of GEFO Gesellschaft fur Oeltransporte mbH Raboisen 5 20095 Hamburg Germany |
|
Latest data adjustment |
23 May 2022 |
