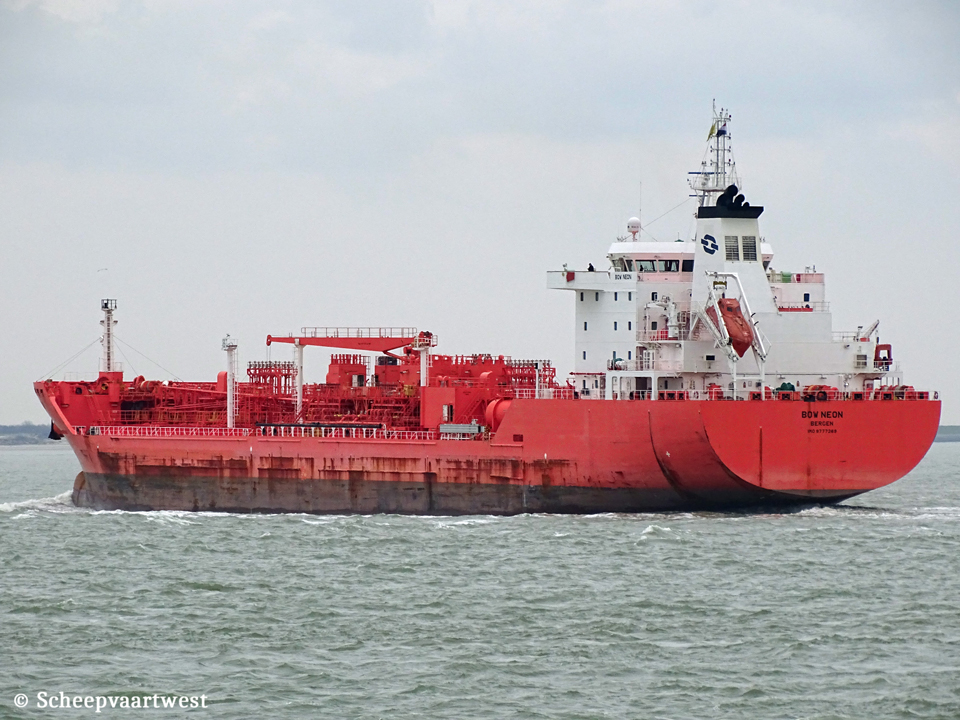

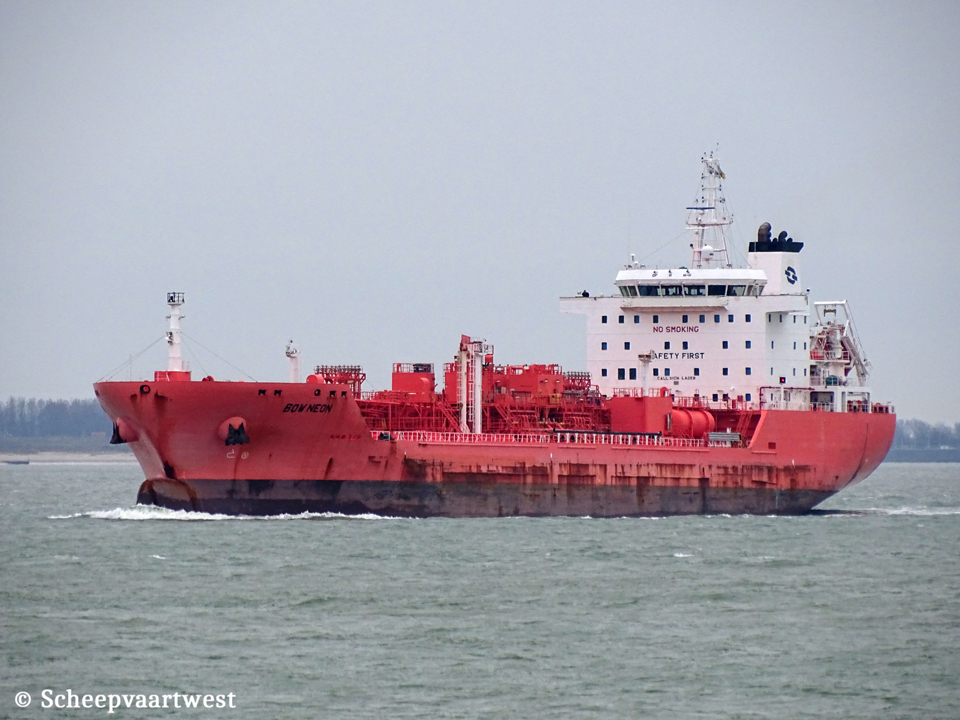

Bow Neon - IMO 9777369

Name

BOW NEON

Previous names

CTG Neon

Type

Chemical tanker

IMO-number

9777369

Call sign

LADE8

Flag

Norway

Port of registry

Bergen

GT

17.139 t

Suez: 17.539 t

DWT

24.786 t

NT

8.365 t

Suez: 14.831 t

Panama: 14.423 t

Light ship

8.182 t

Length

165,18 m overall

154,97 m between perpendiculars

Breadth

27,97 m extreme

26,69 m moulded

Draught

Summer: 10,52 m

Keel to mast end

46,70 m

Depth

13,60 m

Speed

15,5 knots

Built

2017

Keel laid

06/11/2015

Launch date

14/01/2017

Date of completion

14/07/2017

Builder

Avic Dingheng Shipbuilding Co Ltd.(Yangzhou) Dingheng Co., Ltd.

Jiangsu

China

Yard number

AD0050

Hull material

Steel

Hull type

Double bottom with hopper

Double side

Continuous decks

1

Main engine

1x MAN-B&W 5S50ME-B9.3 - 2 stroke 5 cylinder 500 x 2.214 mm combustion engine 6.050 kW / 8.226 hp at 99,0 rpm

Propellers

1x Fixed pitch mono-block propeller

Boilers

1x Auxiliary boiler, exhaust gas heated (Economizer) - Aalborg XW

2x Auxiliary boiler, oil/gas fired (Oil fired) - Aalborg OL

Generators

3x MAN 6L23/30H main diesel generatorsets

Bow thruster

1x 800 kW

Number of tanks

22 + 2 slop tanks

Cargo tanks capacity

27.101 m³

Number of pumps

14x Cargo pumps each 300 m³/h

8x cargo pumps each 220 m³/h

Manifolds

Summer waterline to manifold: 5,69 m

Normal ballast waterline to manifold: 9,19 m

Rail to manifold: 4,60 m

Bow to centre of manifold: 82,60 m

Tank capacities

Ballast: 16.039,22 m³

Anchor equipment

Length: 605,00 m

Diameter: 64 mm

Lifting equipment

1x Hose handling crane - SWL 15,0 t

Commercial manager

Odfjell Chemical Tankers AS

Conrad Mohrsv. 29

Bergen

Norway

ISM manager

Thome Croatia d.o.o.

7.Domobranske Pukovnije 1

23000 Zadar

Croatia

Registered owner

Haikuo Shipping 1711 Pte Ltd., Singapore 068898 - Republic of Singapore

Care of Odfjell Tankers AS

Conrad Mohrs veg 29

5072 Bergen

Norway

Latest data adjustment

26 March 2022
