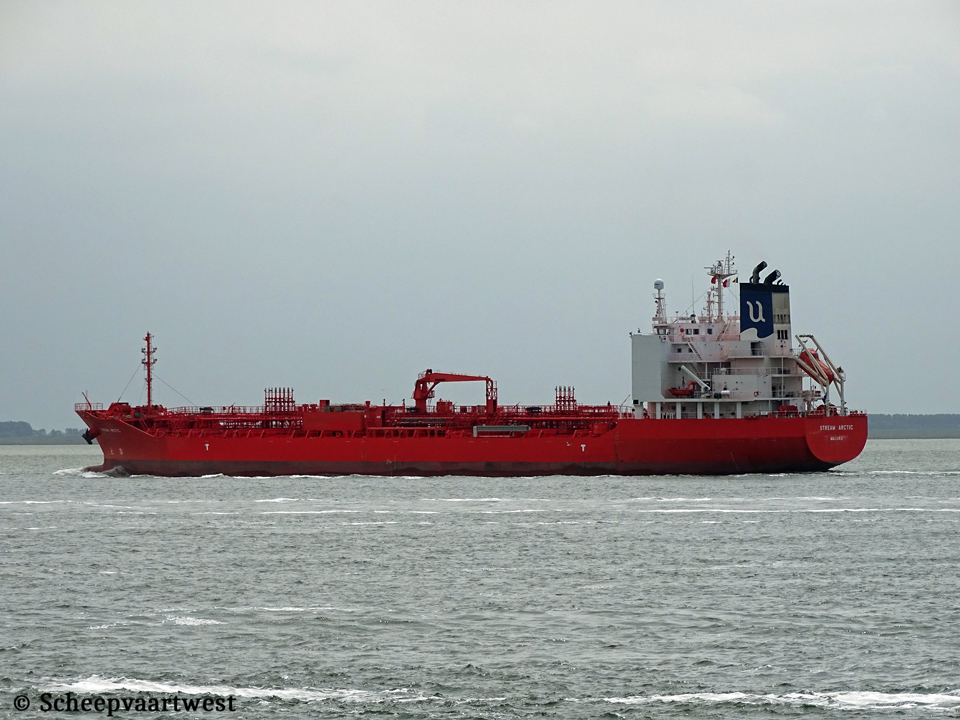

Stream Arctic IMO 9817509 01

Westerschelde 03 June 2019



Name

STREAM ARCTIC

Type

Oil/Chemical carrier

IMO-number

9817509

Call sign

V7HM8

Flag

Marshall Islands

Port of registry

Majuro

GT

12.075 t registered

DWT

19.998,72 t

NT

6.306 t registered

Length

146,50 m overall

Breadth

24,00 m moulded

Draught

Summer: 9,76 m

Moulded L x B x D

138,00 x 24,00 x 13,10 m

Registered L x B x D

138,44 x 24,00 x 13,10 m

Keel to mast end

38,57 m

Freeboard

Summer: 3.374 mm

Depth

13,10 m moulded

Speed

14,5 knots

Built

2018

Keel laid

31/08/2015

Launch date

20/10/2017

Date of completion

22/02/2018

Builder

Fukuoka Shipbuilding Co., Ltd. Nagasaki Yard

Nagasaki

Japan

Yard number

N-2078

Hull material

Steel

Hull type

Double hull

Main engine

1x Makita-Mitsui/MAN-B&W 6S40ME-B9 - 2 stroke single acting 6 cylinder 400 x 1.770 mm combustion engine 4.620 kW / 5.792 hp at 124,0 rpm

Manufacturer: Makita Corporation, Asahimachi - Japan

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 390 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 9,3 bar

Evaporation: 16,16 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

4x Generatorsets total 2.165 kVA - 440-220 VAC/60 Hz

Number of tanks

20

Cargo tank capacity

Liquid: 22.270,18 m³

Number of pumps

12x Cargo pumps each 300 m³/h

8x Cargo pumps each 200 m³/h

Tank capacities

Fuel oil: 874,09 m³

Fresh water: 376,26 m³

Commerical manager

Utkilen AS

Strandgaten 197

5004 Bergen

Norway

ISM manager

Diamond Ship Management Pte

31-01, mTower, 460, Alexandra Road

Singapore 119963

Republic of Singapore

Previous owners

Stream Shipping AS

Care of Utkilen AS

Strandgaten 197

5004 Bergen

Norway

Latest data adjustment

11 October 2021
