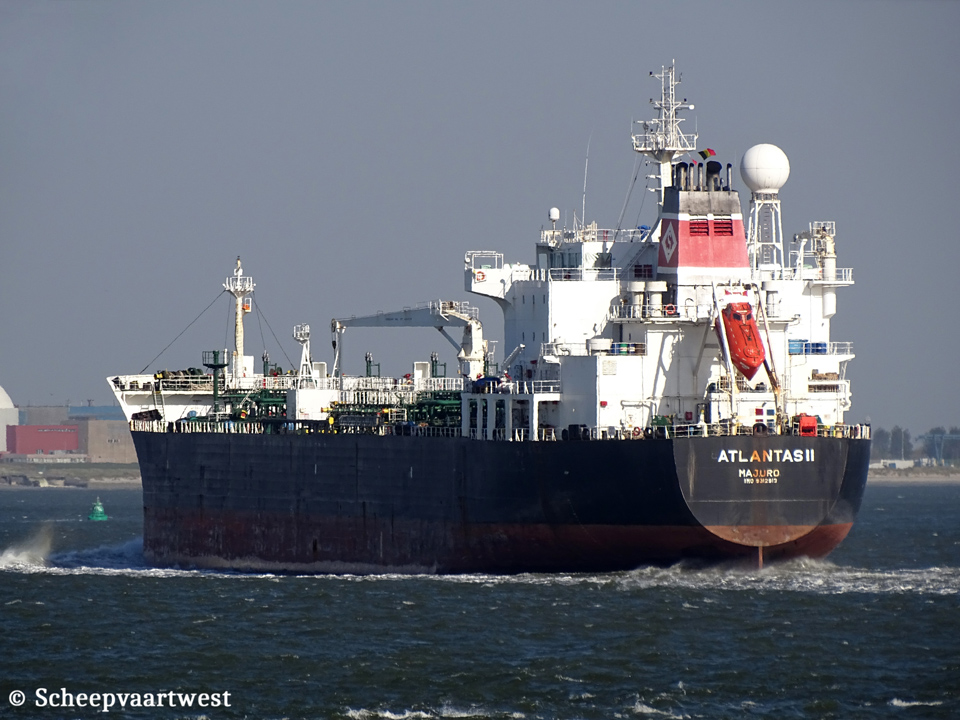

Atlantas II IMO 9312913 01

Westerschelde 20 April 2020



Name

ATLANTAS II

Previous names

Build as: 2006 Atlantis

04/2006 - 2017 British Ensign

Type

Oil product tanker - Handysize

IMO-number

9312913

Call sign

V7JW4

Flag

Marshall islands

Port of registry

Majuro

Previous flags

2006 - 2017 Isle of Man (UK), Douglas - Call sign: MMER9

GT

23.270 t

DWT

Summer: 36.713 t

NT

9.925 t

Length

184,00 m

Breadth

27,40 m

Draught

Summer: 11,32 m

Keel to mast

54,51 m

Freeboard

Summer: 5.913 mm

Depth

17,20 m

Speed

Service: 13,5 knots

Max: 15,5 knots

Built

2006

Keel laid

05/12/2005

Launch date

07/03/2006

Delivery date

26/04/2006

Builder

Hyundai Mipo Dockyard Co. Ltd.

Ulsan

South Korea

Yard number

312

Hull material

Steel

Hull type

Double hull

Movable bulkheads

Non tight: 2

Water tight: 17

Oil tight: 2

Continuous decks

1

Main engine

1x Hyundai/MAN-B&W 6S50MC - 6 cylinder combustion engine 9.480 kW / 12.900 bhp at 127,0 rpm

Propellers

1x Mono-block fixed pitch propeller

Manufacturer: Hyundai Heavy Industries Co., Ltd.

Boilers

1x Auxiliary boiler

1x Exhaust gas boiler - 12,0 bar

Manufacturer: Kangrim

Generators

2x HFC6 508-14K-EH diesel generatorsets each 900 kW

1x HFC6 506-14K-EH diesel generatorset 740 kW

Emergency generator

1x Diesel generatorset 200 kW

Bow thruster

1x 882 kW

Number of tanks

12

Cargo tank capacity 98%

40.600 m³ ex slop tanks

Number of slop tanks

2

Slop tank capacity 98%

1.034 m³

Segregation

Double valve segregation: 7 groups

Pumps

10x Framo Deepwell hydraulic driven, submerged centrifugal cargo pumps each 500 m³/h

2x Framo Deepwell hydraulic driven, submerged centrifugal cargo pumps each 300 m³/h

2x Framo Deepwell hydraulic driven, submerged centrifugal cargo pumps each 150 m³/h

2x Ballast pumps each 750 m³/h

Manifold

Distance bow to mid-point manifold: 92,63 m

Distance main deck to centre manifold: 1.940 mm

Distance manifolds to ship's rail: 4.600 mm

Tank capacities

Ballast: 17.511 m³

Fuel: 1.202 t

Anchor equipment

Length: 605,00 m

Diameter: 66

Lifting equipment

1x Deck crane - SWL 10,0 t

1x Provision crane - SWL 2,0 t

Crew size

30

Manager

BP Shipping Sunbury On Thames

United Kingdom

Owner

Capital Ship Management Corporation

3, Iasonos Street 18537 Piraeus

Greece

Registered owner

Shipping Rider Co.

Care of SB Shipping Ltd. Building G

Chertsey Road

Sunbury-on-Thames TW16 7LN

United Kingdom

Latest data adjustment

23 March 2021
