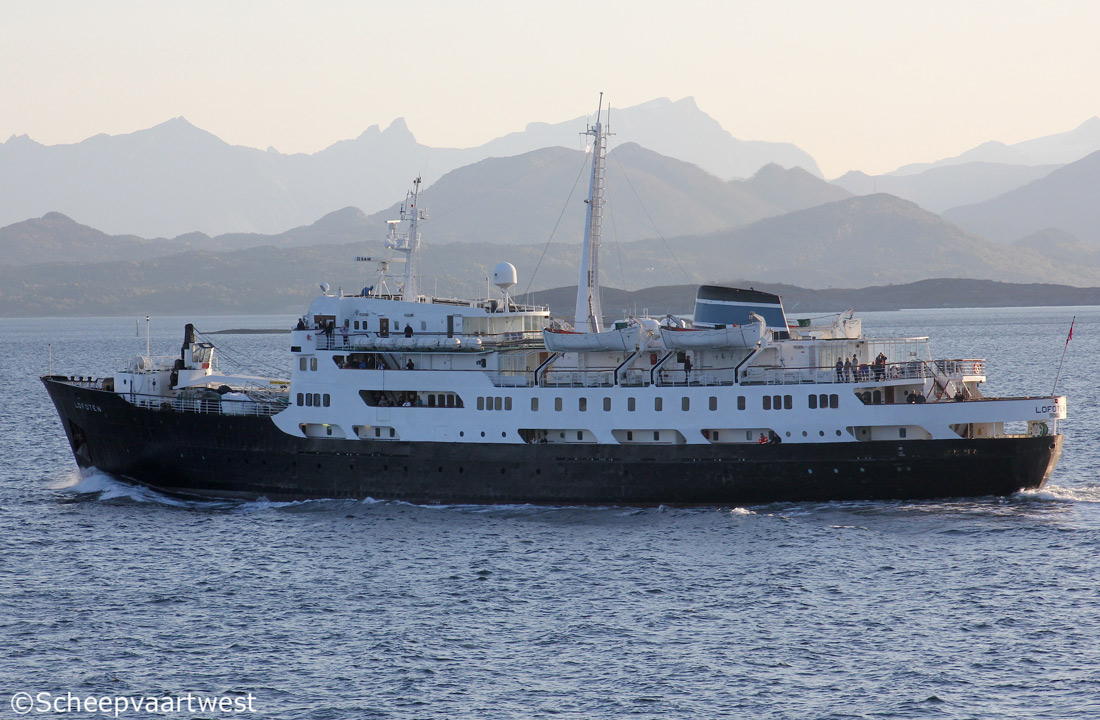

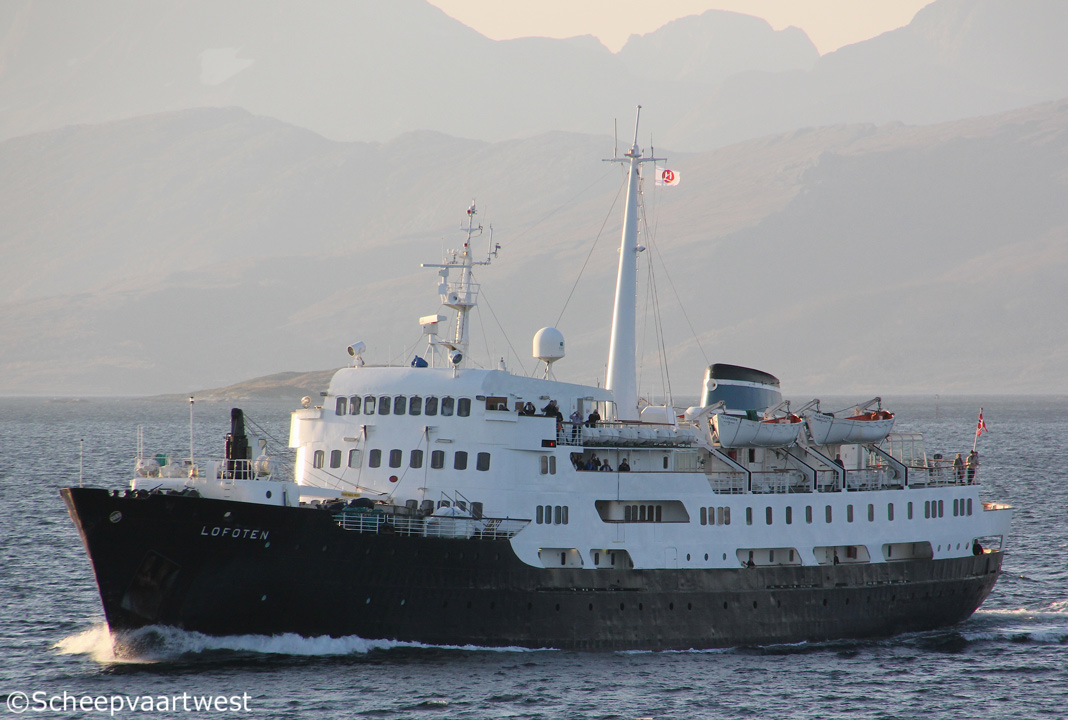

Vegafjoren, Norway 29 September 2017 |
 |
| Vegafjoren 29/09/17 |
|
Name |
LOFOTEN |
|
Type |
Passengers ship / Cargo ship / Ferry |
|
IMO-number |
5424562 |
|
Call sign |
LIXN |
|
Flag |
Norway |
|
Port of registry |
Tromsø |
|
GT |
2.621 t |
|
DWT |
Summer: 671 t |
|
NT |
1.099 t |
|
Length |
87,41 m overall 79,54 m between perpendiculars |
|
Breadth |
13,28 m |
|
Draught |
5,00 m |
|
Depth |
7,35 m |
|
Speed |
Service: 16,0 knots |
|
Routes |
03.1964 - 02.2002 Bergen - Kirkenes |
|
Built |
1964 Refit: 1980/1985/2004 |
|
Launch date |
07.09.1963 |
|
Date of completion |
28.02.1964 |
|
Builder |
Akers Mekaniske Verksted AS |
|
Yard number |
547 |
|
Hull material |
Steel |
|
Bulkheads |
Transverse: 8 |
|
Main engine |
1x B&W DM 742 VT2BF.90 - 2 stroke 7 cylinder 420 x 900 mm diesel engine 2.447kW / 3.327 bhp at 200 rpm |
|
Propellers |
1x Liaaens type S90/4 controllable pitch propeller - 4 blades |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated 1x Auxiliary boiler, oil/gas fired |
|
Generators |
2x BMV RTGB-3 main diesel generatorsets each 230 kVA 1x Volvo D30A-MT main diesel generatorset 700 kVA |
|
Emergency generator |
1x Volvo Penta TAMD 103 A diesel generatorset |
|
Cargo space |
Hold1: 307,50 m³ Hold 2: 444;80 m³ Total: 752,30 m³ whereof 92 m³ reefer |
|
Number of passengers |
400 |
|
Number of bunk beds |
155 |
|
Passengers deck |
4 |
|
Tank capacities |
Fuel oil: 116,36 t Diesel oil: 35,95 t Lub oil: 24,55 t Fresh water: 150,81 t Ballast: 227 m³ |
|
Lifting equipment |
1x Crane - SWL 3,0 t |
|
Crew |
28 |
|
Manager |
Hurtigruten AS |
|
Previous operator |
02.1994 - 01.1988 Vesteraalens Dampskibsselskab AS (VDS), Stokmarknes - Norway |
|
Registered owner |
Hurtigruten AS |
|
Latest data adjustment |
07 January 2018 |
