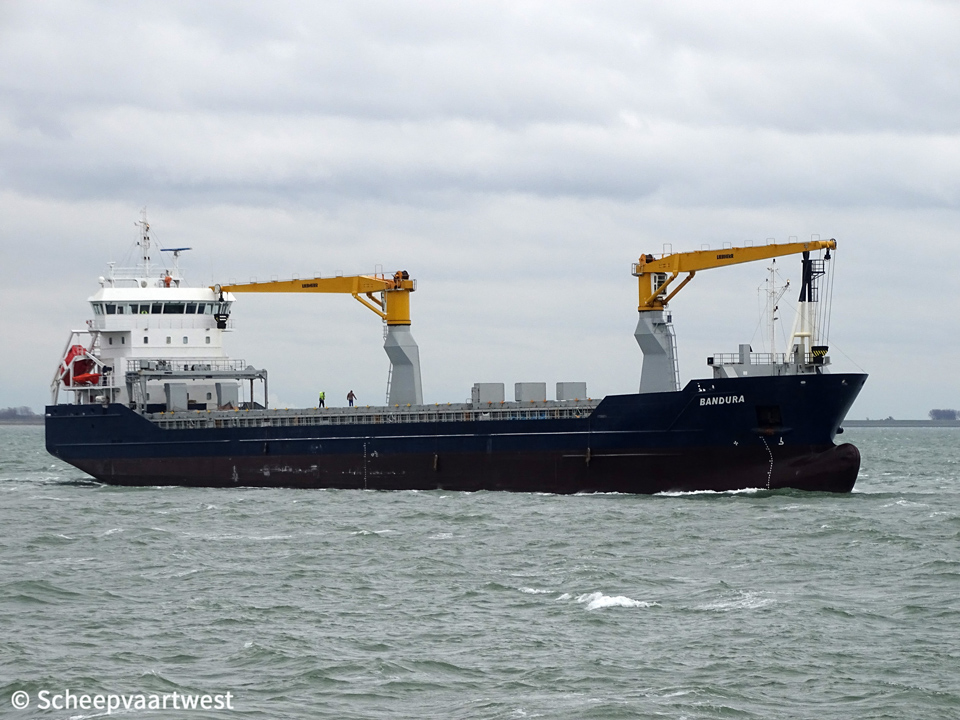

Bandura 01

Westerschelde 07 November 2018

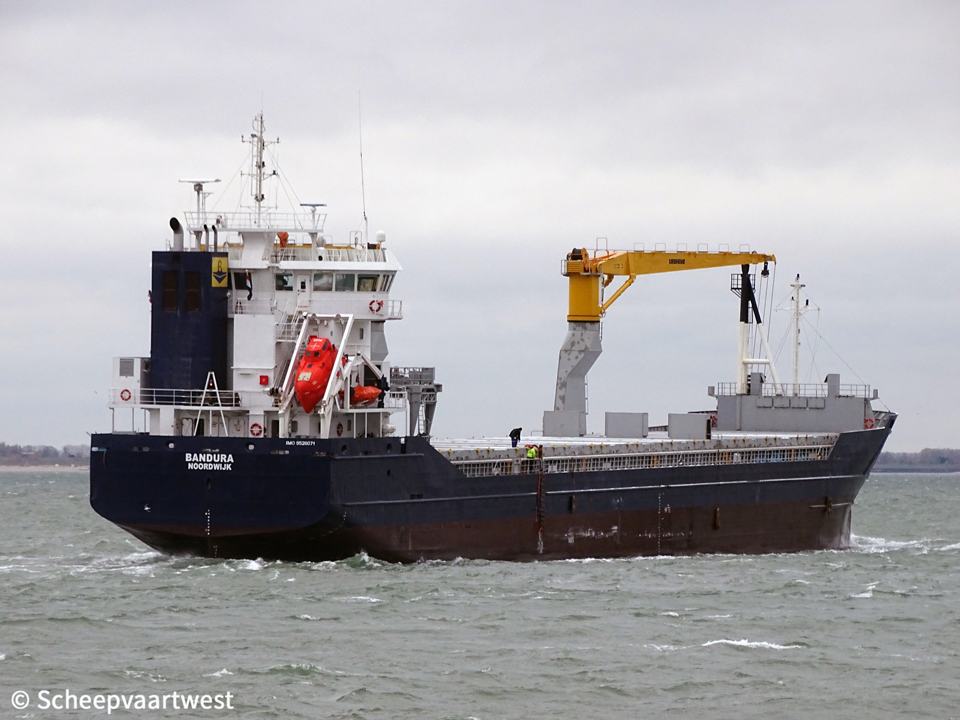

Bandura 02
Westerschelde 07/11/18













Name

BANDURA

Type

General cargo ship - Equipped for dangerous goods - Explosives and nuclear cargoes - Strengthened for heavy cargo - Combifreighter 8200

Basic functions

Transport of bulk, steel coils, containers, forest products, general cargo

IMO-number

9526071

Call sign

PCEE

Flag

The Netherlands

Port of registry

Noordwijk

GT

5.132t

DWT

8.305 t

NT

2.949 t

Number of 20ft containers

In hold: 171

On deck: 165

Total: 336

Length

118,14 m overall

115,70 m between perpendiculars

Breadth

15,90 m moulded

16,13 m extreme

Draught

Summer: 7,21 m

Ballast: 4,60 m

Depth

8,80 m moulded

Speed

13,4 knots

Built

2010

Launch date

05/06/2009

Date of completion

11/12/2010

Builder contractor

ATVT Sudnobudivnyi Zavod Zaliv
Kerch
Ukraine

Yard number: 01505

Builder completion

Scheepswerf Damen
Bergum
The Netherlands

Yard number: 9411

Hull material

Steel

Movable bulkheads

2x Divisible grain bulkheads, 10 positions, also used as tween deck. Handled by the hatch cover crane

Continuous decks

1

Main engine

1x MaK 9M25-C - 4 stroke single acting 9 cylinder 255 x 400 mm combustion engine 2.970 kW / 4.035 bhp at 750 rpm

Propellers

1x Controllable pitch propeller

Shaft generator

1x 435 kVA, 400 Volt - 50 Hz

Generators

2x Main diesel generatorsets 435 kVA, 400 Volt - 50 Hz

Emergency generator

1x Diesel generatorset 120 kVA, 400 Volt - 50 Hz

Bow thruster

1x E-driven, fixed pitch - 300 kW

Number of holds

1

Cargo hold capacity

Hold 1: 6.645 m³ (234.665 ft³)

Hold 2: 3.865 m³ (136.490 ft³)

Total: 10.510 m³ (371.155 ft³)

Number of hatches

13

Tween deck panels

11

Hatch cover type

Pontoon type cargo hold hatches

Deck lay-out and equipment

2x Bow anchor winches, each with one warping head

2x Mooring winches aft ship, each with one warping head

1x Gangway

1x Free fall life boat

1x Rescue boat with davit

Electric driven hold ventilation, 10 changes/h

Lashing eyes in hold

Bollards on outside of coaming

Tank capacities

HFO (IFO 380): 491 m³

Gas oil: 52 m³

Lub oil: CLEAN 26 m³

Dirty oil: 9 m³

Sludge: 19 m³

Sewage: 50 m³

Potable water: 52 m³

Ballast water: 2,946 m³

Lifting equipment

1x Hatch cover gantry crane

Cargo gear

2x Cargo handling cranes - SWL 40,0 t each - /reach 24,00 m

Accommodation

For captain, officers and crew for a total of 11 persons with heating, ventilation and air-conditioning

Manager

Noordwijk Ocean Services BV
Zwarteweg 39
2201 AA Noordwijk
The Netherlands

Registered owner

Bandura Shipping CV
Zwarteweg 39
2201 AA Noordwijk
The Netherlands

Latest data adjustment

17 August 2019
