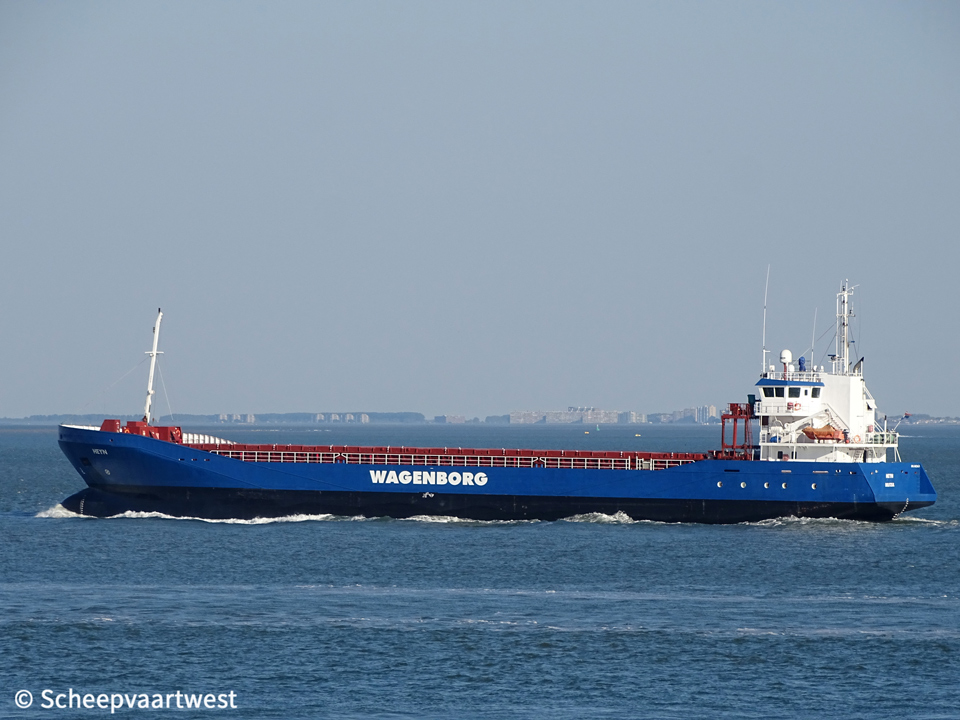

Westerschelde 23 April 2018 |
 |
|

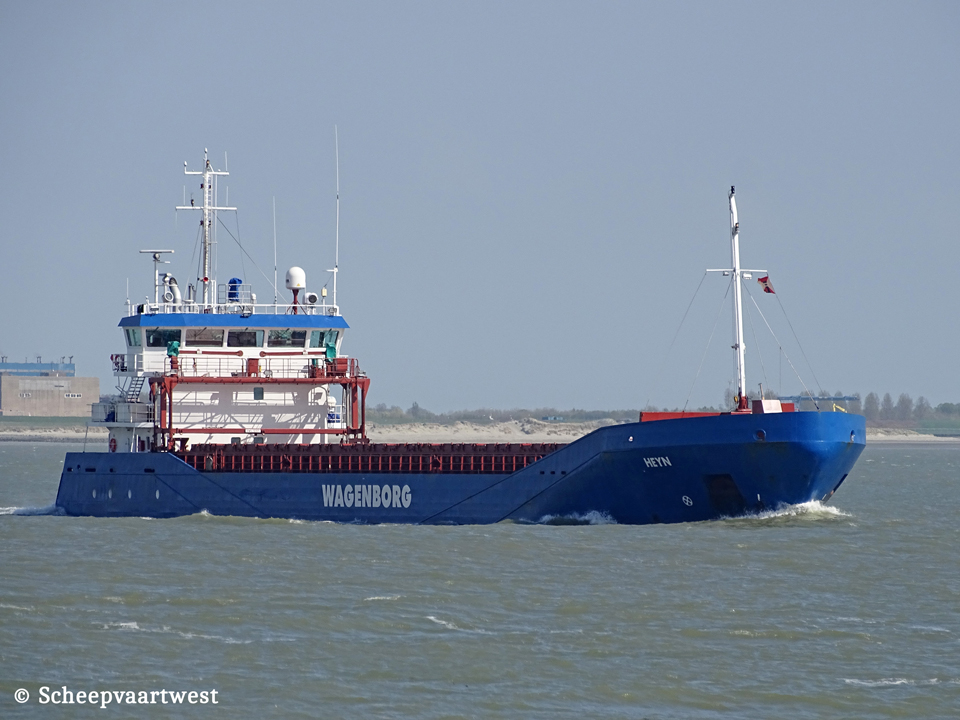

| Westerschelde 15/05/19 | |
|
Name |
HEYN |
|
Previous names |
12/2008 - 09/2017 Yvonne |
|
Type |
General cargo ship - Heavycargo - Equipped for carriage of containers |
|
IMO-number |
9423671 |
|
Call sign |
PDFP |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
Previous flags |
12/2008 - 11/2016 Antigua & Barbuda, St. John’s - Call sign: V2EB5 11/2016 - 09/2017 Germany, Hamburg - Call sign: DFYN2 |
|
GT |
2.528 t |
|
DWT |
Summer: 3.560 t |
|
DWCC |
Summer: 3.350 t |
|
NT |
1.053 t |
|
Number of 20ft containers |
157 |
|
Length |
89,99 m overall 84,95 m between perpendiculars |
|
Breadth |
12,58 m extreme |
|
Draught |
Summer: 5,31 m Winter: 5,20 m |
|
Air draft |
22,75 m in ballast |
|
Freeboard |
2.497 t |
|
Depth |
8,00 m moulded |
|
Speed |
13,0 knots Service: 10,5 knots |
|
Built |
2008 |
|
Keel laid |
23/11/2007 |
|
Launch date |
12/07/2008 |
|
Delivery date |
19/12/2008 |
|
Builder casco |
Shipyard Leda d.o.o. Korcula Croatia |
|
Builder completion |
Scheepswerf Pieters BV Kampen The Netherlands |
|
Yard number |
1211 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä Type 9L20 - 4 stroke single acting 9 cylinder 200 x 280 mm combustion engine 1.800 kW/ 2.446 bhp at 1.600 rpm Build: 16/07/2008 Builder: Wärtsilä Finland Oy |
|
Propellers |
1x Controllable pitch propeller - aft at 190 rpm |
|
Shaft generator |
1x 390 kVA - 312 kW |
|
Generators |
1x Main diesel generatorset 225 kVA - 180 kW - 245 hp |
|
Emergency generator |
1x Diesel generatorset 94 kVA - 75 kW - 102 hp |
|
Bow thruster |
1x 250 kW |
|
Number of holds |
1 59,20 x 10,30 x 8,15 m |
|
Cargo hold capacity |
Grain/Bale: 174.036 ft³ / 4.929 m³ |
|
Hold ventilation |
Electrical ventilation 6x air changes per hour. Hold is fitted with dehumidifier system |
|
Number of hatches |
1 59,20 x 10,30 m |
|
Hatch type |
Coops & Nieborg pontoon hatches |
|
Tank capacities |
HFO: 244 m³ MGO: 34 m³ Water ballast: 1.466 m³ Fresh water: 25 m³ |
|
Cargo gear |
Gearless |
|
Manager |
Wagenbirg Shipping BV Marktstraat 10 9934 CK Delfziil The Netherlands |
|
Registered owner |
Heyn BV Delfzijl The Netherlands |
|
Previous names & owners |
12/2008 - 11/2016 Yvonne - André Wieczorek Schiffahrtsverwaltung, Hamburg - Germany 11/2006 - 09/2017 Yvonne - Schiffahrtsgesellschaft m.s. 'Yvonne' K.G. (A. Wieczorek), Delfzijl - The Netherlands 09/2017 - 03/2021 Heyn - Heyn B.V., Delfzijl, Groningen - The Netherlands |
|
Latest data adjustment |
27 April 2023 |
