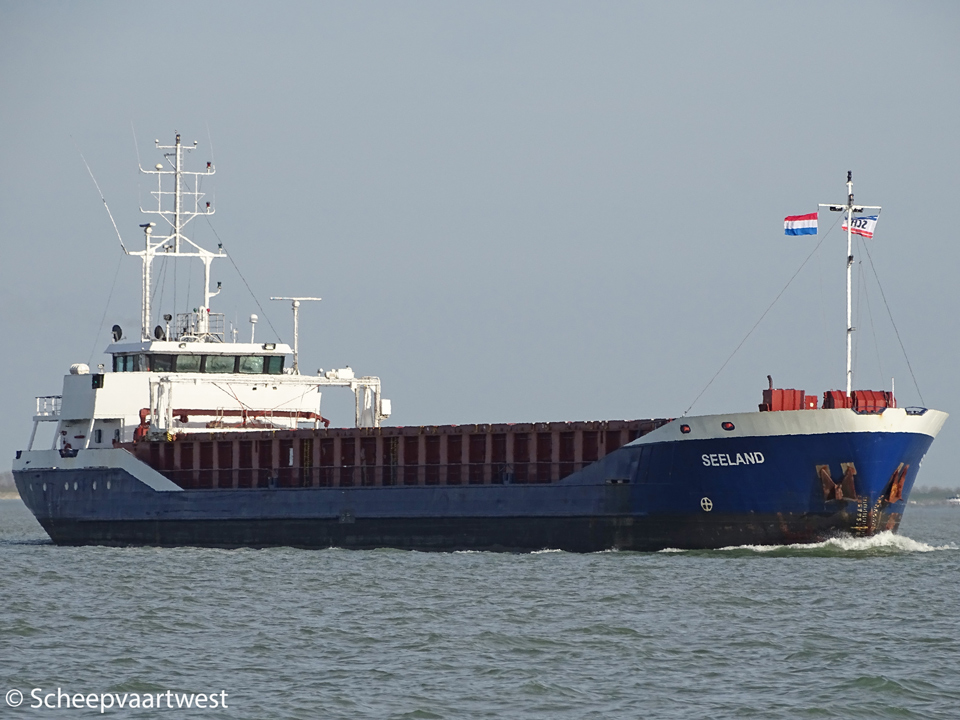

Westerschelde 30 March 2017 |
|
Name |
SEELAND |
|
Previous names |
03/2001 - 05/2005 Sagitta 05/2005 - 12/2008 Nordfjord 12/2008 - 02/2015 Maimiti |
|
Type |
Multi-purpose cargo ship - heavycargo |
|
IMO-number |
9228930 |
|
Call sign |
DFTZ |
|
Flag |
Germany |
|
Port of registry |
Stade |
|
Previous flags |
03/2001 - 05/2005 The Netherlands, Groningen - Call sing: PBBQ 05/2005 - 12/2008 Netherlands Antilles, Willemstad - Call sign: PJUA 12/2008 - 02/2015 The Netherlands, Delfzijl - Call sing: PBIJ |
|
GT |
2.224 t |
|
DWT |
Summer: 3.132 t |
|
NT |
1.267 t |
|
Number of 20ft containers |
151 |
|
Length |
87,99 m overall 83,78 m between perpendiculars |
|
Breadth |
12,50 m |
|
Draught |
Max: 4,64 m |
|
Freeboard |
1.180 mm |
|
Depth |
6,00 m moulded |
|
Speed |
11,0 knots |
|
Built |
2001 |
|
Keel laid |
01/04/2000 |
|
Launch date |
09/03/2001 |
|
Date of completion |
29/03/2001 |
|
Builder |
Scheepswerf & Machinefabriek Barkmeijer Stroobos B.V. |
|
Yard number |
295 |
|
Hull material |
Steel |
|
Movable bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x Mak 8M20- 4 stroke single acting 8 cylinder 200 x 300 mm combustion engine 1.000 KW / 1.359 bhp at 900 rpm Built: 2000 Manufacturer: Maschinenbau Kiel A.G., Kiel, German Federal Republic |
|
Gearbox |
1x Reintjes WAF-1142 3,909:1 |
|
Propellers |
1x Screw propeller solid - aft at 230 rpm 5 Blades - Diameter: 2.350 mm |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Generators |
2x Valmet 620-DSG - 6 cylinder 108 x 120 mm diesel engines each 110 kW at 1.500 rpm coupled with Stamford UCM-274E23 generator each 120 kVA Built: 2000 |
|
Emergency generator |
1x Valmet 320-DSG - 3 cylinder 108 x 120 mm diesel engine 53 kW at 1.500 rpm coupled with Stamford UCM-224G23 generator 63 kVA Built: 2000 |
|
Compressed air receivers |
2x Compressed air receivers 30,0 bar |
|
Bow thruster |
1x Veth VT-150 - 200 KW |
|
Number of holds |
1 61,80 x 10,20 x 7,43 m |
|
Hold capacity |
Grain: 4.636 m³ |
|
Number of hatches |
1 61,80 x 10,20 m |
|
Hatch type |
Pontoon |
|
Max. permitted loads |
Tanktop: 12,0 t/m² |
|
Tank capacities |
Ballast water: 1.466 m³ Potable water: 58 m³ Fuel: 176 m³ Lub oil: 3,0 m³ |
|
Lifting equipment |
1x Gantry crane |
|
Manager |
Karl Meijer Shipping International G.m.b.H. & Co. KG |
|
Previous managers |
03/2001 - 02/2015 Wagenborg Shipping B.V., Delfzijl - The Netherlands |
|
Registered owner |
Karl Meijer Shipping International G.m.b.H. & Co. KG |
|
Previous names & owners |
03/2001 - 05/2005 Sagitta - D. van Eerden, Groningen - The Netherlands 05/2005 - 07/2007 Nordfjard - C.V. ms Nordfjord, Willemstad (NA), Netherlands Antilles 07/2007 - 12/2008 Nordfjard - Fonnes Shipping A/S, Fonnes - Norway 12/2008 Maimiti - Dekker Scheepvaart C.V, Delfzijl - The Netherlands |
|
Latest data adjustment |
29 January 2019 |
