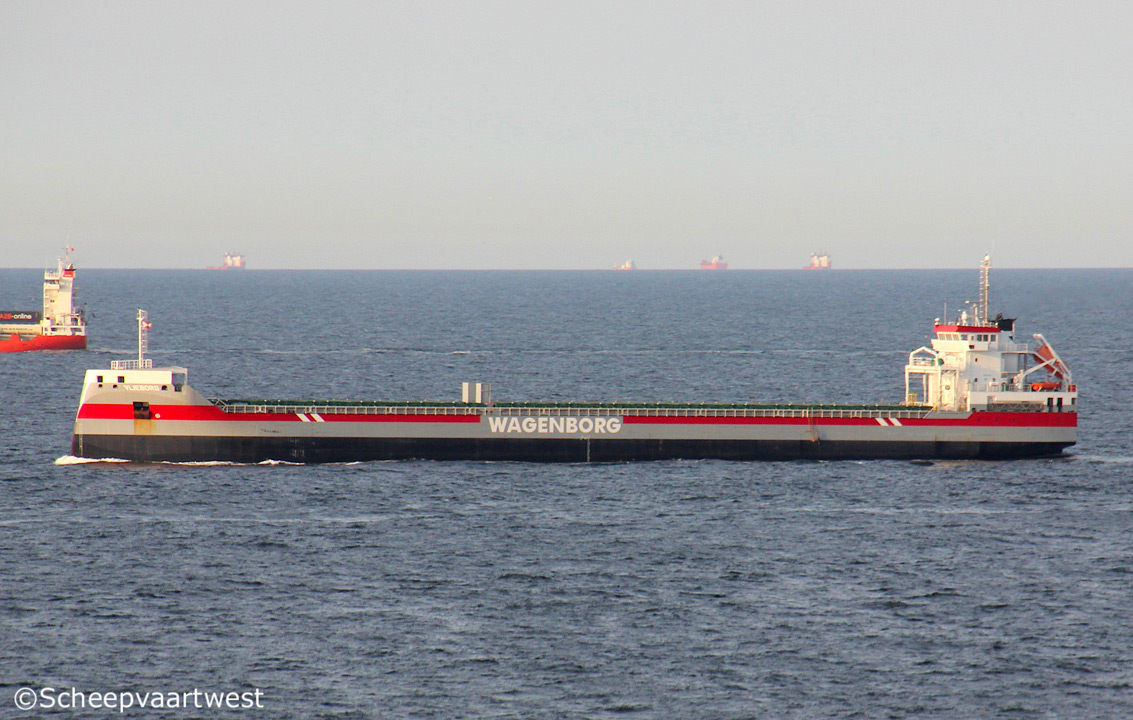

Vlieborg 02

North Sea 07 July 2018

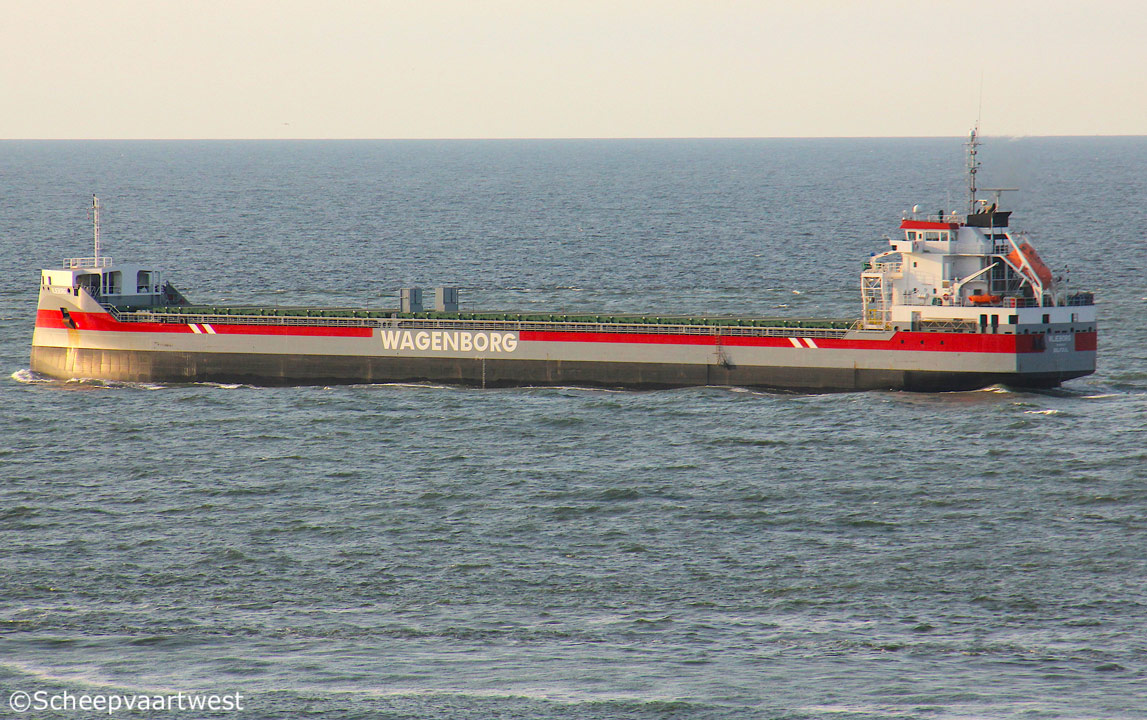

Vlieborg 01
North Sea 07/07/18



Name

VLIEBORG

Type

General cargo ship - heavycargo - Container ship

IMO-number

9554781

Call sign

PCIX

Flag

The Netherlands

Port of registry

Delfzijl

GT

7.367 t

DWT

Summer: 11.850 t

NT

3.688 t

Length

142,65 m overall

139,43 m between perpendiculars

Breadth

15,87 m moulded

Draught

Summer: 7,73 m

Winter: 7,57 m

Air draft

30,60 m in ballast

Freeboard

3.071 mm

Depth

10,78 m moulded

Speed

14,7 knots

Built

2012

Keel laid

04/06/2008

Launch date

29/08/2012

Date of completion

28/09/2012

Builder

Scheepswerf Ferus Smit B.V.
Westerbroek
The Netherlands

Yard number

407

Hull material

Steel

Main engine

1x Mak 9M25 - 4 stroke 9 cylinder 255 x 400 mm combustion engine 2.970 kW / 4.035 bhp at 750 rpm

Manufacturer: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1x Controllable pitch propeller - aft at 128 rpm

Diameter: 4.000 mm / 4 blades

Boilers

1x CHO 12,70 m² - 7,5 bar

Shaft generator

1x 819 kVA - 655 kW

Generators

2x Diesel generatorsets each 415 kVA - 332 kW - 512 hp

1x Diesel generatorset 155 kVA - 124 kW - 512 hp

Bow thruster

1x 600 kW

Number of holds

2x Both holds are open hatch, no understow, double skinned.

Holds are fully box and square except box structures in fore and aft part due to vessel's outer shape

Hold 1: 41,00 x 13,20 x 10,78 m

Hold 2: 63,63 x 13,20 x 10,78 m

Total capacity of holds

Grain/Bale: 14.258 m³ / 503.821 ft³

Hold ventilation

8x Air changes per hour basis empty holds

Number of hatches

2

Hatch 1: 41,00 x 13,20 m

hatch 2: 63,63 x 13,20 m

Hatch type

Coops & Nieborg pontoon hatches

Tween decks

Vessel is equipped with 2 movable bulkheads, that can be used as 4 tween-decks

Max permitted load

Tanktop: 15,0 t/m²

Tween deck: 3,50 t/m²

Weatherdeck: 1,75 t/m²

Tank capacities

HFO: 530 m³

MGO: 39,8 m³

Water ballast: 5.300 m³

Fresh water: 53 m³

Cargo gear

Gearless

Manager

Wagenborg Shipping B.V.
Marktstraat 10
9934 CK Delfzijl
The Netherlands

Owner

C.V. m.s. Vlieborg
Delfzijl
The Netherland

Registered owner

SVO Vlieborg B.V.

Latest data adjustment

08 August 2018
